Home > Products > SPD(surge protection device) > Rack type network surge protector
Rack type network surge protector
- 10000 Set / Sets per Month
- TianJing Shanghai Qingdao
- T/T L/C D/P D/A Credit Card PayPal
-
Weak current device surge protector for telephone series
-
Telephone series weak current device surge protector
-
Network serious electronic device of surge protection device
-
High quality network series surge arrester
-
Ultra thin control series two line lightning current and surge protector
-
100KA surge protection device for wind power special lightning protection device
Product Details
| Place of Origin: | Shaanxi, China | Brand Name: | YS | Model Number: | LET-5A-48 |
Product Description

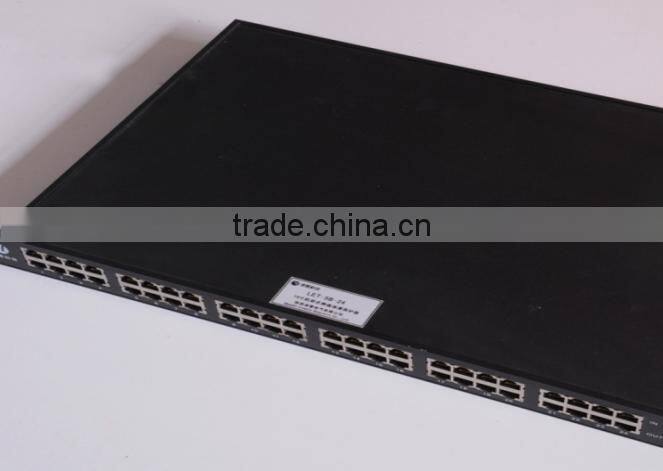

Rack type network surge protector
Parameter
Product number | LET-5A-48 |
Max Voltage Uc | 6V |
Protection level Up | ≤15KV |
Nominal discharge current(8/0.02mS) In | 10KA |
Maximum discharge current(8/0.02m S) Imax | 20KA |
System rate Voltage Un | 5v |
TVS quantity | 1 |
LET-5A-48 | |
Coordination mode | Diode bridge |
Maximum frequency of use | 100Mbit |
insertion loss | 0.1dB |
Connection and installation | |
Recommend the wire diameter | 0.5-2.5 |
Install method | DIN35 Rail Mounting |
Installed environment | No significant vibration and shock |
protection class | IP20 |
Elevation | ≤4000m |
Relative humidity | 30%~90% |
| Protection line number | 1,2,3,6 custom |
| Interface mode | Rj45 |
| Shell material | Aluminium alloy |
Please kindly contact us for more details!
