ISO standard 1-12'' inch high pressure water hose layflat hose pipe
- 50000 Meter / Meters per Month
- China main port
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | sanjiang | |
| Model Number | 1-12inch | Material | Other, PVC/ PVC-nitrile rubber/TPU | |
| Specification | 1-12inch | Length | According to your request, Max 200m per roll | |
| Thickness | 1.2-3.5mm, 1.2mm -3.5mm | Standard | ISO |
Product Description
ISO factory 1-12'' inch high pressure water hose layflat hose pipe
Inner Diameter | Wall Thickness(mm) | ||||||||
MM |
Inch
| 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
25.4 | 1 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
38.1 | 1 1/2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
50.8 | 2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 3 |
63.5 | 2 1/2 | 1.4 | 1.7 | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3.2 |
76.2 | 3 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
101.6 | 4 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
127 | 5 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | |
152.4 | 6 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.2 | |
203.2 | 8 | 1.8 | 2.3 | 2.5 | 2.8 | 3 | 3.2 | ||
254 | 10 | 2 | 2.3 | 2.8 | 3 | 3.2 | |||
304.8 | 12 | 2.4 | 2.8 | 3 | 3.2 | 3.4 | |||

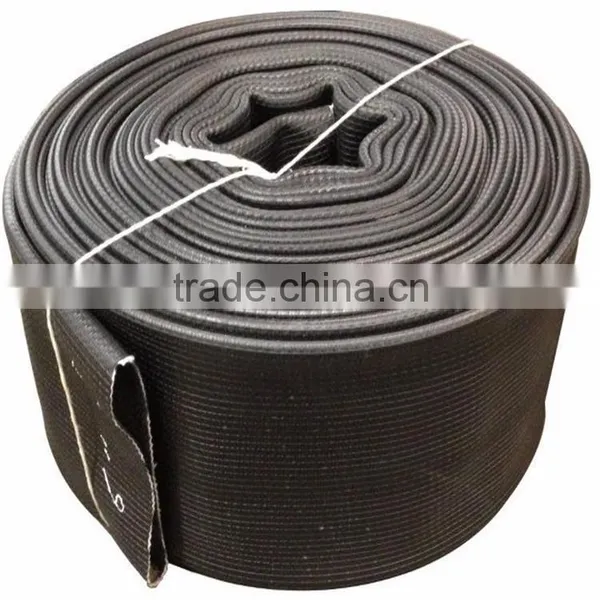

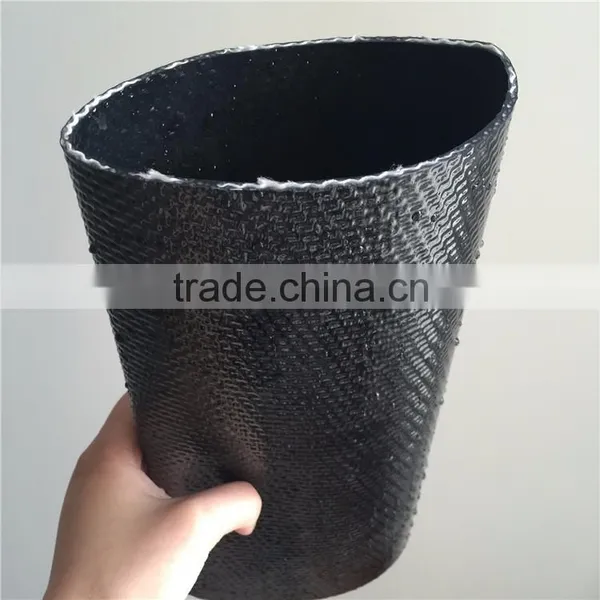

Photos
TPU (thermoplastic polyurethane) is welcomed by the customers because of its superior performance and the concept of environmental protection. TPU not only has excellent high tension, high tensile strength, toughness and resistance to aging properties, and is a kind of mature environmental protection material.
Main Features: water resistance, UV resistance,.oil resistance, wear resistance, mold resistance.
SPECIFICATION
| Inner Diameter | Wall Thickness(mm) | ||||||
| MM | Inch | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
| 101.6 | 4 | 2 | 2.66 | 3.2 | 3.6 | 4.2 | 5 |
| 127 | 5 | 2.1 | 3.2 | 3.4 | 4.3 | 5 | 5.7 |
| 152.4 | 6 | 2.4 | 3.2 | 4 | 5 | 5.8 | 6.5 |
| 203.2 | 8 | 2.8 | 3.7 | 4.5 | 5.2 | 6 | |
| 254 | 10 | 3 | 4 | 5 | 5.8 | 6.7 | |
| 304.8 | 12 | 3.3 | 4.4 | 6 | 7.5 | ||
1. Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll.
Before send you right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
3. MOQ
Usually our MOQ is 1000m, but for first cooperation we also accept little order, so any order is welcomed.
4.Shipping and delivery
We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.
