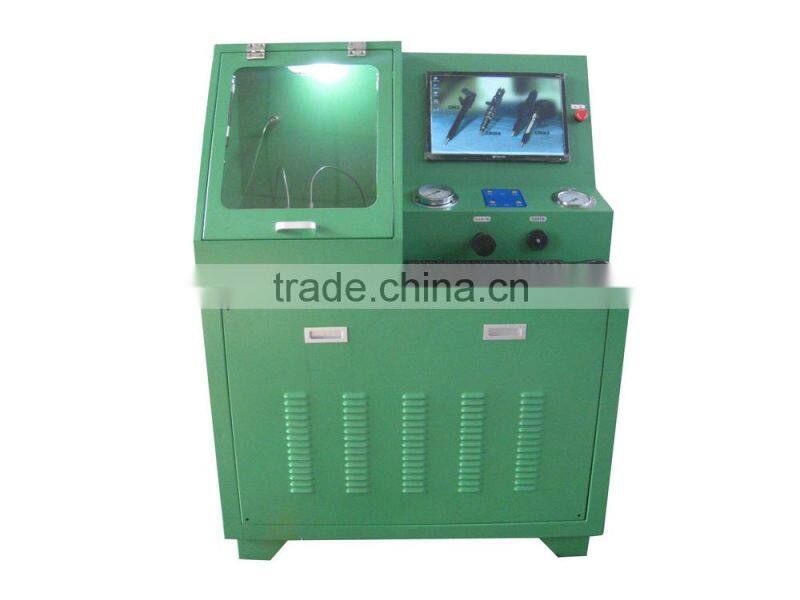

From Haishu High Quality Test Heui Injector Test Bench for CAT C7/C9,CAT 3408 and so on HEUI Injectors

From Haishu High Quality Test Heui Injector Test Bench for CAT C7/C9,CAT 3408 and so on HEUI Injectors photo-1
From Haishu High Quality Test Heui Injector Test Bench for CAT C7/C9,CAT 3408 and so on HEUI Injectors photo-2
From Haishu High Quality Test Heui Injector Test Bench for CAT C7/C9,CAT 3408 and so on HEUI Injectors photo-3
From Haishu High Quality Test Heui Injector Test Bench for CAT C7/C9,CAT 3408 and so on HEUI Injectors photo-4
From Haishu High Quality Test Heui Injector Test Bench for CAT C7/C9,CAT 3408 and so on HEUI Injectors photo-5
US$ 3,800 - 4,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, car repair testing euipment
Voltage:
220v, 380V
Power:
AC 380V/50HZ/3Phase or 220V/60HZ/3Phas
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Type Other, car repair testing euipment
Voltage 220v, 380V
Power AC 380V/50HZ/3Phase or 220V/60HZ/3Phas
Certification CE, ISO
Applicable Models all kinds of cars
Brand Name Haishu
Model Number HEUI
Warranty 1 Years







From haishu high quality test heui injector test bench

From haishu high quality test heui injector test bench for CAT C7/C9,CAT 3408 and so on HEUI Injectors



heui injector test bench Application:



HEUI test bench is controlled by industrial computer in real time, Windows operating system and touch screen .



Improve fuel economy & enhance performance



Can test CAT C7/C9,CAT 3408 and so on HEUI Injectors.



HEUI injectgor test bench is designed to test up to four HEUI  CAT C7/C9,CAT 3408 and so on HEUI Injectors., which are equipped on the following engines:



Navistar T444E, as Ford 7.3L Power Stroke Engines



Navistar DT466E



Navistar I530E



Caterpillar 3126B

From haishu high quality test heui injector test bench for CAT C7/C9,CAT 3408 and so on HEUI InjectorsFrom haishu high quality test heui injector test bench for CAT C7/C9,CAT 3408 and so on HEUI InjectorsFrom haishu high quality test heui injector test bench for CAT C7/C9,CAT 3408 and so on HEUI Injectors



Superiority



Oil measurement, fuel temperature, lub. oil temperature, injection time, injection pulse frenquency are all with digital display. Lub. oil pressure is displayed by s pressure gauge. Clear display, stable work, high control accuracy. Drive signal can be adjusted, you will have a safe repairing maintenance.



Characteristics

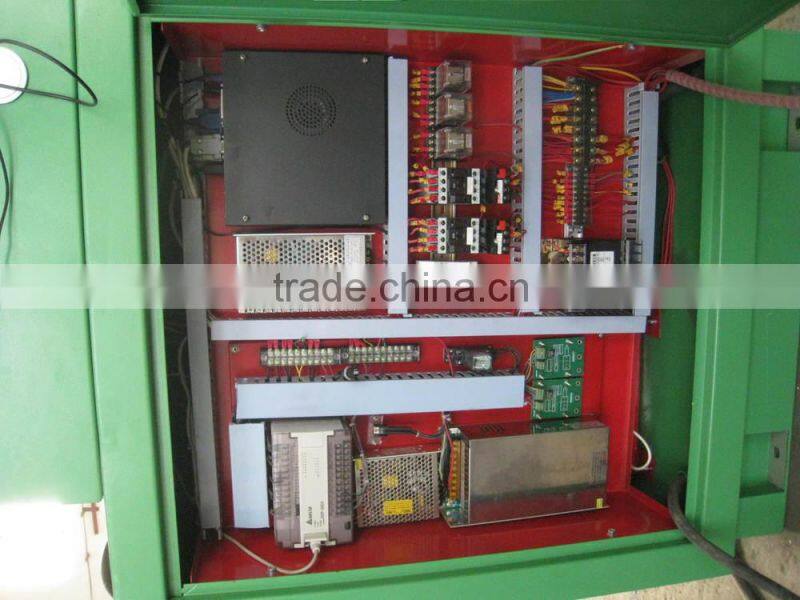

1. Controlled by industrial computer at real time, Windows operating system;



2.Oil quantity is measured by sensor and displayed on LCD;



3.Injection drive signal pluse width and frequency is adjustable;



4.The drive signal’s percentage is adjustable;



5.Short circuit protection function;



6.The injection time or injection times of injector can be set by yourself;



7.Date can be searched and saved.



1.Test CAT C7,C9 and other  HEUI Injectors.



2.Test the high-speed oil quantity of HEUI;



3.Test the medium-speed oil quantity of HEUI;



4.Test the cranking oil quantity of HEUI

From haishu high quality test heui injector test bench for CAT C7/C9,CAT 3408 and so on HEUI InjectorsFrom haishu high quality test heui injector test bench for CAT C7/C9,CAT 3408 and so on HEUI Injectors





HEUI Injector test bench Technical data

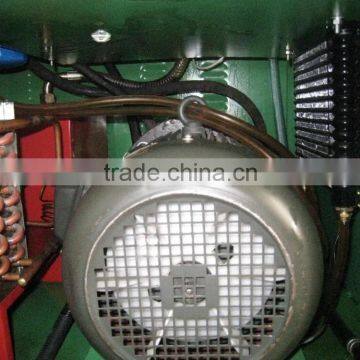

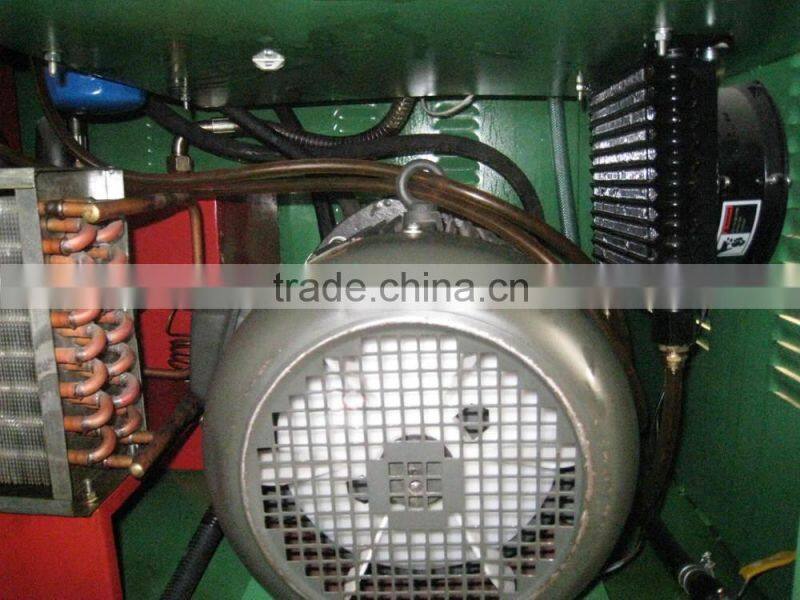

Motor

10HP motor

Injector testing frequency

 50~2000 rpm;

Injection time

1~100s

Lub. oil pressure

0~25Mpa;

Fuel pressure:

0~0.3 Mpa ;

nput power

AC 380V/50HZ/3Phase or 220V/60HZ/3Phas

Actuation Oil system

0-300bar,

.Fuel temperature

40°C;

.Lub. oil temperature

.40°C;

Test Oil Tank Capacity:

40L

Fuel Delivery Measurement

Counter Range

1~9999

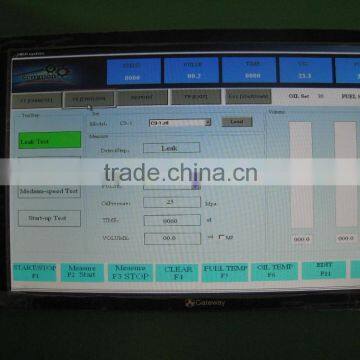

Simple, User-Friendly Display and Mini-Key Pad

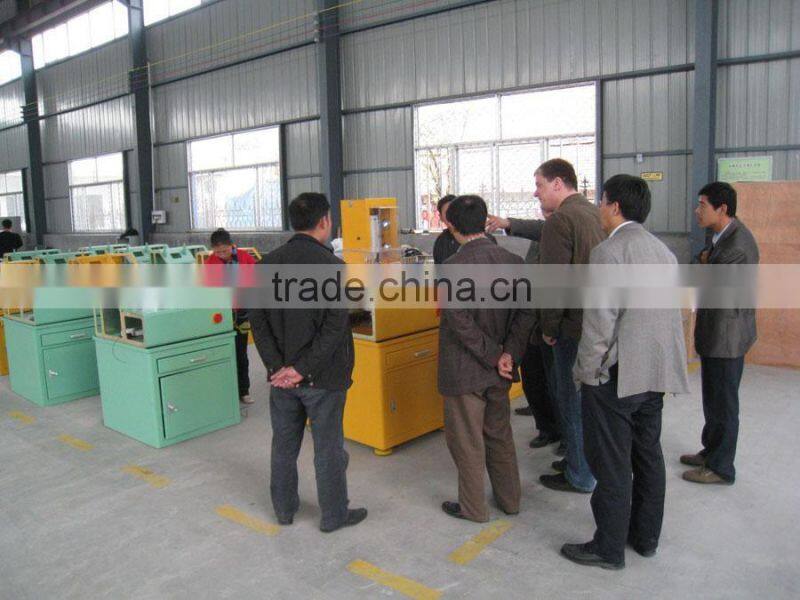

our workshop :

From haishu high quality test heui injector test bench for CAT C7/C9,CAT 3408 and so on HEUI Injectors

 our package and transport
