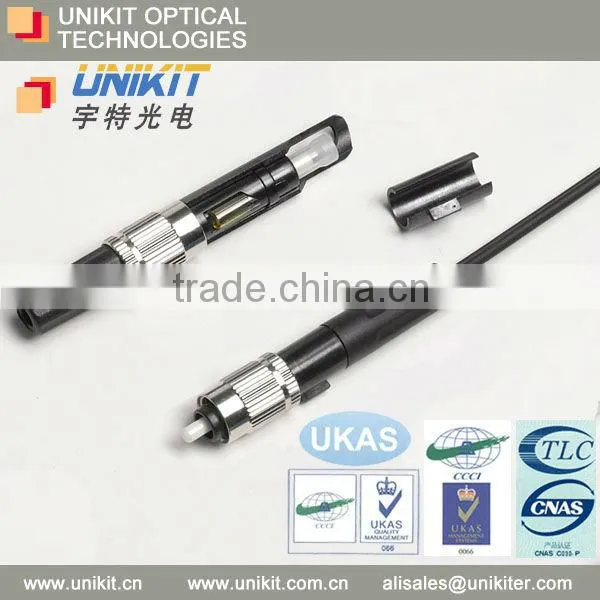

UNIKIT fiber optic waterproof connector FC UPC

Specifications

1. UNIKIT fiber optic waterproof connector FC UPC

UNIKIT fiber optic waterproof connector FC UPC



Company video:



/watch?v=EmUgU2Vaquc





Technical specification

Item	Parameter
Cable Scope	3.0 x 2.0 mm Bow-type Drop Cable 2.0/3.0 indoor cable Telecom cable
Fiber Diameter	125μm ( 652 & 657 )
Size	Length: 56 cm
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.25dB(1310nm & 1550nm)
Return Loss	≤ -45dB
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>50 N
Temperature	-40~+85°C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB



• Features:

• Low insertion loss, 0.2dB, 0.3dB, customer optional
• High return loss, 40dB, 45dB, 50dB, customer optional
• Ease of installation, simple tools, easy as “A B C”
• Low cost, reusable design
• Reliable, durability over 500 times mating
• Low environmental sensitivity, adopt to complex environment
• Above standard to YD/T2155-2010, YD/T1272.3-2005, YD/T1272.4-2007, Certificate of TLC, Patented, ISO 9001:2008, ISO 14001:2004,
• Application: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects





• See also the pictures fo UNIKIT 's product catalog, factory and workshop, trade shows and forums, awards certificate and patents. Now there are Seven offices nationally, one branch in Nanjing and the Head Office in Huaian.You are very welcome to visit our factory in China!



• Being solution provider and expert in FTTH Projects, Unikit has developed various model of fiber optic passive components. And so far, we are one of the main Suppliers of Fiber Optic Connectors to China Telecom, China Unicom, China Mobile and SARFT (the State Administration of Radio Film and Television).





Why have we chosen UNIKIT®?



Established in 2006,Jiangsu  UNIKIT®  Optical Technologies Co., Ltd is a professional manufacturer and exporter that is concerned with R&D, production and sales of fiber optic passive device of communication equipment . Fiber optic field assembly connector, mechanical splice and patch cord have just past the certificate of TLC (YD/T2155-2010 YD/T1272.3-2005 YD/T1272.4-2007). Our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.



Covering an area of 15000 square meters, we now have over 500 employees, an annual sales figure that exceeds CNY 80 million (about 15 million pieces) and are currently exporting 5% of our production worldwide.



Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO 9001:2008 and ISO 14001:2004 As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Malaysia Poland Brazil.



If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
