High Quality of LMR600 coaxial cable for tv

Specifications

High Quality of LMR600 coaxial cable for tv
1.Good quality with best price
2.Timely delivery
3.CE, ROHS, ISO
4.OEM is OK

High Quality of LMR600 coaxial cable for tv



1) Specification                            RG6/U
Center Conductor	4.47mm Bare Copper/Copper Clad Aluminum
Dielectric	11.56mm PE
1st Shield	Bonded Al Foil or Non Bonded Al Foil
2nd Shield	90% Aluminum braid
Jacket:	14.99mm PE
Approved (UL)	CMX, CM, CATV, CL2, CMR
Jelly/APD	As Customer's requirment
2) Characteristics
Sparker Test 4000VAC Impedance 50+3 Ohm Capacitance 76+3pF/m Velocity of Propagation: 87% Return Loss: 20dB min (5-2300MHz)



3) Attenuation
Attenuation [@68o F. (20o C.)] Frequency (MHz) Maximum (dB/100 ft.) Maximum (dB/100 m) 5 0.58 1.90 50 1.50 4.90 200 2.8 9.20 400 4.10 13.60 900 6.20 20.30 1000 6.50 20.40 1800 8.50 27.90

4) Application

1. Coaxial cable for CATV,CCTV systems



2. For satellite systems



5) Packing

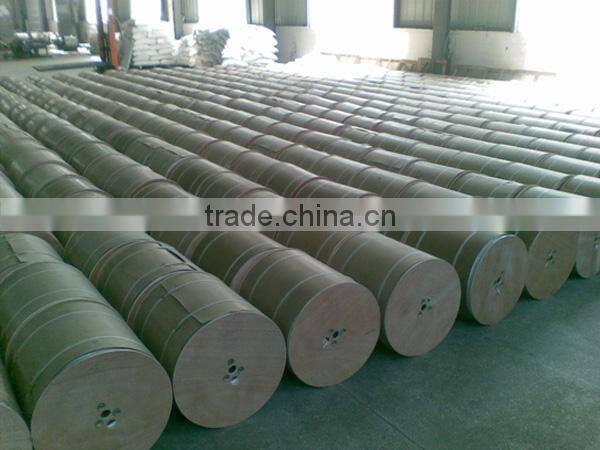

1. Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/roll. 2. Inner packing: Wooden reel, plastic reel, and paper reel. 3. Outer packing: Carton box, pull out box, pallet available. 4. Other packing available according to client's request.



 6) Additional value

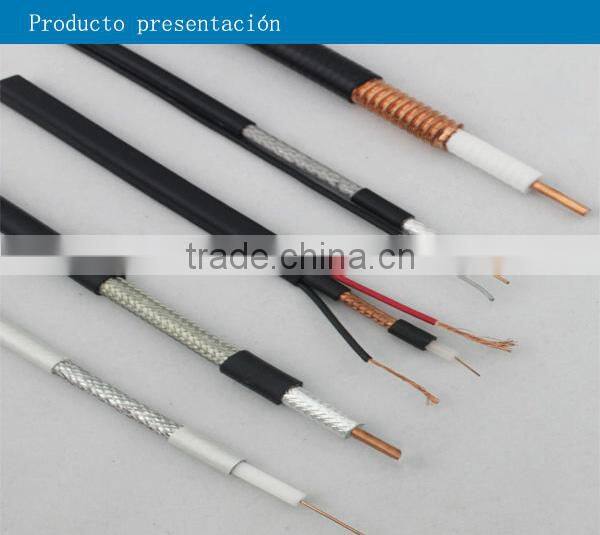

 We produce all kinds of coaxial cables. Also we offer Lan cable Cat5e, Cat6e; Security cable; Telephone cable; Alarm cable; Speak cable etc. Welcome all requirements!



 We promise you Good quality; Competitive price; Quick response!







 General FAQ

1.What is your minimum order quantity?

 Minimum order quantity varies by product line. For our bulk products such as PTFE coaxial cable, our typical minimum order quantity is 1,000 ft. for factory orders, however most of our bulk cable is also available in much smaller quantities directly from our distributor network (reference the Customer Service Tab) on this site. Through the Webstore located on this site, the minimum test cable order quantity is one piece.

2.What is your standard Quote turnaround time?

Most standard products can be quoted the same day via email. Additionally, real time quotes for test cables may be obtained from the Webstore on this site. Finally, quotes for highly engineered products to a detailed specification may require several days or more to complete, but we are generally working with you throughout this process to provide the best possible product to meet your needs.
