EPS Sandwich wall Panel

Polystyrene steel panel introduction

Polystyrene color steel panel also called polystyrene sandwich panel, polystyrene sandwich panel, polystyrene compound panel, EPS sandwich panel, polystyrene temperature keeping panel.

Material introduction

Polystyrene shaped in automatic continue compound machine, outside is high strengthen material(such as PPGI, stainless steel),inside is light flame retardant polystyrene material shaped in automatic continue machine, made two together with high strength bond, through pressure, edge treatment, slotted blanking, made a new type high effect compound material. sandwich panel with good anti-pressure, heat insulation, heat preservation, waterproof, damp preservation, airtight, light, anti corroded, anti aging, low thermal and so on, also with good anti shear mechanics, and quick construction, durance, beauty, so welcomed by construction fields.

Feature:

Good in heat insulation: polystyrene is very good low thermal material, and through crowded and press come out ,made density and beef structure, which can stop heat conducting, polystyrene panel thermal coefficient is 0.028/m.k,with high flame retardant, Low linear expansion. thermal coefficient is much lower than other heat preservation material, and this type of panel with light, cheap and stable chemical and physical structure, which make sure durability and stable of heat preservation functions ,so it is the best heat preservation material at present in world.

High strength anti-pressure function

Polystyrene with high anti-pressure, which keep shape even if keep in water for long time, with big load capacity and good ant patch function.

Waterproof, damp proof

Polystyrene with density closed hole structure, polystyrene not absorb water, up and down without seam, so with low absorb water.

Good in damp proof and leakage proof

Anti corroded, good in durability

Polystyrene with good anti corroded, anti aging, heat preservation ,lifetime is 30-40 years.

Light, high hard, low cost and construction is convenient.

Polystyrene complete closed hole foam structure made it light, and uniform beef structure made it very hard ,so it is not easy to be broken, easy to carry and install, easy to cut, as roof’ heat preservation can not effect structure’s loading capacity.

High quality environment protect

Polystyrene is not easy to happen decomposition and mildew, no harmful things volatilize, chemical property is stable, which is high quality environment protect products.

Polyurethane color steel panel specification

Up/down: adopt galvanized color steel panel,thickness0.4-0.6mm.according to customer’s requirement, also can adopt PPGI or galvanized color steel panel. steel is corrugated by shape machine firstly then compound with polyurethane. polyurethane bulk capacity≥6kg/m³

type

1)950/1150 Inro type wall panel(flat, corrugate)

2)1000/1200 no Inro wall panel(flat, corrugate)

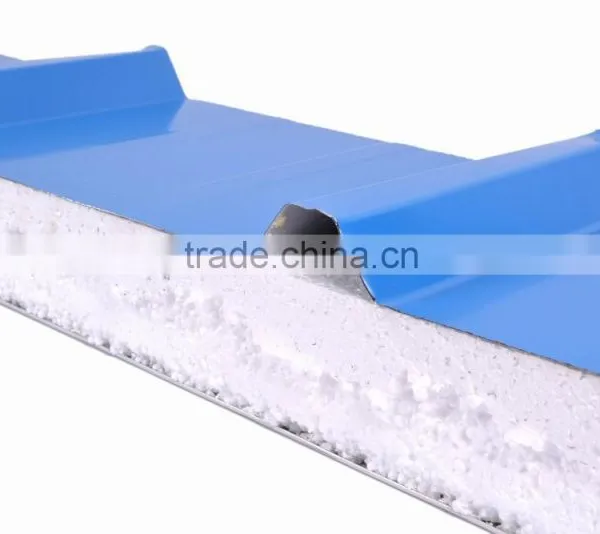

3)960 type roof panel

width

Inro wall panel effective width:950mm

No inro wall panel effective width: 1000mm/1200

roof panel effective width:960mm

Thickness

Inro wall panel: 50mm~150mm;

No inro wall panel : 10mm~200mm;

roof panel thickness: 50mm 75mm 100mm 125mm

Length

length≥2000mm according to design and delivering installment condition.

Color

Choose accoring to project requirement(regular white gray,sea blue)
