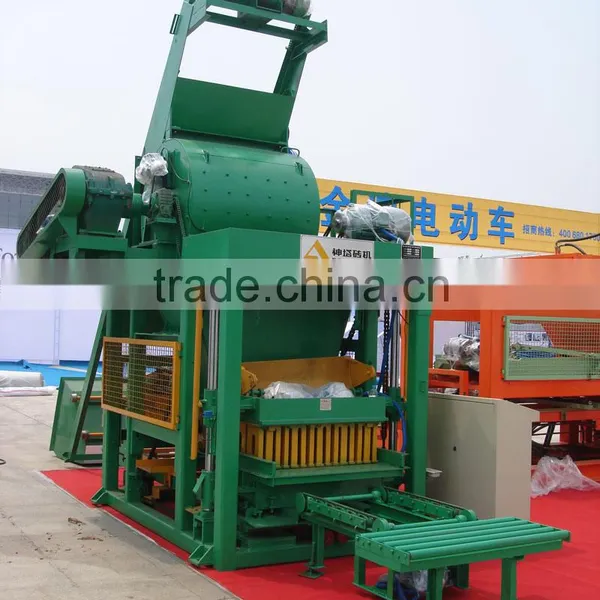

QTJ 5-20 block making machine in Laos
- 500 Unit / Units per Month
- Guangzhou Shenzhen Fangcheng or other China port
- T/T L/C Credit Card
Product Details
| Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
| Processing: | Brick Production Line | Method: | Other, Vibration type | Automatic: | Yes |
| Capacity: | hollow brick 7200 pc/ 8 hour | Place of Origin: | Guangxi, China | Brand Name: | Shenta |
| Model Number: | QTJ5-20 block making machine in Lao | Voltage: | 220--380V | Power: | 44KW |
| Dimension(L*W*H): | 4300X2040X3405mm | Certification: | ISO9001, BV & CE | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Container
PP film
Carton
or accordning to client request
Product Description
SHENTA MACHINERY EQUIPMENT CO.,LTD. (short for Shenta machine), we are specialized in block making machine (brick making machine), as the most earliest and professional in block making machine 35 years, we can offer you the block making machine and production line with reliable quality, professional technology, and sincere service.
Characteristic
- Full mechanical transmission with feature of compact structure and reasonable arrangement, the performance is more stable and the malfunction rate is more lower, as well as the operation and maintenance is more easy.
- Adopt Taiwan import PLC controller, the brick produce is full automatic, the electric parts are provided by well-known company to ensure the safety and stable performance.
- The main machine utilized the advanced top and bottom vibration technology to form the block, the strength and density of brick is higher.
- Swift speed arch breaking device can consumedly shorten the concrete material distributing time.
- The control system has the data setting device, the distributing time and vibration time is resettable to meet various material.
- Adopt the double guide pillar and super long-life wearable materials to ensure the high precision press of forming mould and press head.
- Multi-purpose and strong adaptability, change different mould can produce various wall brick, porous brick, paver brick, grass brick and shielding-slope brick.

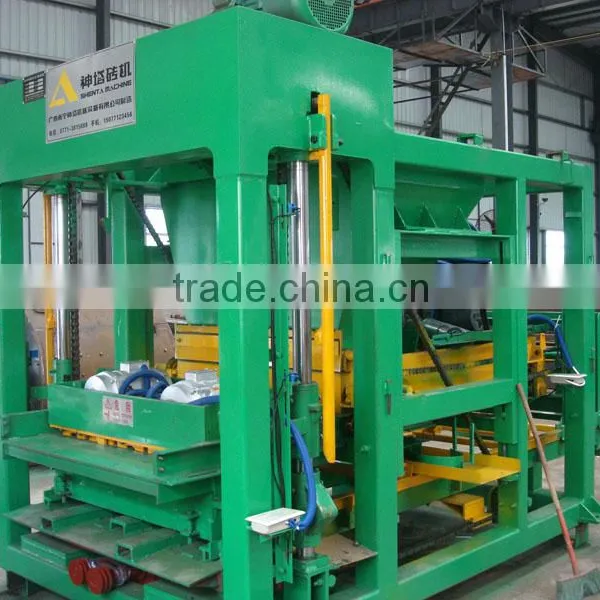

- Super strong welded profile steel frame structure provides the long term stable and reliable operation.

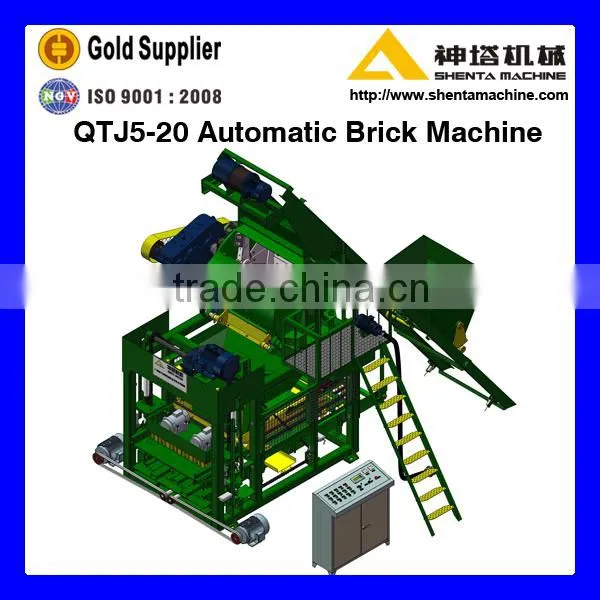

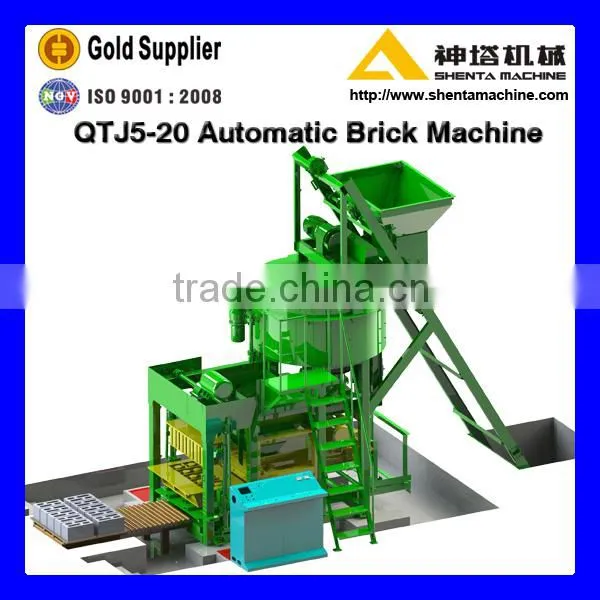

QTJ 5-20 block making machine Specification:
Dimension(mm) | 3400x3050x4300 | Operation cycle(s) | 20~25 |
Net weight(t) | 8 | Vibrationfrequency(s/m) | 4300 |
Power capacity(kw) | 44 | Excitation force(kn) | 55 |
Pallet size(mm) | 1050x550x30 | Vibration power (kw) | 15 |
QTJ5-20 block making machine Proudction capacity

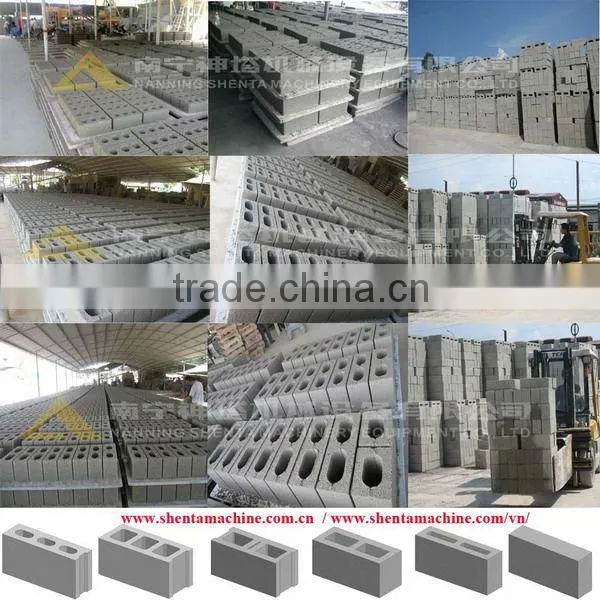

Brick size(mm) | Block/ Mold(pc) | Block/ Hour(pc) | Block/Shift(pc) | picture |

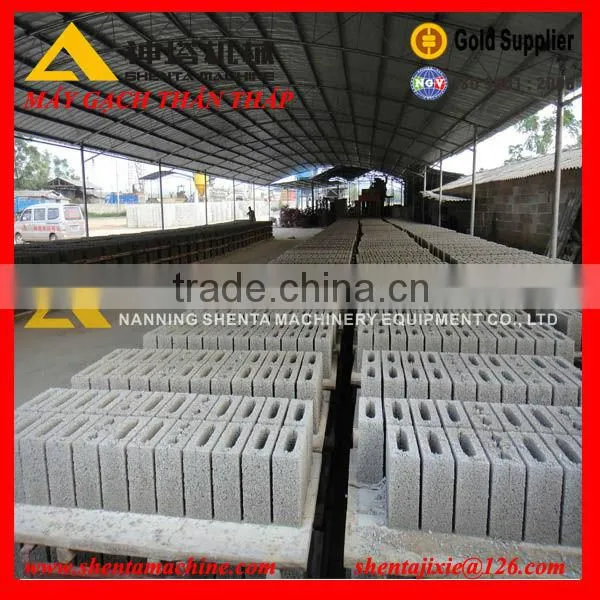

Hollow brick 390X190X190 | 5 | 900 | 7,200 | |
Porous brick 240X115X90 | 16 | 2,880 | 23,040 | |
Solid brick 240X53X115 | 32 | 5,760 | 46,080 |
Company Profile

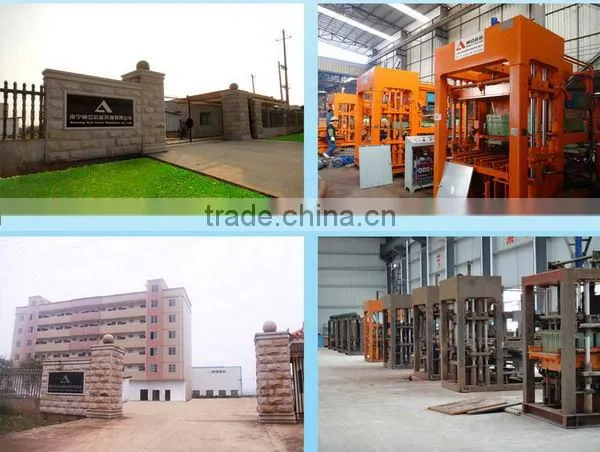

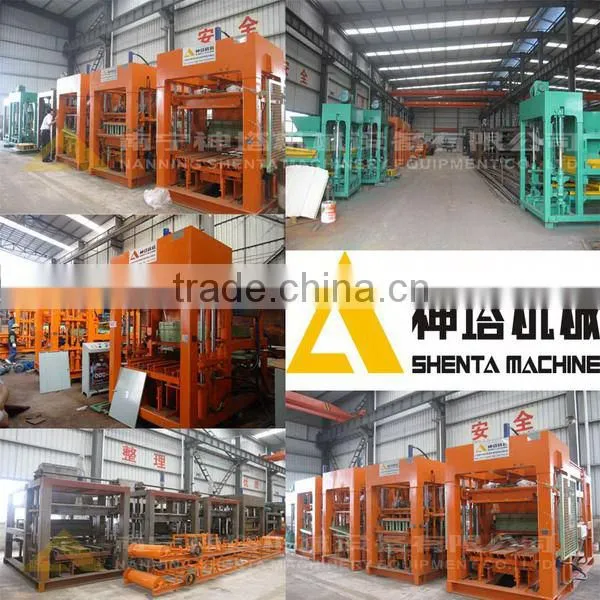

Nanning SHENTA Machinery Equipment Co., Ltd, established in 1973, is the earliest professional and leading manufacturer of concrete block making machinery. After decades of hard working, we have developed into the high-tech enterprises which integrate the research & development, manufacturing, sales and service. SHENTA factory covers an area of 40,000 square meter, with senior engineers more than 20 people and all kinds of technician more than 200 staff. With an annual production capacity of 500 sets.
SHENTA devoted great care to market planning and development, we have earned ISO9001-2008 Quality Management Certificate in 2008, and awarded the title of "valuing contract and keeping promise" for many years. With the advanced technique, sophisticated technology, strict supervision and perfect service, SHENTA has become the high quality supplier in new building material field.
SHENTA not only distributed in all around China, but also exported to Southeast Asia, Africa, and Oceania etc.
Adhering to the philosophy of "Credit & Honest, dedication & devotion, pragmatism & practice, Innovation & Creation", SHENTA stride forward to construction equipment enterprise of specialization, scale and internationalization, provide strong support of equipment for the new building material, building the solid future for you.
