Pressure sensor YB6A
- 10000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | GOLDSHINE | Model Number: | YB6A |
| Usage: | Pressure Sensor | Theory: | Resistance Sensor | Output: | Analog Sensor |
Product Description
Specifications
1.Small volume,light weight and very convenient2.use for the no-crystal liquid,gas and the high capacity pressure measurement
Features:
High accuracy and high reliability.
Airproofed structure with high stability.
Small volume, light weight and very convenient to use.
It's suitable for precision measuring all kinds of static states or the no-crystal liquid, gas and the high capacity pressure measurement that changes very slowly. It also can be used to match digital pressure indicators or record instruments.
Specifications:
Capacity: | MPa | 3/4/5/6/7/8/10/12/15/20/25 |
Output Sensitivity: | mV/V | 1.0±0.1 |
Non-Linearity: | %FS | 0.1 |
Non-Repeatability: | %FS | 0.1 |
Hysteresis: | %FS | 0.1 |
Temperature Effect On Zero: | %FS/10°C | 0.2 |
Temperature Effect On Span: | %FS/10°C | 0.5 |
Zero Balance: | mV | ≤±0.5 |
Terminal Resistance, Output: | Ω | 350+7 |
Insulation Resistance: | MΩ | 1000(100VDC) |
Excitation, Recommended: | V | 9-12(DC/AC) |
Excitation, Permission: | V | 6-18(DC/AC) |
Temperature, Compensated: | °C | 20-+70 |
Temperature, Operating: | °C | 0-+80 |
Safe Overload: | %FS | 120 |
Ultimate Overload: | %FS | 150 |
Note:

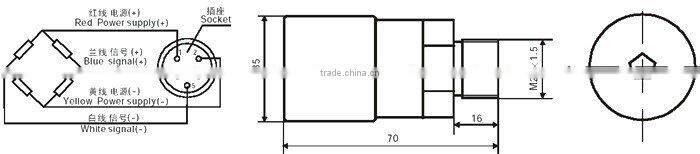

When installing please use the flat end airproofed connector with the screw thread of M20×1.5.
The medium material that meets: Stainless steel.
The pressure transducers are connected with indicator through sockets.
