Speed Stable 20liter /5 Gallon Barreled Pure Water/ Mineral Water Filling Machine Manufacturing Factory

   Speed Stable 20liter /5 gallon barreled pure water/ mineral water filling machine manufacturing factory

fill machine automatic barrel filling machine(5L-15L, can be customized)

 In order to meet the requirement of production capacity, we design the whole unit into 4-nozzles/6 nozzles/8 nozzles filling. Bottle will be conveyed to rotary plate along conveyor, and then the bottle will move to filling head, the filling head has been installed detector, and there are 4 sets/6 sets/8sets electronic balances under these stations, which can fulfill automatic counting for 4/6/8 bottles(buckets). When there are 4/6/8 bottles on the electronic balances, the filling head will move down and fill the bottle.

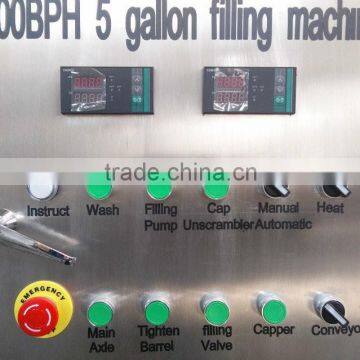

It adopts electronic balance for metering the raw material; the pump can absorb the liquid automatically. And the filling volume can be controlled by touch screen of the electronic style.

Filling part is easy to adjust. You only adjust filling quantity to meet different specs. It is also easy to clean, you don’t have to disassemble the unit, just fill with water to clean the filling machine.

Function :

1. It is specially used for filling 1 gallon to 5 gallon bottled water.
2. It is a good machine line for the all shapes of bottles.
3. The machine is designed for bottles such as PVC. PE. PET etc. It can be used for different shapes of bottles.
4. The machine line with stainless steel rinse nozzles, pressure filling valve, screw caper, hot steam film shrinkage machine top quality line.
5. Filling time is controlled by the PLC.
6. The machine adopts high quality stainless steel frame(No. Z304).
7. The machine design appearance is beautiful, easy operation, maintenance  and working stable.

Capacity:According to buyer's request / 80-1200BPH

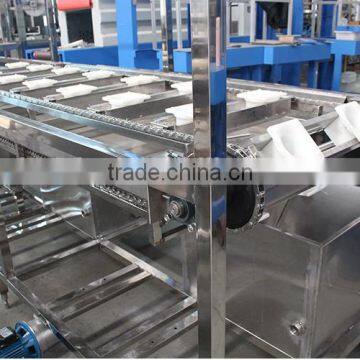

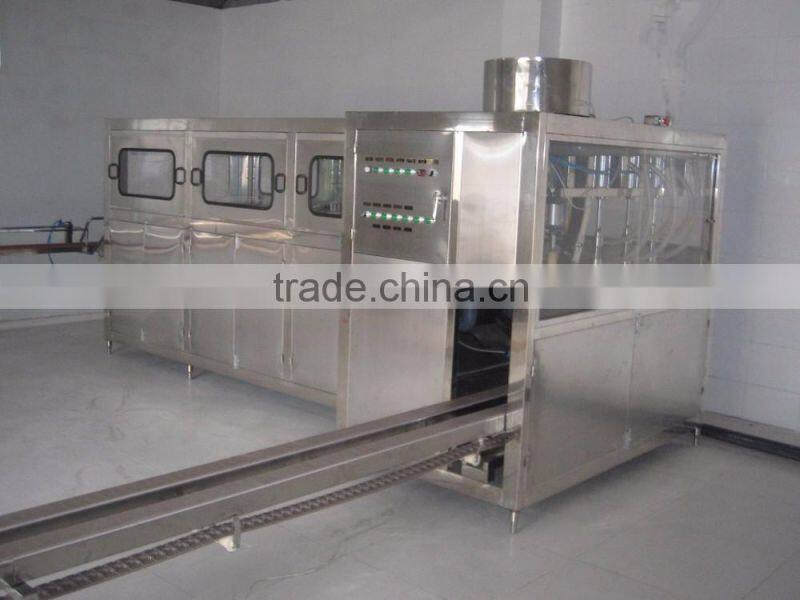

The 5 Gallon barreled production machine is composed by frame(75*45 SS square pipes), sealing panel ,chain , chain wheel , barrel holder , water pump, electrical appliance , driving system, filling system, cap manage and press system and so on . barrel inlet chain adopts 1304 roller chain . barrel holder adopts high strength nylon main shaft driving with pneumatic . it is stable and precise location .in order to prevent pump empty running the lye tank and sterilize liquid tank adopts float signal alarm. The total equipment comment controlled by PLC. Jet nozzle adopts rotate types in order to complete washing from full directions. On the top of the cap manager  there is a speed regulator motor which made in TAIWAN. No noise. Cap press adopts continually chain pressing caps . it is heeling condition with springs to buffer . there are sieve and  feeding inlet in order to add sterilize liquid and water easy. Every connect pipes adopts SS pipes .

1. It is specially used for filling (3 gallon to 5 gallon) bottled water.

2. It is a good machine line for the all shapes of bottles.

3. The machine is designed for bottles such as PVC. PE. PET etc. It can be used for different shapes of bottles.

4. The machine line with stainless steel rinse nozzles, pressure filling valve, screw capper, hot steam film shrinkage machine top quality line.

5. Filling time is controlled by the PLC.

6. The machine adopts high quality stainless steel frame(No. Z304).

7. The machine design appearance is beautiful, easy operation, maintainance and working stable.

8. The entire line is composed of

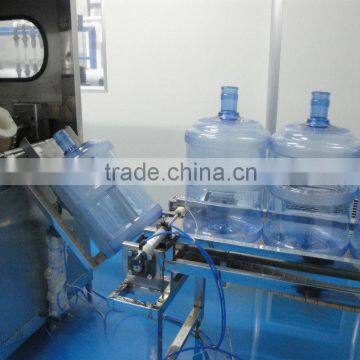

(1). Bottle-loading device.

(2). Rinsing machine with continuously sterilizing system.

(3). Linear filling machine .

(4). Capping machine .

(5). Cap/label film steam shrink .

(6). Conveyancer system.
