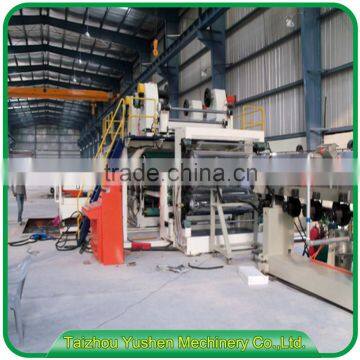

Aluminum compound panel production line

 Design specification:

1. ACPspecification:

Width: 1,220~1,575mm

Thickness: 3.0mm(adopt aluminum coil thickness 0.1~0.5mm)

     4.0mm/6.0mm(adopt aluminum coil thickness 0.15~0.6mm)

             2.0mm (adopt aluminium coil thickness 0.10~0.15mm)

Length: according to production requirement to set

2. material:

PE coreboard: LDPE( can be the recycled material)

Coated Aluminum coil:

Width: 1,240 ~ 1,600 mm

       Thickness: 0.10 ~ 0.50 mm

       Weight: 5,000 kg/p

       Outer diameter: Φ1200mm(max)

       Inner diameter: Φ150mm,Φ405mm,Φ505mm

Macromolecule film:

Width: 1,260 ~ 1,630 mm

       Thickness: 30 ~ 50um

       Weight: 60 ~ 90 kg/p

Protective film: PE/SOFT

Width: 1,600m

Thickness: 0.1/0.2 mm

Outer diameter: Φ300mm

Inner diameter: Φ75mm

Weight per reel: 60kg

3. production velocity: 1.0 ~ 3.0 m/min

4. production throughput: (calculate as 300 days/year, 20 hours/day)

      Width: 1220mm panel 1100,000 square meters/ year

      Width: 1575 mm panel 1200,000 square meters/ year

5. electric:

electric source: 3φ-380v-50hz or accodring to buyer's country standard

    electric power: 360kw(heating) +220 kw (power). Practical power: 290kw

6. atmospheric pressure source:

       pressure: 5 ~ 7 kgf/cm2

       gas amount: 0.5 ~ 1 m3/min

7. water amount: ( industrial water )

   water pressure: 1 ~ 2 kg/cm2

   circulating amount: 0.5 ~ 1 m3/d (recycled)

8. Equipment total weight and square meter:

   Equipment total weight: about 90,000 kg

  Equipment dimension: about 42,000 L x 94,000 W x 4,100 H (mm)
