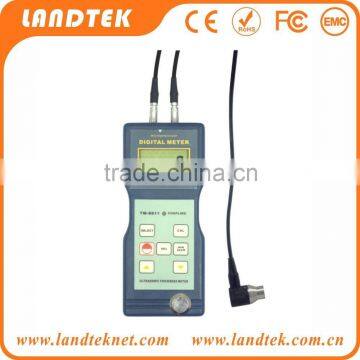

Ultrasonic Thickness Gauge TM-8811

Applications:

Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil orage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing

* Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron. It is widely used in almost all kinds of industries.

* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.

* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.

* Automatic power off to conserve power.

* Digital display gives exact reading with no guessing or errors.

Standard Accessories:

1. Main Unit

2. 5M*8 Standard Sensor

3. Coupling Agent

4. Carrying Case

5. Operating Manual

Optional Accessories:

1. 6M *6 mm thin Material Probe: Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

2. 5M *12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

3. Curved Surface Probe
