12v magnetic switch normally closed
- 100000 Piece / Pieces per Month
- Shenzhen China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | P&H | Model Number: | ER142 |
| Usage: | Door |
Product Description
Name:
Magnetic Switch
12v magnetic switch normally closed
Features
1. 1/4 inch diameter super miniature stubby switch
2. Press fit mini contact
3. 14 inch (35cm) side leads with AWG #24
4. Magnet : NdFeB
5. Size: Dia6.35*14L mm
6. Color : white, brown, grey
7. ABS Housing
Characteristic
Japanese UL listed OKI Reed
Open Loop or SPDT is available if required
Deactivated Rhodium Plated Reed
Technical Data:
Recessed Mounted:
Model | Loop Type | Reed Form | Operating Gap Inch (mm) | Max Contact Resistance (Ohm) | Max Rating Current (mA) | Max Switching Voltage (VDC) |
ER133 | closed | NO | 1/2(10±5) | 0.2 | 500 | 100 |
ER135 | closed | NO | 3/4(18±5) | 0.2 | 500 | 100 |
ER136 | closed | NO | 1.5(40±10) | 0.2 | 500 | 100 |
ER140 | closed | NO | 3/4(20±5) | 0.2 | 500 | 100 |
ER141 | closed | NO | 3/4(20±5) | 0.2 | 500 | 100 |

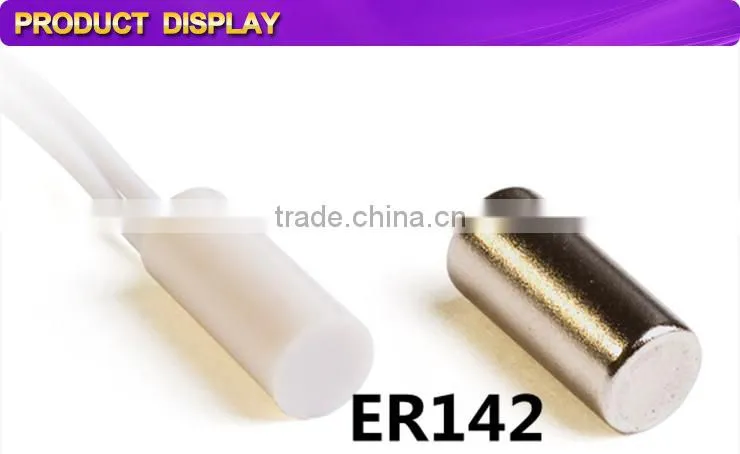

ER142 | closed | NO | 3/4(20±5) | 0.2 | 500 | 100 |
ER143 | closed | NO | 3/4(20±5) | 0.2 | 500 | 100 |
ER144 | closed | NO | 3/4(20±5) | 0.2 | 500 | 100 |

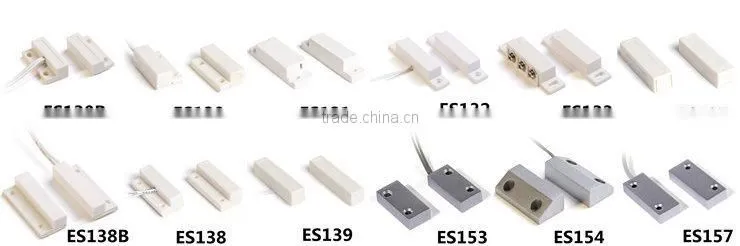

THE MAGNETIC CONTACTS FOR YOUR CHOOSE:
Overhead Mounted:
Surface Mounted:
Recessed Mounted:
Four Care You Need!
You care for produce!
--We supply high quality products by using qualified materials and sophisticated equipment
You care for price!
--We offer reasonable price by improving the technology and management
You care for service!
--We provide all-sided services by our efficient teams
You care for innovation!
--We issue 4 to 8 new products per year
As a market-driven and customer -centric company.P&H strive to create products and services that enhance human life by continually developing innovative technologies centering on the fields of Alarm and Security.
