wear resistance green wear strip/ plastic gear and slide wear strip
- 500 Ton / Tons per Month
- Tianjin/Qindao
- T/T
You May Like
-
Virgin customized CNC cutting PE wear strips
-
Flexible Plastic Strips for Crafts /UHMW-PE Material polyethylen wear strips
-
gear strip manufacturer/self lubricating and wear resistant hard plastic slide strips
-
100% Vrigin HDPE Extruding Rod
-
100% Vrigin HDPE Extruding Rod
-
100% Vrigin HDPE Extruding Rod
Product Details
Place of Origin | Shandong, China | Brand Name | XINXING | |
Model Number | XX01 | Material | Other, PE, PE | |
Thickness | 1-300mm | Size | all size can be made as you need, as you request |
Product Description
wear resistance green wear strip/ plastic gear and slide wear strip
Why choose us
·More than 15 years of factory experience on the engineering plastic.
·100 people’s development & production team and professional after-sales service.
·Best quality and the most competitive price
·Strict production under the ISO9001:2000 Certificate of Quality System
We always share the things "Quality first, Customer first ,keeping improving " to win more benefits for
our customer.In order to achieving rapid and sustainable development, we are willing to establish a wide
and deep cooperation relation with enterprises both home and abroad.
HDPE SHEET SIZE:
Thickness:1mm~100mm
Width*Length:1000mm*2000mm,1220mm*2440mm,as order.
Colour:white,black,green,blue,etc.

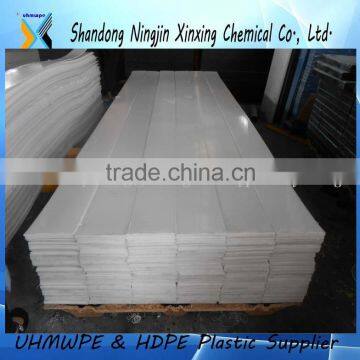

Pictures:
Applications:
Conveyor Decks, Wear Strips, Slide Blocks, Rollers, Bushes, Washers
Main Advantages of UHMWPE Strip :
1. Very high-wear resistance, seven times wear resistance than steel, four times than PTFE
2. Very high anti-impact resistance, two times impact resistance than PC, five times than ABS.
3. Good self-lubrication, the same as PTFE, better than steel and brass appended lubricating oil.
4. Good anti-corrosion resistance, it has very stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Very high-inadhesion resistance, the surface of product hardly affixes other material.
6. Very high-impact resistance, ten times impact resistance than PA66, eight times than PTFE.
7. Good low temperature resistance, in liquefied nitrogen (- 196℃), it still has the prolongation.few other materials can reach to this performance.
8. Non-toxic and clean property, UHMW-PE, which is the material that Food and Drug Administration (FDA) and United States Department of Agriculture (ASDA) permit to apply in food and medicine fields.
Chemical property:
Property | Unit | Value |
Density | g/cm3 | 0.93-0.97 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- | ≤0.16 |
Kinetic Friction Coefficient | -- | ≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | - ≥300 |
Temperature resistance | °C | 269 to +85 |
Melt Temperature | °C | 130-140 |
Shandong Ningjin Xinxing Chemical Co., Ltd. is one of the most professional manufacturer of UHMW-PE(Ultra-high Molecular Weight Polyethylene) sheet and rod, HDPE(High-density Polyethylene)sheet PP sheet, PVC sheet, and sorts of products machined preciaely according to the drawing provided by customers in China. Such as Outrigger Pad, Duck Bumper, Cushion Block, Liners (coal bin liner, hopper liner ,truck bed liner etc.) and other items.
For Engineer plastics, XINXING is your first choice.
Q : We have a strict control on our quality so we must assure the uhmwpe parts that we imported have good quality ,how can you assure that ?
A: Dear sir ,that is really a good question .We control our quality from raw material to the processing process in every aspects .Also we use TICONA brand material as the raw material .Their quality is very famous all over the world .
Q: Can you exported by yourself and which country that you have exported ?
A: Dear Sir ,we have exported license and we have exported to many countries like America ,Russia ,Africa ,Thailand ,Malaysia ,Indonesia ,Japan ,Germany ,Poland ,Uk ,Canada and many other countries .
Q: If we purchase from you ,what benefits that you can bring to us ?
A: We can bring you benefits in four aspects : Price ,Service ,Delivery time ,Quality
Price :If you buy from us ,we can assure that your price is competitive than others since we are the largest manufacture for UHMWPE products
Service :We have special sales and single service for you which will make sure that you can get every good service on each order
Delivery time :We have nearly 16 sets pressing machines and 7 sets CNC machine to do the processing which will make sure a very fast delivery time
Quality : Quality is the best since raw material and our pressing machine is best
Q:We are very urgent on this sample order and quantity is only 4 tons ,could you finished them in 10 days ?
A: OK ,even our normal delivery time is 15 days ,but we would like to help you solve this problem.
If there have any requirements in your side, please write me back or call me please, let's talk more in details.
