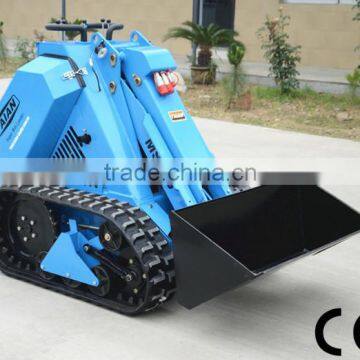

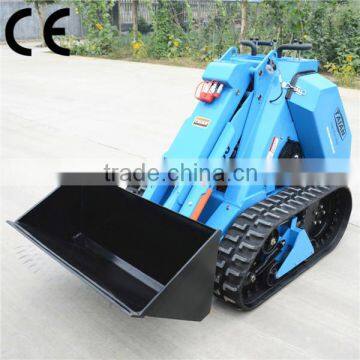

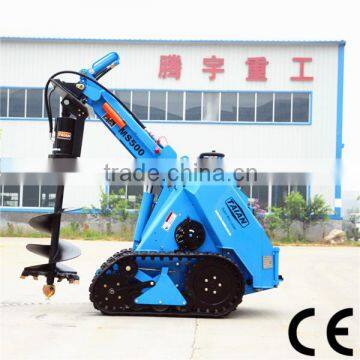

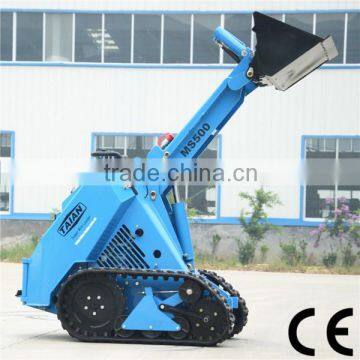

TAIAN loader MS500 compact loader small crawler loader

FOB Price

Negotiable / Set

2 Sets(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Brand Name:	TAIAN	Model Number:	MS 500
Place of Origin:	Shandong, China	Type:	Skid Steer Loader	Moving Type:	Crawler Loader
Dimension(Long * Breadth * High):	1780x1100x1300mm	Rated Load:	500kg	Certification:	CE certifcate
Warranty:	1 year or 1000 working hours whichever comes first	After-sales Service Provided:	Overseas third-party support available

Product Description

TAIAN loader MS500 compact loader small crawler loader :

Company Information

Our company was established in 2001, and since then we have been focus on all kinds of loaders development, good innovation ability enable us to keep developing and stand out from other similar products. We have been awarded with 4 patents till now, variable products can meet customers different requirements.

Features:

1. With CE certificate
3. Extremely compact design, light weight, easy to transport and smart in narrow working environment.

4. Self levering.

5. Standard quick coupling system can use hundreds of different attachments.

6. The main hydraulic components were famous oversea products which guarantee that it is a powerful and reliable machine.

Model	MS500
Moving type	Crawler or Wheel
Max. Length (without bucket)	1760 mm
Max. width	1100 mm
Max. height	1295 mm
Speed	5km/h
Rated loading capacity	520kg (including attachment)
Tipping load	1040kg
Max. reach	1800mm
Pushing power	8.2KN
Weight (without attachment)	1200kg
Hydraulic oil flow	31L/min
Track oil flow	46L/min
Oil tank capacity	38L
Oil mode	L-HL46
Gasoline oil capacity	28L/min
Battery capacity	45Ah
Voltage	12v
Engine	Kohler CH752, 27HP(20.1kw)
Engine type	Gasoline, Four-cycle, V-twin cylinder, Air- cooled
Rotation speed	3000r/min
Optional Chinese Diesel Engine 1
Engine model	Changchai 3M78, 21.76HP
Engine type	Diesel, 3 cylinders, water cooled
Engine speed	3000r/min
Machine Size(LxWxH/mm) without bucket	1910mmx1150mmx1345mm
Weight (without attachment)	1240KG
Optional Imported Diesel Engine 2
Engine model	Perkins 403D-07
Engine Power	17HP
Rotation speed	2800r/min
Engine type	Diesel, 3 cylinders, water cooled
