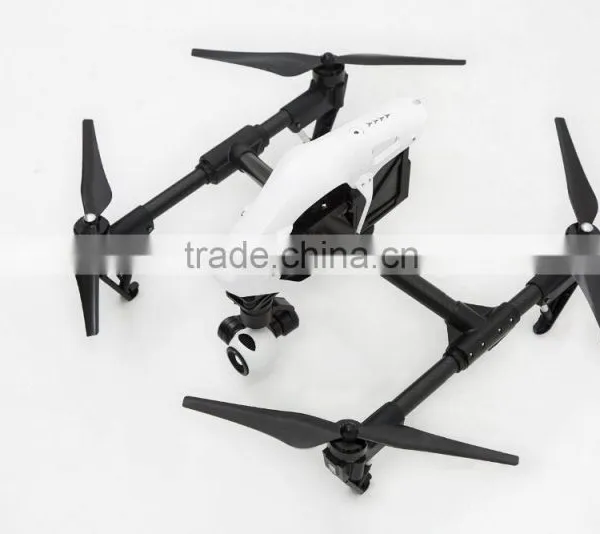

DJI Inspire 1 V2.0 Quadcopter uav drone With Single Remote

                 Aircraft

Model

T600

Weight (Battery Included)

2935 g

Hovering Accuracy (GPS Mode)

Vertical: 0.5 m

Horizontal: 2.5 m

Max Angular Velocity

Pitch: 300°/s

Yaw: 150°/s

Max Tilt Angle

35°

Max Ascent Speed

5 m/s

Max Descent Speed

4 m/s

Max Speed

22 m/s (ATTI mode, no wind)

Max Flight Altitude

4500 m

Max Wind Speed Resistance

10 m/s

Max Flight Time

Approximately 18 minutes

Motor Model

DJI 3510

Propeller Model

DJI 1345

Indoor Hovering

Enabled by default

Operating Temperature Range

-10° to 40° C

Diagonal Distance

559 to 581 mm

Dimensions

438x451x301 mm

Power Spectral Density

9.06mW/MHz

               Gimbal

Model

ZENMUSE X3

Output Power (With Camera)

Static: 9 W

In Motion: 11 W

Operating Current

Station: 750 mA

Motion: 900 mA

Angular Vibration Range

±0.03°

Mounting

Detachable

Controllable Range

Pitch: -90° to +30°

Pan: ±320°

Mechanical Range

Pitch: -125° to +45°

Pan: ±330°

Max Controllable Speed

Pitch: 120°/s

Pan: 180°/s

          Camera

Name

X3

Model

FC350

Total Pixels

12.76M

Effective Pixels

12.4M

Image Max Size

4000x3000

ISO Range

100-3200 (video)

100-1600 (photo)

Electronic Shutter Speed

8s - 1/8000s

FOV (Field Of View)

94°

CMOS

Sony EXMOR 1/2.3”

Lens

20mm (35mm format equivalent)f/2.8 focus at ∞

9 Elements in 9 groups

Anti-distortion

Still Photography Modes

Single shoot

Burst shooting: 3/5/7 frames

Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7EV Bias

Time-lapse

Video Recording Modes

UHD (4K): 4096x2160p24/25, 3840x2160p24/25/30

FHD: 1920x1080p24/25/30/48/50/60

HD: 1280x720p24/25/30/48/50/60

Max Bitrate Of Video Storage

60 Mbps

Supported File Formats

FAT32/exFAT

Photo: JPEG, DNG

Video: MP4/MOV (MPEG-4 AVC/H.264)

Supported SD Card Types

Micro SD

Max capacity: 64 GB. Class 10 or UHS-1 rating required.

Operating Temperature Range

0° to 40° C

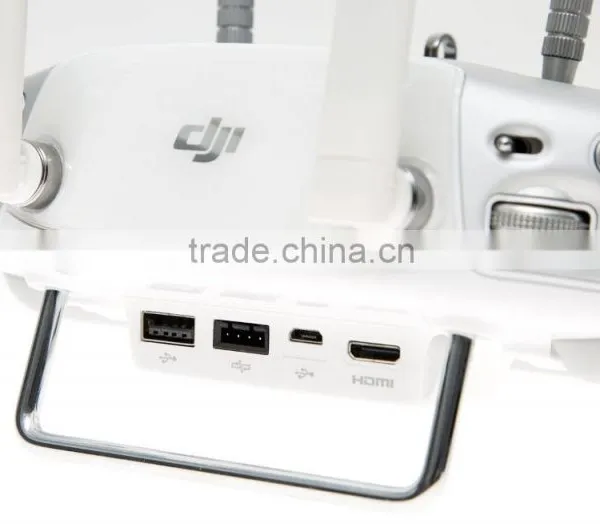

        Remote Controller

Name

C1

Operating Frequency

922.7~927.7 MHz (Japan Only)

5.725~5.825 GHz

2.400~2.483 GHz

Transmitting Distance (Outdoor And Unobstructed)

2 km

EIRP

10dBm&900m, 13dBm&5.8G, 20dBm&2.4G

Video Output Port

USB, mini-HDMI

Power Supply

Built-in battery

Charging

DJI charger

Dual User Capability

Host-and-Slave connection

Mobile Device Holder

Tablet or Phone

Max Mobile Device Width

170mm

Output Power

9 W

Operating Temperature Range

-10° to 40° C

Storage Temperature Range

Less than 3 months: -20° to 45° C

More than 3 months: 22° to 28° C

Charging Temperature Range

0-40° C

Battery

6000 mAh LiPo 2S

         Charger

Model

A14-100P1A

Voltage

26.3 V

Rated Power

100 W

Battery (Standard)

Name

Intelligent Flight Battery

Model

TB47

Capacity

4500 mAh

Voltage

22.2 V

Battery Type

LiPo 6S High voltage battery

Energy

99.9 Wh

Net Weight

570 g

Operating Temperature Range

-10° to 40° C

Storage Temperature Range

Less than 3 months: -20° to 45° C

More than 3 months: 22° C to 28° C

Charging Temperature Range

0° to 40° C

Max Charging Power

180 W

Battery (Optional)

Name

Intelligent Flight Battery

Model

TB48

Capacity

5700 mAh

Voltage

22.8 V

Battery Type

LiPo 6S

Energy

129.96 Wh

Net Weight

670 g

Operating Temperature Range

-10° to 40° C

Storage Temperature Range

Less than 3 months: -20 to 45° C

More than 3 months: 22° to 28° C

Charging Temperature Range

0° to 40° C

Max Charging Power

180 W

Vision Positioning

Velocity Range

Below 8 m/s (2 m above ground)

Altitude Range

5-500 cm

Operating Environment

Brightly lit (lux > 15) patterned surfaces

Operating Range

0-250 cm

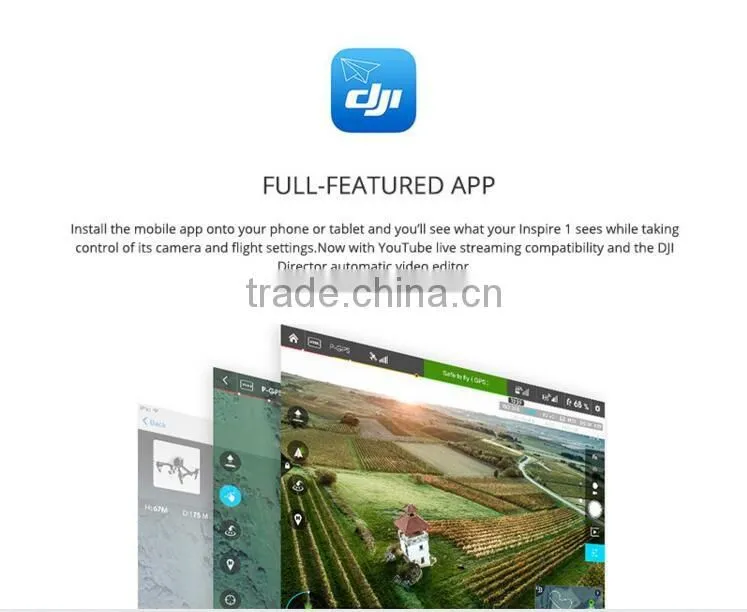

DJI GO App

Mobile Device System Requirements

iOS 8.0 or later, Android 4.1.2 or later

Supported Mobile Devices

* Compatible with iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, and iPad mini 3 Wi-Fi + Cellular. This app is optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus.

* Compatible with Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Nubia Z7 mini, SONY Z3 EXPERIA, MI 3, MI PAD

*Support for additional Android devices available as testing and development continues.
