Home > Products > AC/DC Linear Adaptor > 3V 300mA AC DC Adapter Power Supply with UL CE GS PSE Certification

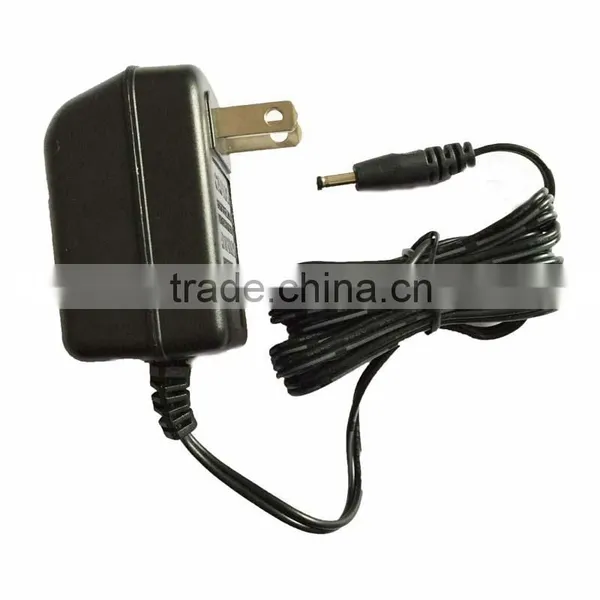

3V 300mA AC DC Adapter Power Supply with UL CE GS PSE Certification

FOB Price

USD $1 - $1.48 / Piece

100 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	OEM	Model Number:	MKD-28
Output Type:	DC	Connection:	Plug In

Product Description

Shenzhen Fuqing Technology Co., Ltd. manufactures power transformers, audio transformers, high-frequency transformers, rectifiers, chargers, switching power adapter etc. We are passionate about what we do, giving you quality products at the right price and providing reliable solutions. That is why we have good name in the fields our product involved including information industry, household appliances, lighting industry, consumer electronics industry. We can produce more than 1000,000pcs Per month with 7 advanced production lines. Besides, We got kinds of SAFETY GENCY APPROVAL from our main markets for our products,like the UL,GS,CE,PSE,CB,3C,etc.

Detailed Images

Product Parameters

INPUT	Input Plug	UL Standard (JP, EU, UK,AU,3C standards available)
	VOLTAGE RANGE	100 - 240 V AC
	FREQUENCY RANGE	50-60Hz
	AC INPUT CURRENT	1.5A max at 230VAC at full load
	INRUSH CURRENT	40A at 230VAC
	LEAKAGE CURRENT	0.75mA max at 240VAC
OUTPUT	VOLTAGE	3V DC
	VOLTAGE RANGE	±5%
	LOAD CURRENT	300mA
	RANGE POWER	0.9W
	RIPPLE & NOISE	≤100mVp-p
	VOLTAGE TOLERANCE	±3%
	LINE REGULATION	±3%
	LOAD REGULATION	±3%
	Turn On Delay Time	<3S at AC 110V and full load
PROTECTION	Over-Current Protection	120%~150% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage Protection	120%~150% Protection type: Shut down output voltage on to recover
	Short Circuit Protection	RTH>70℃ Protection type: Shut down output voltage, repower on to recover
ENVIRONMENTAL	WORKING TEMPERATURE	-20 ℃~50℃
	STORAGE TEMPERATURE	-20 ℃~50℃
	WORKING HUMIDITY	20%~80%RH
	STORAGE HUMIDITY	20%~70%RH

Main Products

Model:MKD-280450200

INPUT:120V AC 60Hz (USA) OUTPUT:3-24V DC

100V AC 50Hz (JP) 50--600mA

220V AC 50Hz(CN)

230V AC 50Hz (EU)

240V AC 50Hz(AU)

Model:MKD-351200350

INPUT:120V AC 60Hz (USA) OUTPUT:3-24V DC
100V AC 50Hz (JP) 50--800mA
220V AC 50Hz(CN)
230V AC 50Hz (EU)
240V AC 50Hz(AU)

Model:MKA-482401000

INPUT:120V AC 60Hz (USA) OUTPUT:3-24V DC
100V AC 50Hz (JP) 50--1500mA
220V AC 50Hz(CN)
230V AC 50Hz (EU)
240V AC 50Hz(AU)

Model:MKA-572402000

INPUT:120V AC 60Hz(USA) OUTPUT:3-24V DC
100V AC 50Hz(JP) 50--2000mA
220V AC 50Hz(CN)
230V AC 50Hz(EU)
240V AC 50Hz(AU)

Certifications

About Us

Shenzhen Fuqing Technology Co., Ltd. was founded in 2004 and produce power adaptor from 2000, Located in Changfeng Industrial Park, Dongkeng Community, Gongming Office, Guangming New District, Shenzhen, China. There are 200 like-minded Staffs in our factory. Covering the area of 2500 m2, our factory is equipped with advanced facilities for production and development. We adopt advanced manufacturing technique and we got the ISO9001 certificate in 2001,and got kinds of SAFETY AGENCY APPROVAL from our main markets for our products. We are aimed at quality and value for money. We are proud of experienced and professional Team, good quality products, Modern equipment, on time delivery and wholeheartedly service.

Our Services
Sample
We offer free adaptor samples within 3 pieces.
Adaptor samples should be sent after we receive your courier fee.

Customization
Product : we can produce your requested product after the comfirmation of our Technicists.
Package : PE Bag , White Box,Blister Box or Customized Packaging.

Choosing Us
Our goal is to be a responsible organization, contributing to our community and producing quality positive products.
Our products are guaranteed to be the best quality we look forward wholeheartedly to providing you with quality products and service.

Packing & Delivery

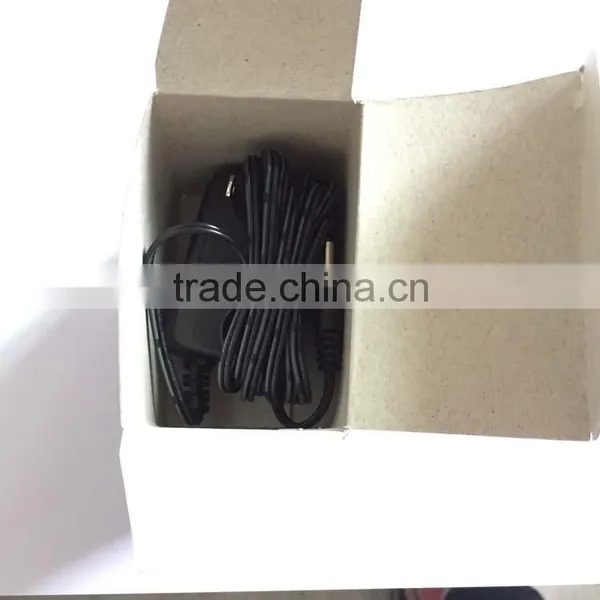

Packaging Details:
Free PE bag or white box for each power adapter
Blister Package or customized please contact us.

Delivery Detail:
International Express: 3-5 workdays
Air Shipping: 5-7 workdays
Sea Shipping: 20-28 days
