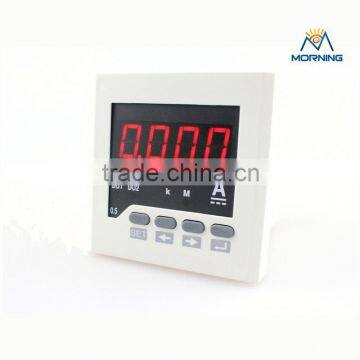

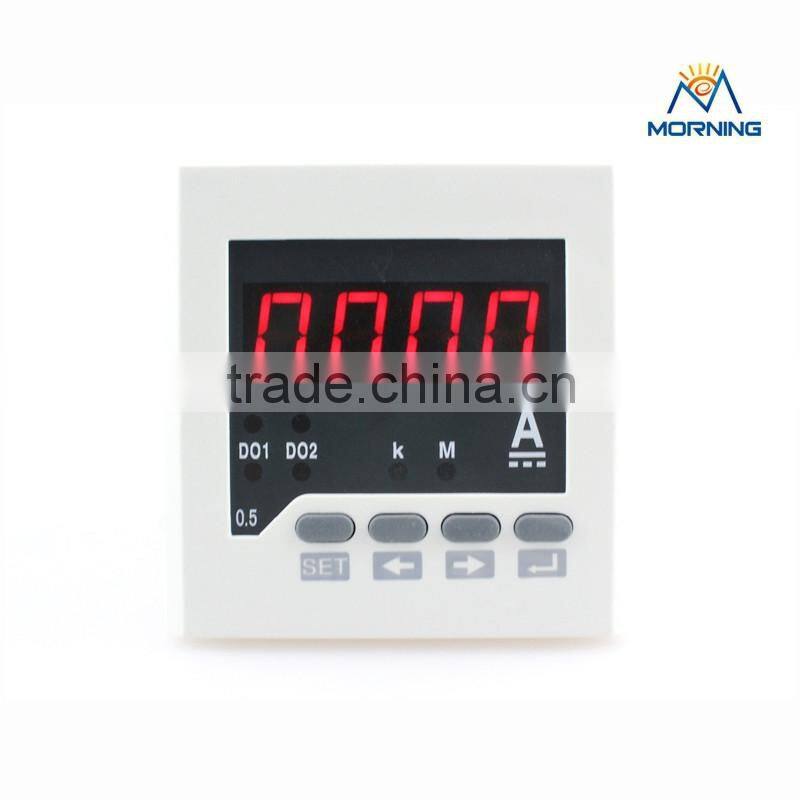

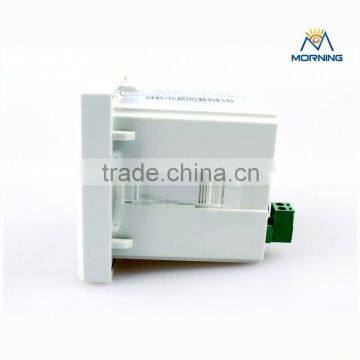

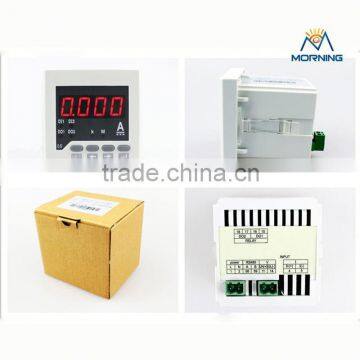

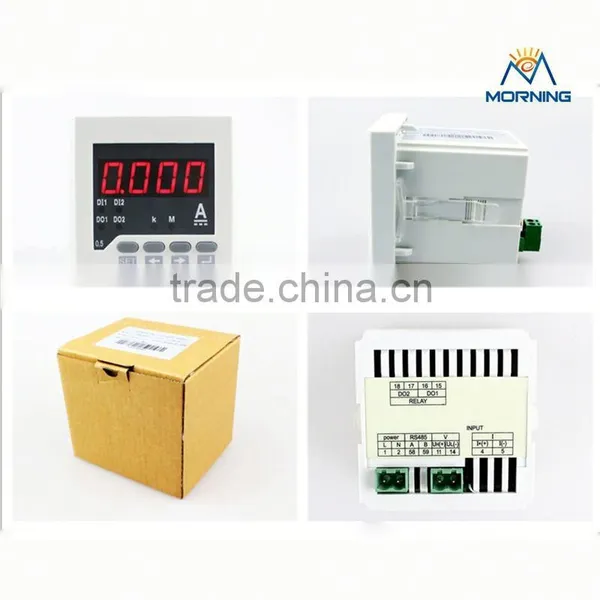

ac current connection digital ammeter

Technical Index

Accuracy Measurement

Current

 class 0.5

Input Measurement

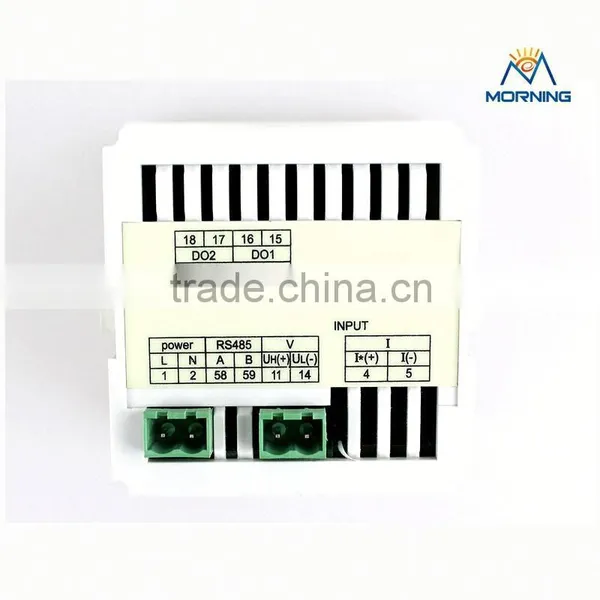

Wiring

Rated value

AC 1A,AC 5A,DC 20mA,DC 1A,DC 5A,DC 75mV

Overload

Sustained:1.2times;Instantaneous:10times/5s

Power consumption

<0.4VA(per phase)

Impedance

<20 mΩ

Frequency

5~65Hz or DC

Power supply

Working range

AC/DC 80V~270V,AC 220V,AC 380V,AC 100V,DC 48V,DC 24V

Power consumption

<4VA

Functional Module

Communication interface

Switching value input

2 loops switching value input, dry joint

Switching value output

2 loops relay output, capability: AC 250V/5A,DC 30V/5A

Transmission output

1 loop analog output: 0/4~20 mA or 0~5/10 V

Environment

Operational environment

-10℃~+55℃

Storage environment

-25℃~+70℃

Relative humidity

≤93 %,in the place without corrosive gas

Height above sea level

≤2500m

Safety

Insulation resistance

> 100MΩ

AC withstand voltage

AC 2KV

Electro Magnetic Compatibility

Electro-Static discharge

class 4

Electrical Fast Transient pulse train

Electrical surge

Outline Dimension

External Dimension( mm )

120×120;80×80;96×48;96×96;72×72;48×48;120x60;160x80

Cutout Dimension( mm )

111×111;76×76;92×45;92×92;68×68;45×45;114x56;152x76

Specification Matching

Model

Function

Measurement

Display

Cutout

Dimension (mm)

External

Dimension(mm)

AC

DC

Switch

input

Switch

output

Transmission

output

Communication

interface

LED

 LCD

ME-AA11

√

-

2

2

1

1

√

-

152X76

160x80

ME-DA11

-

√

ME-AA21

√

-

111X111

120×120

ME-DA21

-

√

ME-AA31

√

-

92X92

96×96

ME-DA31

-

√

ME-AA41

√

-

114X56

120x60

ME-DA41

-

√

ME-AA51

√

-

92X45

96×48

ME-DA51

-

√

ME-AA61

√

-

68X68

72×72

ME-DA61

-

√

ME-AA71

√

-

76X76

80×80

ME-DA71

-

√

ME-AA81

√

-

45X45

48×48

ME-DA81

-

√

   Note: The number of optional extended functions would be the maximum number we can extend in
normal conditions.If you have any special request, please contact with our technical department.
