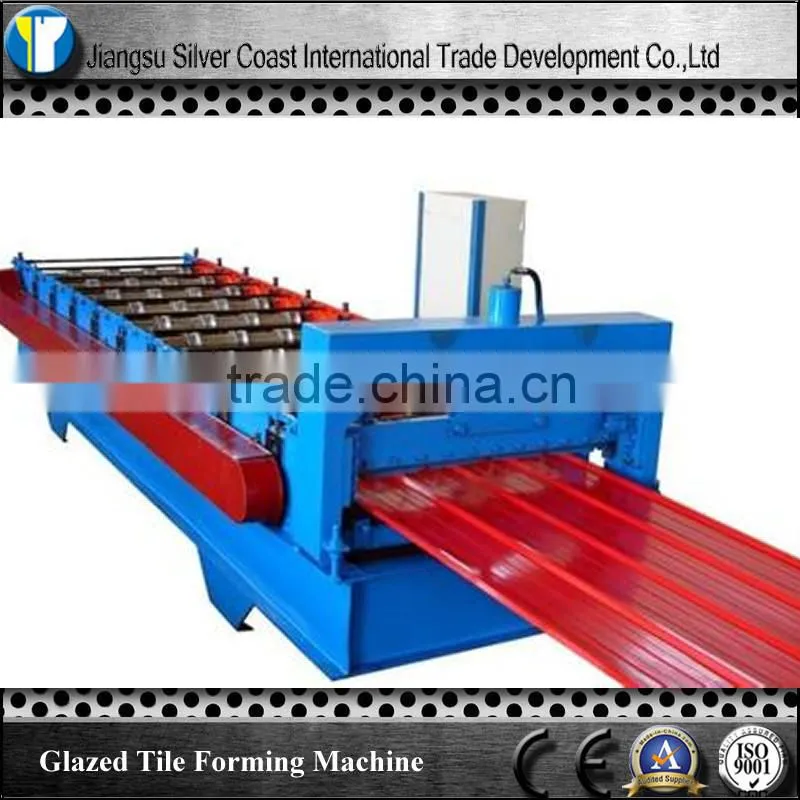

Color tile making machine/ Steel tile forming machine

Specifications

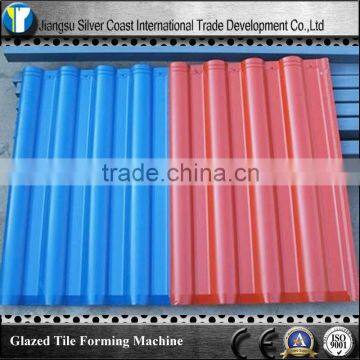

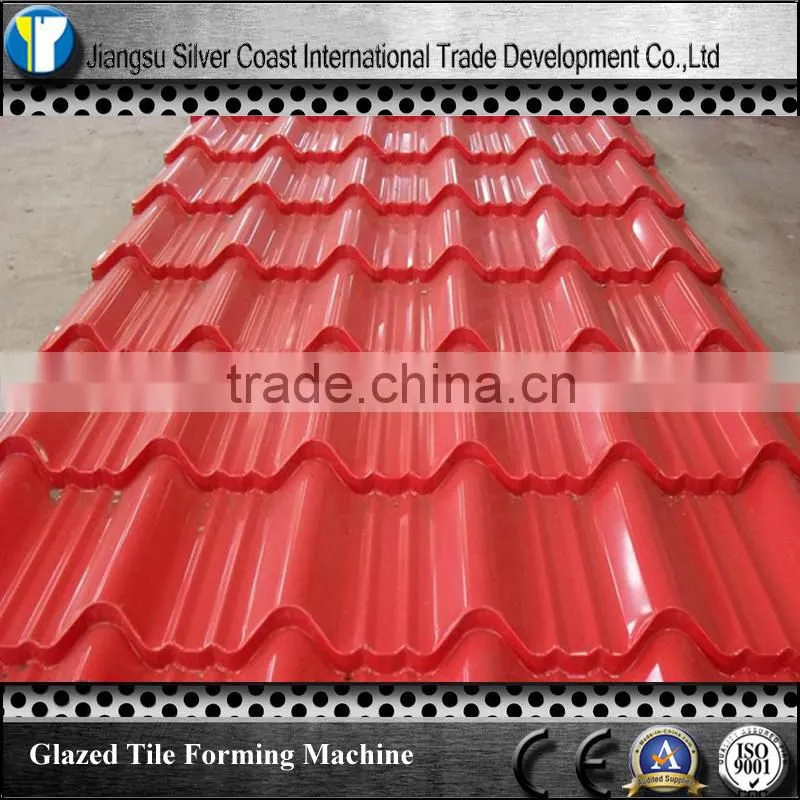

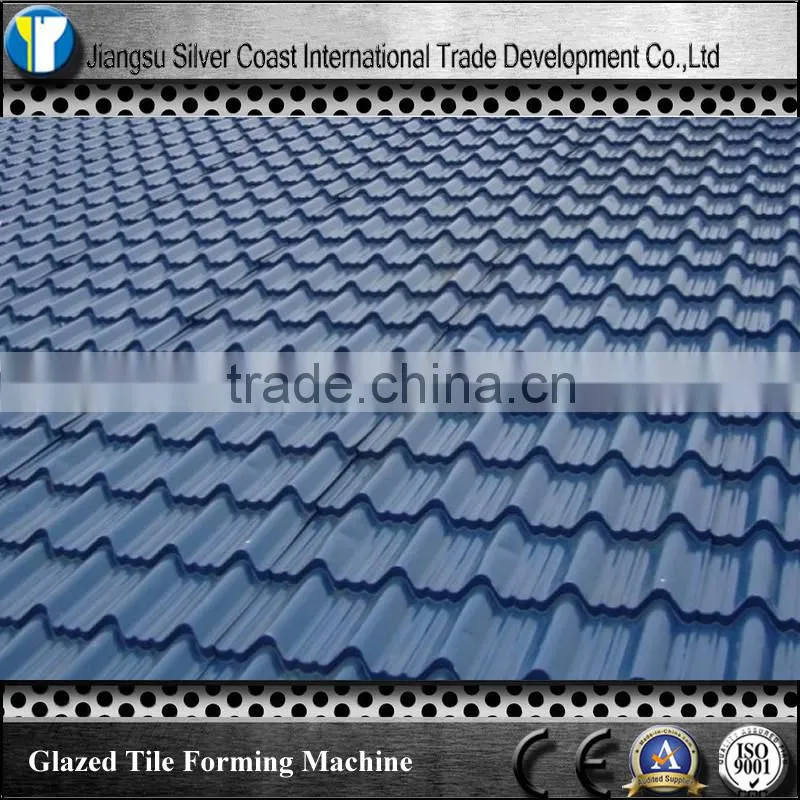

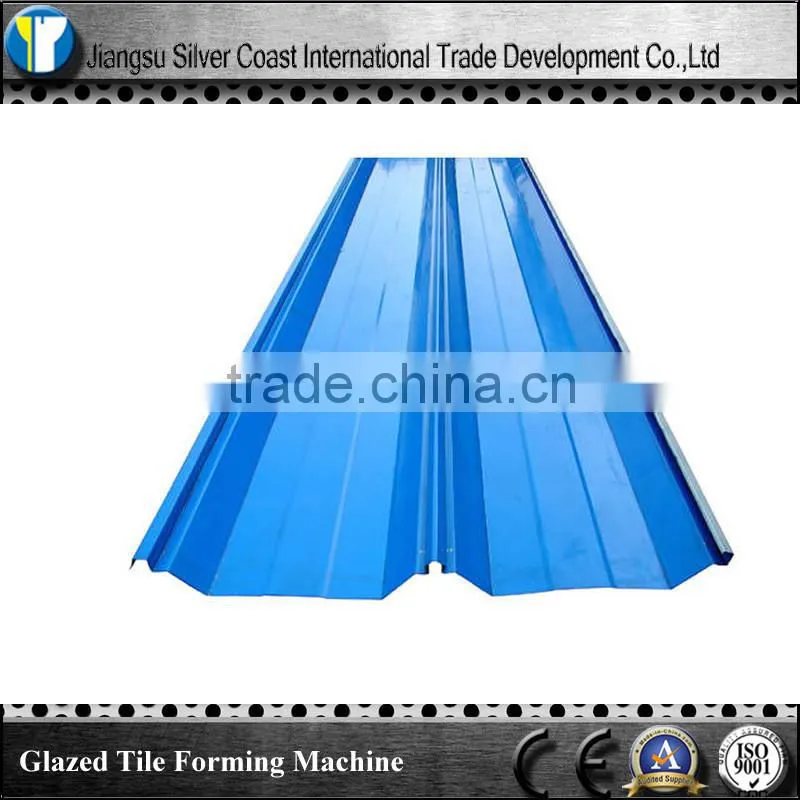

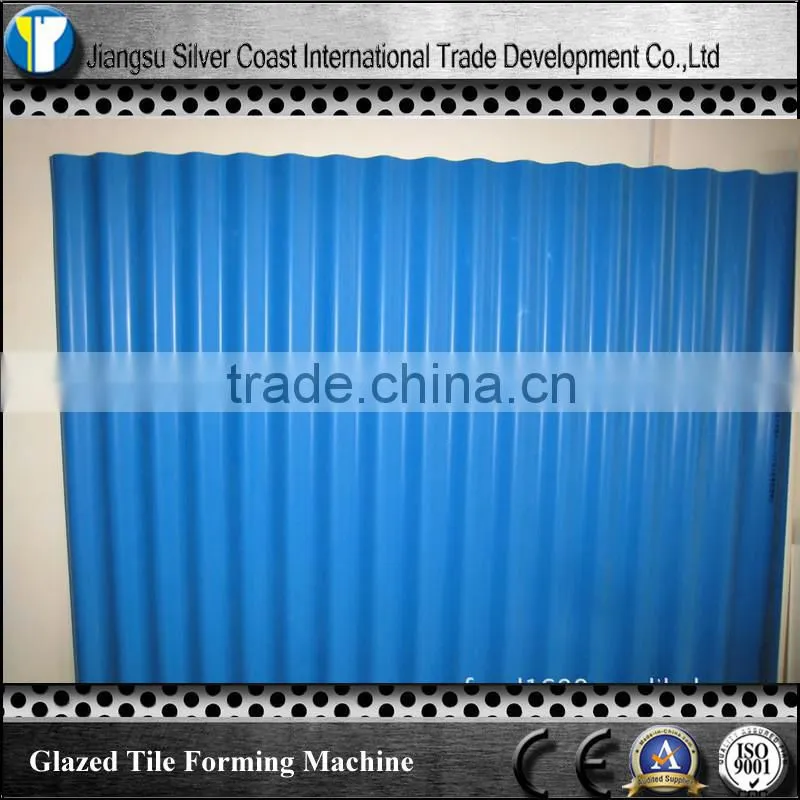

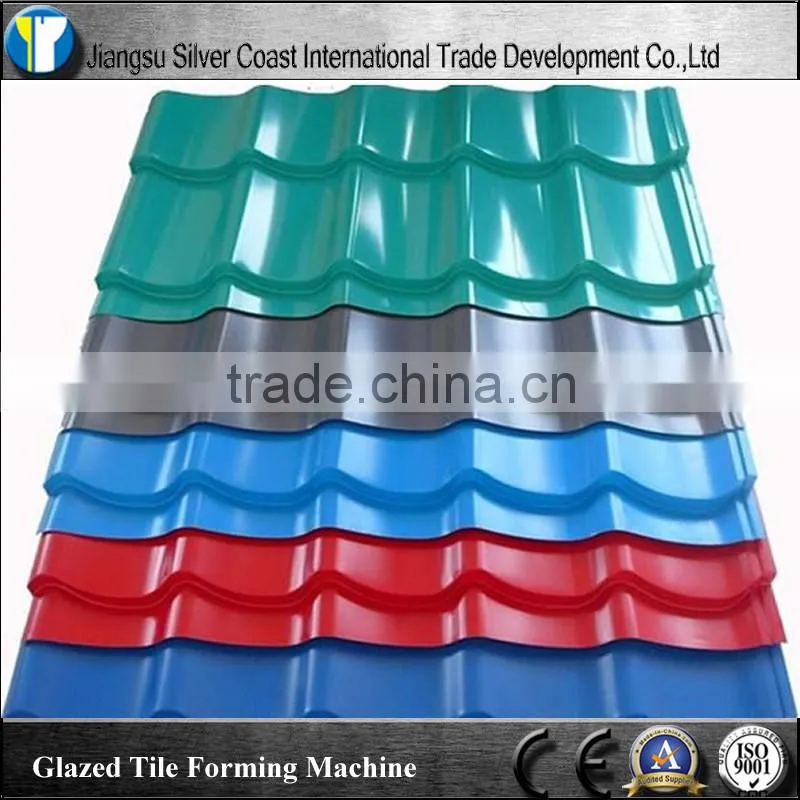

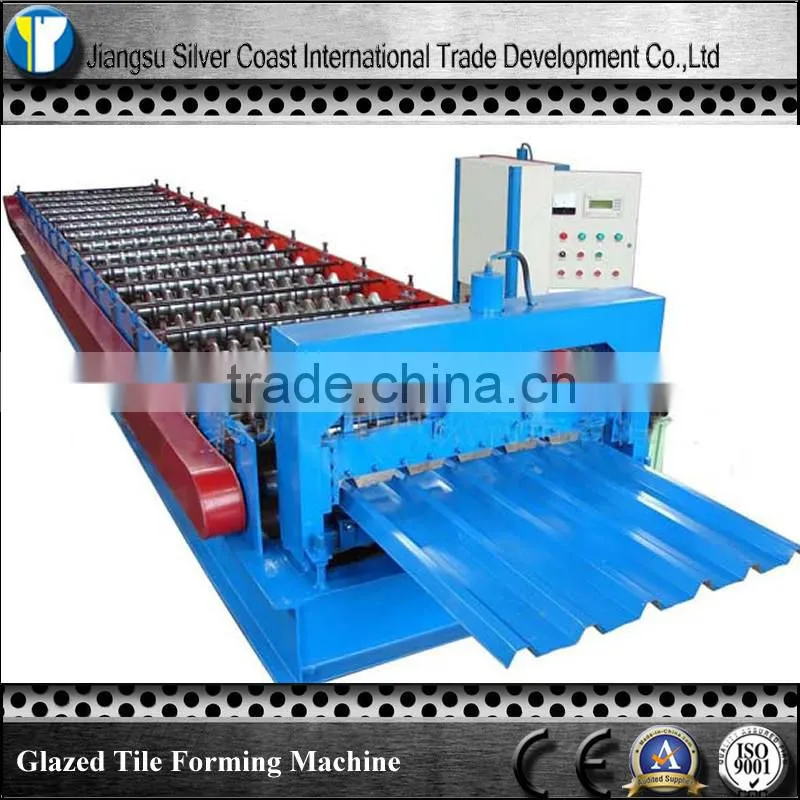

Color Steel glazed roof tile roll forming Machine
1. PLC programm control
2. Little noise and shake

Main specifications:

Color Steel glazed roof tile roll forming Machine
1. PLC programm control
2. Little noise and shake
3. Hydraulic system control, long life.
4. Easy operation



No.	main parameter of roofing cold roll forming machine
1	Suitable to process	Color steel roof
2	Width of the plate	1000mm
3	Roller	up layer:12 rows down layer:18 rows
4	Dimensions	10.5*1.55*1.91m
5	Power	4+4kw
6	Thickness of the plate	0.3-0.6mm
7	Productivity	up layer:2m/min down layer:8-10m/min
8	Material of the cutting blade	Cr12
9	Diameter of the roller	Φ70mm
10	Weight	About 6.5T
11	Voltage	380V 50Hz 3phases
14	Control system	PLC control
15	Forming speed	25-30m/min
16	Panel output speed	5m/min
17	Processing precision	within 1 mm
18	Motor type	hydraulic
19	Voltage	380V 50Hz 3phases
20	Rolling material	high grade 45# steel(plated chrome on surface)





 Work flows:

Decoiler--front shear (optional)--feeding and guilding unit--roll forming unit--step plunching unit--rear shear--output



Advantage:

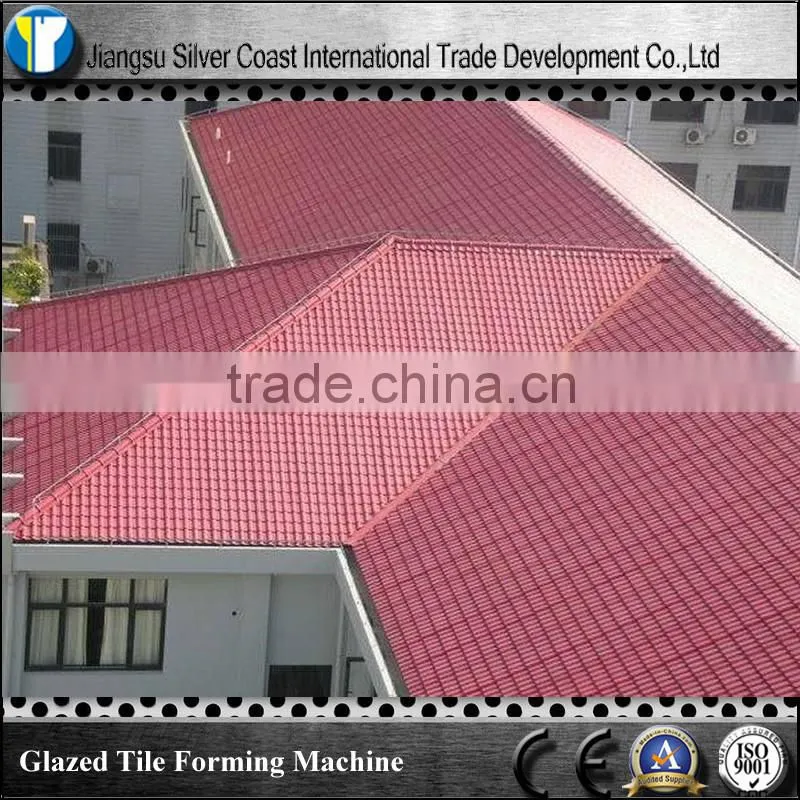

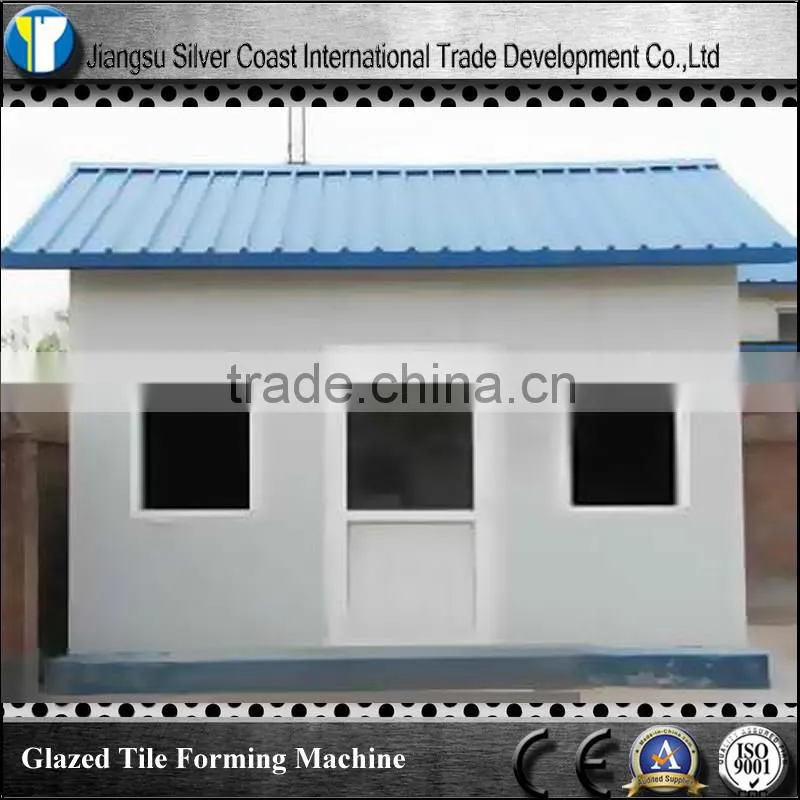

It is cheap, beautiful, classical appearance and grace taste. It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate. With its good quality,cheap price, fixed material, nice appearance and multi-function, it gains great popularity among people.











equipment quality promise:
1, the Company's manufacturing facilities are applicable to the relevant national standards and enterprise standards.
2, the company's products are manufactured to meet the technical requirements and parameters should be listed in the specification and to ensure safety and reliability.
3, the company may send engineers to the demand-side participation to help guidance of installation and commissioning of equipment until the machine is qualified and can be put into use. Also we can help the demand side with training equipment operators and maintenance personnel. (Note: The installation and commissioning of equipment abroad, we will take cost in accordance with the cost of a standard international practice)
4 Equipment has 1 year warranty, during the warranty period, the company can track service and maintenance.



Our services:

1.Oversea engineers:
We provide oriented after-sales service including the oversea engineers tranning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where you are.

2.Learning trip:
We welcome engineers from your side to learn the technical design and normal maintenance here,  this will help you easyly to understanding.

3.English Manual:
We have Mannual to show you along with the machine.So you can learn this from the existing document to deeper your knowledge and understanding.

4.Face to face to teacing:
Through internet video face to face for machine teaching,because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.

5.Through all the ways,we will guarantee the service quality and ensure you will be well helped anything anywhere.





Our company:

Jiangsu Yaoqiang Technical Group is a dealers holding type and high-tech enterprise. It mainly supply welding, cutting, milling, pipe producing production line as well as electrical automation equipment. The group consists of Jiangsu Silver Coast International Trading Development Co., Ltd (locate in Wuxi)& Dongtai Yaoqiang Mechinery Manufacture Co., Ltd. While Wuxi company, which is located in National technical industry park, i. e.The Wuxi Liando U Valley, besides the Taihu lake with beautiful scenery and renowned humanities, is mainly focus on enterprise blue print, R&D, marketing,trading, management

and finance. The Dongtai plant is devoted to technics, manufacture, process control, test and after-service, which locates at Dongtai Tangyang Xinhong Machinery industry park, in the wet land area off the seashore of Huanghai.



So we are manufacturer and trader. The Wuxi part is for trading and Dongtai part is forproducing.



Here we make a promise to you all: we will offer you the products with the ideal price and good quality.
