Product Details

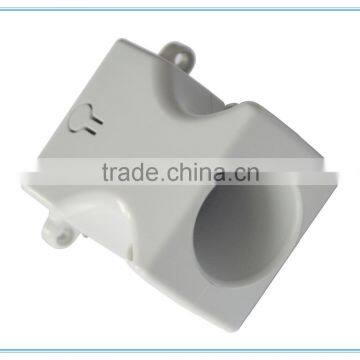

| Place of Origin: | Guangdong, China | Brand Name: | DYP | Model Number: | ME007-ULS V1 |
| Usage: | Position Sensor | Theory: | Ultrasonic Sensor | Output: | Digital Sensor |
Product Description
Features:
1) High degree of protection;
2) Wide usage range, low-power dissipation;
3) Simple to use, handle easily;
4) High measuring accuracy and resolution;
5) Small detection blind area, long detection range;
6) With high precision temperature output and temperature compensation function;
7) Varied output mode: serial output, PWM output, digital output;
Applications:
1) High precision distance measuring;
2) Obstacle-avoidance, automatic control;
3) Objects close to, exist, perceive;
4) Traffic control;
5) Security and protection, industrial control;
6) Artificial intelligence, teaching and research;
Electrical parameters:
| PWM output | Serial output | Digital output | |
Supply voltage | 3.3V-12V | |||
Standby current | Less than 200uA | Less than 400uA | ||
Average current | Supply voltage is 5V, cycle is 250MS, average current is 2mA | |||
Center frequency | 40 KHZ | |||
Blind zone | 250 MM | |||
Max. detection distance | More than 8000 MM | |||
Emission angle | 8° | |||
Work cycle | More than 60MS | 250 MS | ||
Trigger signal | Falling edge trigger | GND connection | ||
Test precision | ±1CM | |||
Resolution of ranging | 1 MM | |||
Temperature compensation | Non compensation | compensation | ||
Temperature output | None | Have | None | |
Operating temperature | -25℃—70℃ | |||
Storage temperature | -40℃—85℃ | |||
More details please kindly contact us!!!!
