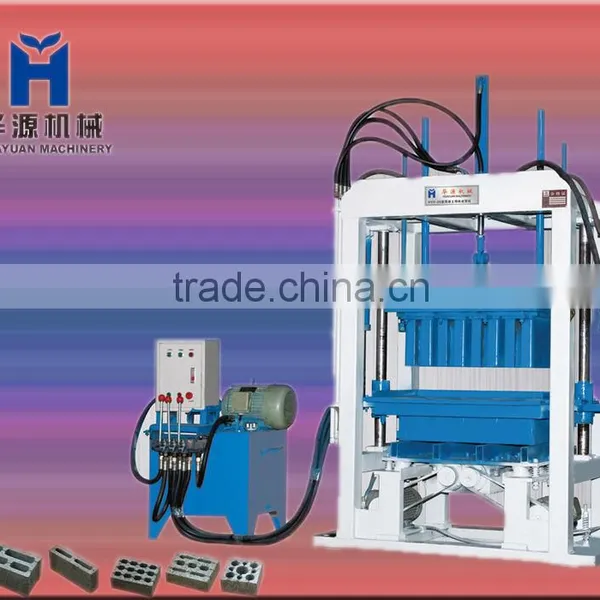

China color paver block making machine(4-25)fujian

Specifications

China color paver block making machine(4-25)fujian
hydraform interlocking block making machine
used concrete block making mach

HYM 4-25 cement block making machine

 hydraform interlocking block making machine

used concrete block making machine

solid block making machine

HYM high competitive and low price cement block making machine

HYM low cost cement block making production line

china HYM paver block making machinery

1,Main technical Specifications::

1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.

2. Easy to change mechanical action according to different raw materials.

3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.



Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .

multiple uses, it can produce all type of standard building blocks by changing mould.

1,Multi-holes block and hollow block .

2,Ceram site heat preservation block.

3,Composite heat preservation concrete block

The above production come with good heat preservation performance, and it meets the new national energy conservation policy.





Cycle Time	25-30(s)	Total Power	19.7(kw)
Vibration Type	moto vibration	Vibration Frequency	3800-4500(Times/sub)
Machine Dimension	5200×4350×2700(mm)	Pallet Size	850×560×20(mm)
Vibration Force	44KN	Gross Weight	3200(kg)
Production/Mould	4pcs/m (390x190x190mm) 12 pcs/m (240x115x90mm) 24 pcs/m (240x115x53mm) 15 pcs/m (200x100x60mm)	Productions/8hours	5236--7680pcs(390x190x190mm) 17280-23040pcs(240x115x90mm) 34560-46080pcs(240x115x53mm) 9636--28800pcs (200x100x60mm)
