GRP Pipe Production Line-Winding Equipment

The most economic and practical type machine to produce composite pipe,

your best choice.

The standard collection of the whole set machine:

1. Resin feeding system(include the reisn tank with agitator, the pump, the chain and pipe to offer the resin automaticly)

2. Lining making machine(the platform, the vehicle, the machine head and tail)

3. Pipe winding machine(the pipe winding platform, the vehicle, the resin bath, the machine head and tail)

4. Curing station(machine head and tail)

5. Trimming machine(machine head and tail)

6. Demoulding machine(the Longmen type or the chain type for small machine)

      You can choose the machine according to your demand. We can sell you the whole set machine and any part of it. We have our own R&D department, who design the control systems and programs, and improve the technology year by year.

We provide the technical data freely:

Equipment layout drawing

Electrial wiring diagram

Operating instruction

FRP mold making drawing

Free training in our factory

According to the pipe diameter, we have different machine models:

FW-300(DN30-300mm)

FW-500(DN50-500mm)

FW-1000(DN200-1000mm)

FW-2000(DN500-2000mm)

FW-3000(DN500-3000mm)

FW-4000(DN800-4000mm)

The lining making machine

        The pipe winding machine with sand adding system, you can choose according to your need, both wet and dry.

The advantages of our machine:

1. Used composite material to wind pipe for energy transport, industrial water, drinking water, drainage and irrigation system

2. The machine is highly automatic and PLC control system

3. High Production speed and raw material utilization, low cost

4. Adopts discontinuous winding technology

5. Good working condition and stable performance

6. Stable pipe quality and easy connection of bell and spigot

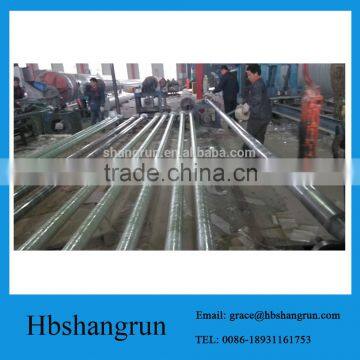

                                finished pipes
