Home > Products > Portable Diesel Generator > 5kw magnetic power generator 60Hz

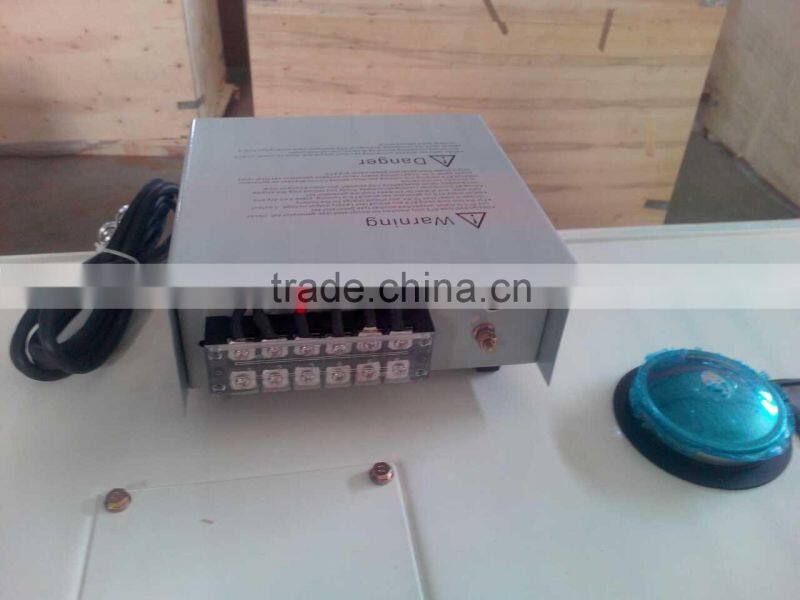

5kw magnetic power generator 60Hz
USD $300 - $490.17
/ Set
1 Set(Min.Order)
- 1000 Set / Sets per Month
- Fuzhou Port
- T/T
You May Like
Product Details
| Place of Origin: | Fujian, China | Brand Name: | Saint | Model Number: | SMLD6500SE, Saint Meilan |
| Output Type: | AC Three Phase | Speed: | 1500RPM/1800RPM | Frequency: | 50/60Hz |
| Rated Power: | 5kva--150kva | Rated Voltage: | 110V/240V, 220V/380V, 230V/400V, 240V/415V | Rated Current: | 20-2000A |
Product Description
Specifications
Portable Generator1 Copper wire
2 Speed control
3 Machine manufacturing
4 EPA for US & Canada standard
5kw magnetic power generator 60Hz
Open and Soundproof
| DIESEL GENERATORS | ||||
| OPEN FRAME Series | ||||
| Model | DG2200/E | DG3600/E | DG5000/E | DG6000/E-3 |
| FOB Fuzhou port,China | ||||
| Frame Type | Open | Open | Open/silent | Open/silent |
| Frequency(Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Voltage(V) | 110~240 | 220/380 110/190 | ||
| Rated Power (kVA) | 1.8 / 2.0 | 2.8 / 3.0 | 4.5 / 5.0 | 5 / 5.5 |
| Max.powert(kVA) | 2.0 / 2.2 | 3.0 / 3.3 | 5.0 / 5.5 | 5.5 / 6 |
| Phase | Single | 3-phase | ||
| Power factor | 1.0 | 1.0 | 1.0 | 0.8 |
| Diesel Engine Type | 170F/FE | 178F/FE | 186F/FE | 186F/FE |
| Max. Power Output (hp) | 4.0HP | 6.0HP | 9.0HP | 10HP |
| Diesel Engine Type | Air-cooled, 4-stroke,Vertical,Single-cylinder, Direct injection combustion. | |||
| Bore*stroke(mm*mm) | 70*55 | 78*62 | 86*70 | 86*70 |
| Displacement (cc) | 211 | 296 | 406 | 406 |
| Compression rate | 20:01 | 20:01 | 19:01 | 19:01 |
| Ignition System | Explode Ignition | |||
| Lube oil system | Pressure splash Type | |||
| Starting System | Recoil or Electric | |||
| Lube oil capacity(L) | 0.75 | 1.1 | 1.65 | 1.65 |
| Fuel Tank Capacity(L) | 12.5 | 12.5 | 12.5 | 12.5 |
| Dimension(L*W*H)(mm) | 630*475*560 | 700*475*580 | 720*490*620 | 720*490*620 |
| N.W/G.W (kg) | 60/65 | 78/83 | 91/96 | 91/96 |
| 20ft(set) | 180 | 160 | 105 | 105 |
silent :144 pieces for 40ft container
open:108 pieces for 20ft container
Certificate:SONCAP,CE,COI,SGS,BV,EPA
Characteristics:
1. Powered by air-cooled 4-stroke diesel engine.
2. 12-volt DC auxiliary charging (car/boat battery).
3. Injection nozzle with electric control clique.
4. Low oil alert system shuts down the engine automatically.
5. Wheels for easy move.
6. Key operated ignition switch for the standard electric starter.
7. Standard equip with 24Ah dry battery.
8. Hydraulic-Magnetic circuit breaker.
Package with pallet
Diesel Generator,Gasoline Pump,Water Pump,Protable Genset,Moving Trailer
Workshop
ATS
Delivery time: 2 Weeks!
Factory near Fuzhou sea port, reduce delivery time to your country
