China origin best portable 1x2HD Splitter 1 in 2 Out 3 Ports hdmi splitter to coaxial

 China origin best portable 1x2HD Splitter 1 in 2 Out 3 Ports

hdmi splitter to coaxial

Product Description:

1)HD Splitter
2)plastic casing
3)Chipset:Taiwan  EP 9132n

 4)Port: 1 input  + 2 output
5)Product weight:107g
6)Product size:61*62*21

Features:

• 1x4 HDMI splitter distributes 1 HDMI source to 4HDMI displays simultaneously
• HDMI 1.3; HDCP 1.2
• Support 1080P + 3D; Support CEC; Support Deep Color 30bit, 36bit
• Support All Known Audio Format Including Dolby TrueHD and DTS HD Master Audio
• Support Output Up To 25meter AWG26 HDMI Cable
• 1x4 HDMI splitter distributes 1 HDMI source to 4 HDMI displays simultaneously.
• It offers HD video solution for super market; shopping Mall; HDTV, STB, DVD and projector factory; data control center; information distribution; conference room presentation; education and training, corporation show room, luxurious house, etc.

Specification:

1. Input Video Signal: 0.5 -1.0 volts p-p
2. Input DDC Signal: 5 volts p-p (TTL)
3. Max Single Link Range: 1920X1200,1080P
4. HDMI Resolutions: 480i/576i/480p/576p/720p/1080i/1080P
5. DVI Resolutions: 480p/576i/576p/720p/1080i/1080p
6. HDMI Version: HDMI 1.3
7. Bandwidth: Up to 225MHz
8. EDID Duration: 6 seconds
9. Power supply: DC 5V/2A

CONNECTION AND OPERATION:

1. Connect the HDMI input source and output devices into the HDMI Splitter. please refer to the Connection Image.
2. Connect the DC 5V power supply into the splitter. Please make sure no other voltage power supply should be connected. Power supply with higher voltage may damage the splitter.
3. Turn on the power switch.
4. When all input and outputs are connected and turned on, the corresponding LED will light.Attention: Insert and Extract cable gently.

The 1x4 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Package including:

1 * HDMI Splitter

1 * User Manual

Notes:

Pls use the machine as the instruction listed to keep the long use lifetime of the machine.

• The machine should be placed at the spot far from the Damp, HighTemperature, Dusty, Erosive, and oxidative environment.
• All parts will be free from the strong shake, hit, fall.
• Touching the power adaptor with the wet hands is prohibited.
•  Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
•  Pls turn the power off when the machines is not used for long time.
• Pls do not open the cover and do not touch the inside parts.
• Pls use the original factory power adptor.

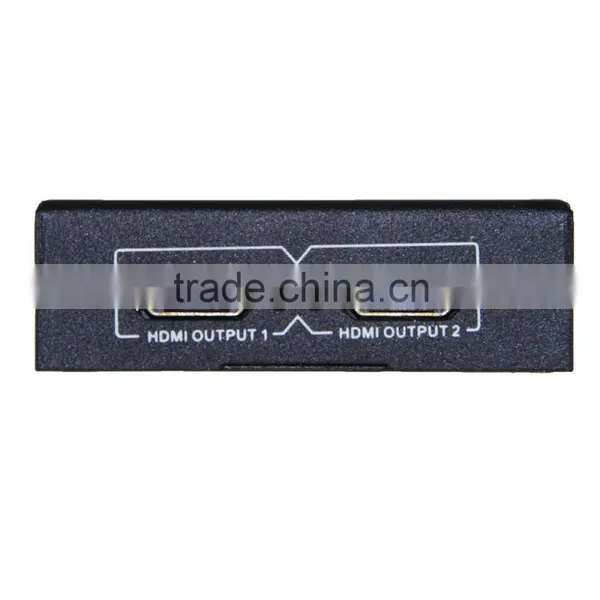

Pictures show:

Product certification:
