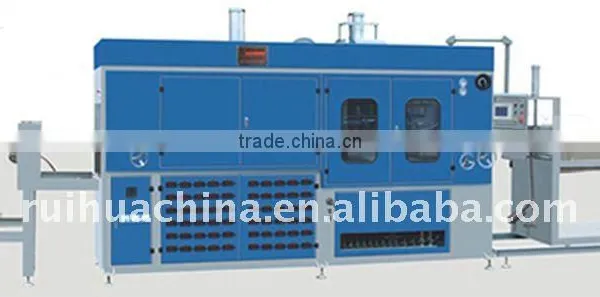

PS Vacuum Forming Machine

Specifications

PS Vacuum Forming Machine is for forming PS vacuum forming product and different blisters.

DXS-700/1200A-1 PS vacuum forming machine is designed by the principle of mechanical-electrical-pneumatic integration. It adopts Siemens PLC control system, panel and digital power control adjustment. This fully automatic forming equipment is for thermoforming plastic sheets integrating feeding and heating with forming, cooling, mold ejecting and cutting. This machine features performance and convenient operation.



Application Area:
It is suitable for thermoforming PS, HIPS, PVC, PET, PP and flocking sheets to produce various blister packaging and blister trays; including: curatorial injection tray,mobile phones tray, cookies trays, egg tray and disposable tableware.



Main technical parameters:
1) Length of forming: 760 - 1200mm
2) Width of forming: 500 - 700mm
3) Height of forming: 165mm
4) Production speed: 60 - 720 cycles/h
5) Power of oven: 24kW
6) Power of vacuum pump motor: 3kW
7) Vacuum pump capacity: 100cbm/h
8) Power of air compressor: 15kW
9) Air displacement of air compressor: 2cbm/min
10) Voltage: 380/220V 50Hz
11) Overall dimensions: 7950 x 1450 x 2550mm
12) Weight: 3000kg
