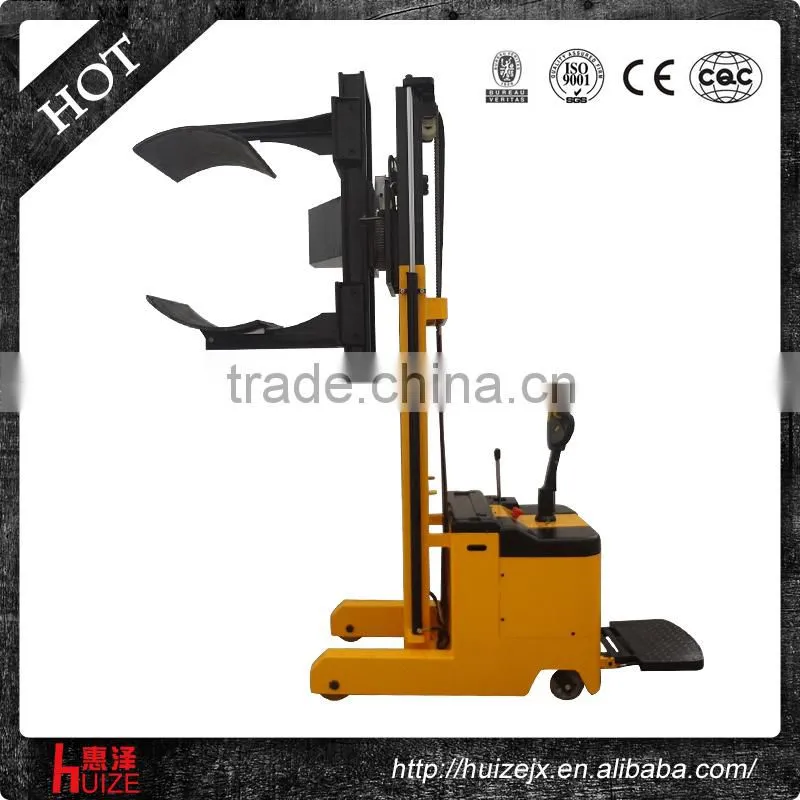

7-made in china Full electric clamping and flipping paper truck

13-3-TAIZHOU HUIZE MACHINE CO.,LTD  FACTORY ALL PRODUCTS PRICE LIST (2015)

13-3-ORDERNo130003-MODEL :HZFDDDDZ-03 product cost

FDDDDZ-200-3.0-90-210-0

1

Characteristic

1.1

Name

Full electric clamping and flipping paper truck

2.1

Model

HZFDDDDZ-03

3.1

Mast series

Double

4.1

Dynamic form

Battery

5.1

Operation type

Standing

6.1

Braking mode

Electromagnetic braking

7.1

Load capacity

Q(Kg)

200

8.1

Flipping way

Electric rotation

9.1

Hydraulic cylinder

Single

10.1

Color

Red, yellow

11.1

Surface treatment

Paint

2

Application

12.2

Main application

Remove and shift in the warehouse and workshop in paper

industry

3

Wheel

13.3

Wheel type

Polyurethane

14.3

The number of driving wheel / balance wheel / loading wheel

1/2/2

4

Size

15.4

Lifting height

h3(mm)

3000

16.4

Fixture minimum height

h2(mm)

540

17.4

Overall height when fixture up to maximum height

h4(mm)

3500

18.4

Overall length

L1(mm)

2245

19.4

Overall width

b1(mm)

1429

20.4

Fixture size

Φf

Φ1000

21.4

Flipping angle

Unidirectional turn 90°

22.4

Overall height

h1(mm)

2000

23.4

Front wheel size

mm

Φ150*50

24.4

Driving wheel size

mm

φ250*80

25.4

Balance wheel size

mm

Φ150*50

26.4

Channel width

Ast(mm)

1500

27.4

Minimum channel width truck turning around

Ast(mm)

3000

28.4

Turning radius

Wa(mm)

2500

5

Performance

29.5

Walking speed, loaded / unloaded

Km/h

4/6

30.5

Lifting speed, loaded / unloaded

mm/s

40/45

31.5

Falling speed, loaded / unloaded

mm/s

50/45

32.5

Climbing gradient, loaded/unloaded

%

6/8

33.5

Braking distance, loaded / unloaded

mm

500/400

6

Driving

34.6

Driving motor power

KW

1.2

37.6

Lifting motor power

KW

2.5

38.6

Battery voltage / capacitor

V/Ah

24/210

39.6

Battery repeated charging times

750

40.6

Battery weight

Kg

187

41.6

Charger specification

24V30A

7

Weight

42.7

Gross weight (including package) / net weight

Kg

864/860

43.7

Charger gross weight (including package) / net weight

Kg

6.4/6

8

Production and delivery

44.8

Monthly production capacity

Set

80

45.8

Delivery time per one set

Day

20

46.8

Delivery time per ten sets

Month

1

9

Packaging and transport

47.9

Packing method

Overall packaging

48.9

Packaging

Angle iron + bubble wrap

49.9

Package size

L/B/H(mm)

2300*1500*2050

50.9

Charger package size

L/B/H(mm)

420*210*190

51.9

Matching boxes of each product

2

52.9

Number of 20-foot containers

Set

7

53.9

Number of 40-foot containers

Set

14

10

Others

54.10

Product certification

CE

55.10

Product declaration name

Other handling and loading equipment

56.10

Deliver time

days

25days after chine huize fork lift factory received first T/T30%

57.10

HS code

8428909090

58.10

Order No

130003
