2014 Best Sale Paper Cup Machine ,paper cup machine germany

FOB Price

USD $6,500 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port Ningbo/Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Product Type:	Paper Cup Machine	Processing Type:	Paper Folding Machine
Place of Origin:	Zhejiang, China	Brand Name:	Victory	Model Number:	SZB/2w
Voltage:	220V/380V	Power(W):	4.5Kw	Dimension(LWH):	250013001700mm
Weight:	1500Kg	Certification:	CE	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

paper cup machine germany
SZB/2W Paper Cup Making Machine both make Single PE paper cups and Double PE paper cups

paper cup machine

Product Description

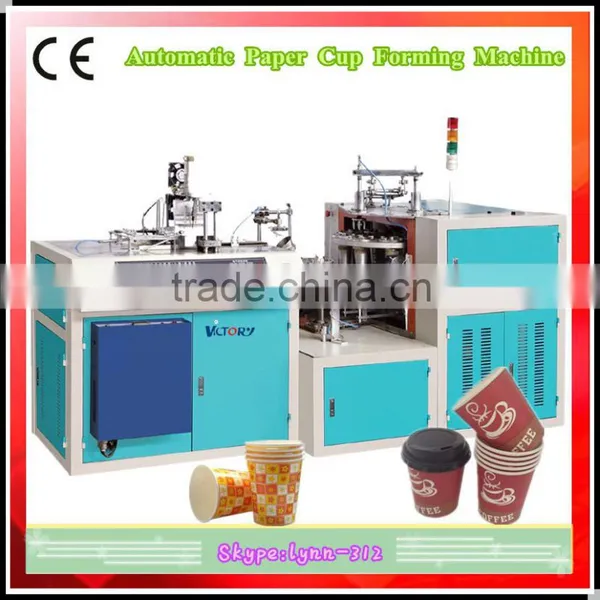

MACHINE DESCRIPTION

SZB/2W Double sides PE coated paper cup making machine is an equipment can produce both for Single side PE paper cups and Double sides PE paper cups,it compared to the original SZB/W Single side PE paper cup machine,this machine has up to a better quality and beautiful appearance with Ultrasonic welding function.These paper cups suitable for both hot and cold drinking,such as coca cola,ice cream and coffee etc.

MAIN TECHNICAL PARAMETER

Model	SZB/2W-9	SZB/2W-12	SZB/2W-18	SZB/2W-22
Production capacity	50-60PCS/min	45-55PCS/min	40-50PCS/min	35-45PCS/min
Required paper	150-400gsm Single Side PE Paper or Double Sides PE Paper	150-400gsm Single Side PE Paper or Double Sides PE Paper	150-400gsm Single Side PE Paper or Double Sides PE Paper	150-400gsm Single Side PE Paper or Double Sides PE Paper
Cups Range	(A)Top Dia:50 -80MM ,(B)Height:35-95MM (C)Bottom Dia:35-60MM , (D)Knurling:5 -10 MM	(A)Top Dia:50 -85MM ,(B)Height:35-115MM (C)Bottom Dia:35-70MM , (D)Knurling:5 -10 MM	(A)Top Dia:60 -128MM ,(B)Height:45 -140MM (C)Bottom Dia:50 -97MM , (D)Kurling:5 -10 MM	(A)Top Dia:60 -128MM ,(B)Height:45 -180MM (C)Bottom Dia:50 -97MM , (D)Knurling:5 -10 MM
Total power	220/380V 50HZ 4.5KW
Air supply requirement	Working pressure: 0.4-0.6working gas volume: 0.5m3 /per minute
Weight	1350kg	1400 kg	1600kg	2000kg
Overall dimensions (LWH)	25001300 1700mm	26501300 1800mm	28501300 1900mm	30001400 2000mm

Note:We can make the paper cup machine suitable for your requirement.
