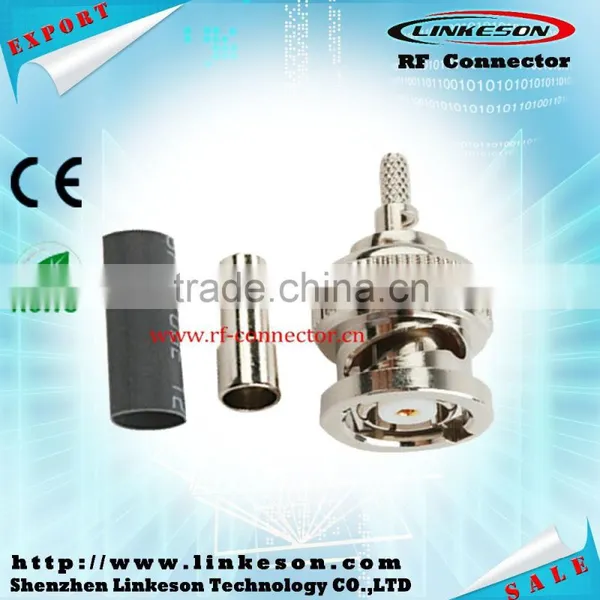

Manufacture BNC female coaxial connector for RG316 RG174
- 5000 Piece / Pieces per Month
- shanghai or shenzhen
- T/T Credit Card
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Linkeson, Linkeson | Model Number: | Manufacture BNC female coaxial connector for RG316 RG174 |
| Type: | Other, BNC, Manufacture BNC female coaxial connector for RG316 RG174 | Application: | Other, RF,automotive,power,microwave,audio and video,antenna,WIFI, RF,automotive,power,microwave,audio and video,antenna,WIFI | Gender: | Other, Female, female |
Product Description
Hi welcome to our page
Shenzhen Linkeson Technology Co.,LTD
bnc to rj45 converter
anufacture BNC female coaxial connector for RG316 RG174
| Key Performance | |
| Temperature range | -65℃ ~ 165℃ |
| Insulation resistance | ≥5000MΩ |
| Characteristic impedance | 50Ω/75Ω |
| Dielectric Withstanding voltage | 750V(r ms) |
| Frequency range(50Ω) | 0~4GHz(50Ω) |
| Frequency range (75Ω) | 0~2GHz(75Ω) |
| VSWR | ≤1.30 |
| Voltage rating | 500V(r ms) |
| Disengage force | ≥0.6N |
| Contact resistance Center conductor | ≤1.5mΩ |
| Contact resistance Outer conductor | ≤1mΩ |
| Durability | 500 Cycles |
| Material And Plating | |
| Material And Plating | Brass , nickel plated |
| Male center contacts | Brass , gold plated |
| Female center contacts | Beryllium copper or phosphor bronze , gold plated |
| Insulators | PTFE |
| Gaskets | Beryllium copper , gold plated |
| Crimp ferrules | Copper alloy , gold or nickel plated |
bnc to rj45 converter
1.Fedex,UPS,EMS,DHL or By Sea, By Air
2.Sample:3 working days
3.Order: 5 working days
4.Certifications-CE/ROHS/Reach,ISO9001:2008
bnc to rj45 converter
Our advantages:
1. Faster delivery: 5 workdays.
2. Customized packing and customer's logo are accepted.
3. Sample order is welcome and it can be free if you are real customer.
4. Accept various transportation ways. like by express, by sea, by air and also specified freight company.
5. Professional factory directly sale all over the wrold.
bnc to rj45 converter
To know more about us:
1.Fast delivery 3 days for sample order,5 days for formal order
2.High warranty,strictly test by QC before shipping
3.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime
4.Certifications-CE/ROHS/Reach,ISO9001:2008
5.Strong production ablility:-Monthly output is over 600000pcs
6.High quality and low price
bnc to rj45 converter
Any material, any package, any logo acceptabe, free sample service, leave an inquiry to know more details about Price,Packing,Shipping and Discount.
