Home > Products > panel size trimming saw > veneer lathe machinery wood band saw plywood machinery
veneer lathe machinery wood band saw plywood machinery
- 40 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Condition: | New | Type: | Other, Frame Saw | Place of Origin: | Shandong, China |
| Brand Name: | JINLUN | Model Number: | ZDJ-4X8 | Voltage: | 380V/50HZ/3PH |
| Power(W): | 42kw | Dimension(L*W*H): | 8000*5000*1200mm | Weight: | 4500kg |
| Certification: | CE ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
veneer lathe machinery wood band saw plywood machinery

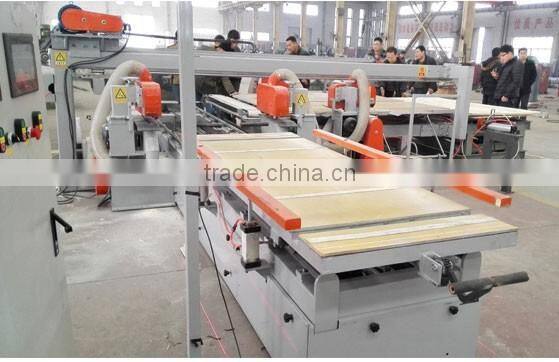

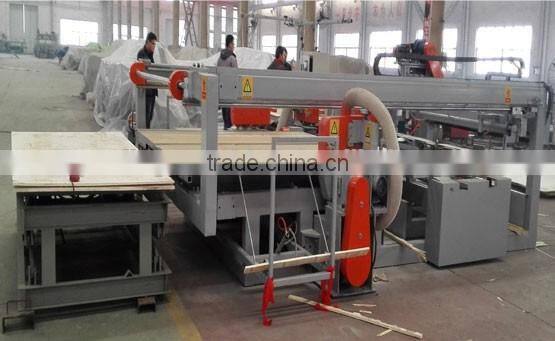

This plywood saw cutting machine is composed by infrared positioning, pre-loading device, longitudinal trolley fasten part, longitudinal trolley chains transmission,longitudinal saw heads,transverse trolley,transverse saw heads, transverse trolley chains transmission,automatic stacker.all working process is controlled by PLC.So in plywood /particle board/block board production,final size cutting will be completely automatic edge cutting and stacker.
Parameters:
Model Number: | ZDJ-4X8 | Use: | Plywood process |
Power(W): | 36KW | Voltage: | 380V/440V |
Capacity: | 8-12pcs/min(18mm) | Cutting speed: | 10-70mm/min |
Guiding method: | infrared guidance | Control method: | CNC |
Lateral saw cutting size: | 900-1300mm | Long saw cutting size: | 1830-2600mm |
Saw blade dimension: | Diameter 305mm | Total power: | 36KW |
Dimension(L*W*H): | 8000*5000*1200mm | Weight: | 4500KG |
Advantages of plywood saw machine:
1.Using the advanced production technology and professional design.
2.Using the numberical control frequency conversion, touch panel, PLC and some other advanced control system and the high quality cotrol element, make the machine work stably, safety, reliable and operate easily.
3. Infrared control systems improve the quality.
4.High precision guide operation, aligning the four edges,equaling the across corner.
5.Automatic tidy out, reducing the labor intensity.
6.Easy to operate for two workers, and save the working time.

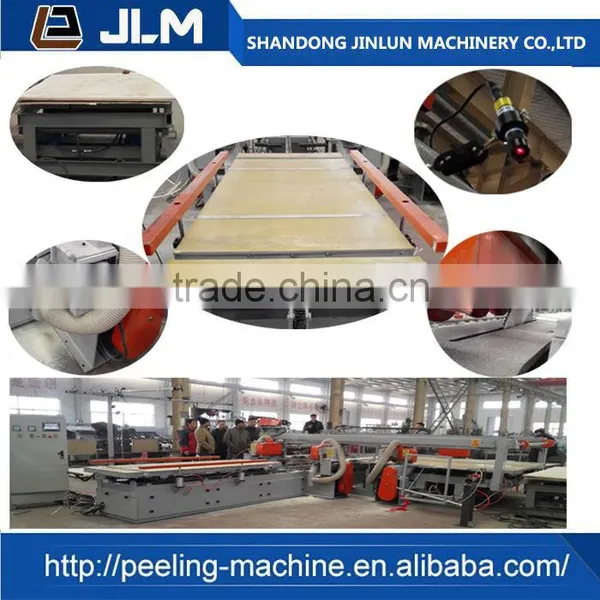

Details of plywood cutting saw machine
The Jinlun machinery Co., ltd was initiated and established since 1999 by our general manager Mr Li, We specialize in manufacturing woodworking peeling machinery . It has earned more than 20 national patents and formed a whole series of high-technique equipments and a completely set of production line ,such as 4 feet ,8 feet ,10 feet of peeling machine for spindle and spindleless. We areone of the largest professional manufactures factory in China .
Welcome to visit our company for cooperation.
