Multifunctional Rubber Mat Press Machine With Low Price
- 10 Set / Sets per Month
- Qingdao Port
- T/T
-
2m Rubber Cow Mat Vulcanizing Press/rubber Mat Making Machine/rubber Mat Hydraulic Press
-
Qingdao Rubber Product Making Machinery / Car Floor Mat Hydraulic Vulcanizing Press / Rubber Plate Vulcanizing Machine
-
Rubber Mat Vulcanizing Press Machine
-
Rubber Mat Making Machine/ Rubber Hydraulic Molding Machine/ Rubber Press
-
Hydraulic Rubber Tile Press / Rubber Machine Manufacturer / Rubber Floor Mat Vulcanizing Machine
-
Rubber Vulcanizing Press Machine / Car Mat Making Machinery
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | jinrunqi |
| Model Number: | XLB 2400x1400 2000T, 2200x1350 1700T | Voltage: | 380V | Power(W): | 17-66kw |
| Dimension(L*W*H): | 4800x6500x4500 | Weight: | 140000 | Certification: | ISO,CE TUV |
| Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Qingdao Jinrunqi Rubber Machinery
Main products
1.Double Automatic Vulcanzing Press,Automatic Vacuum Vulcanizing Press,Rubber Injection Molding Machine,Solid Tire Vulcanizing press,Frame Type Plate vulcanizing press,Large plate vulcanizing press,Doplex"C" type vulcanizing press,sidewall /textile core/steel core conveyor belt production line
2.Rubber tiles vulcanizing press, Semi/auto waste tire recycling line,Reclaimed rubber production line
3.rubber kneader,rubber mixing mill, rubber calender,rubber crushing mill, Rubber refining mill,rubber extruder,Batch off cooler and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .

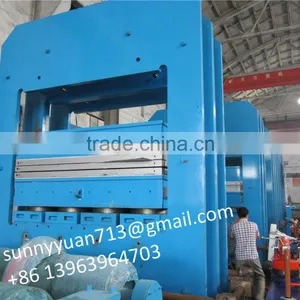

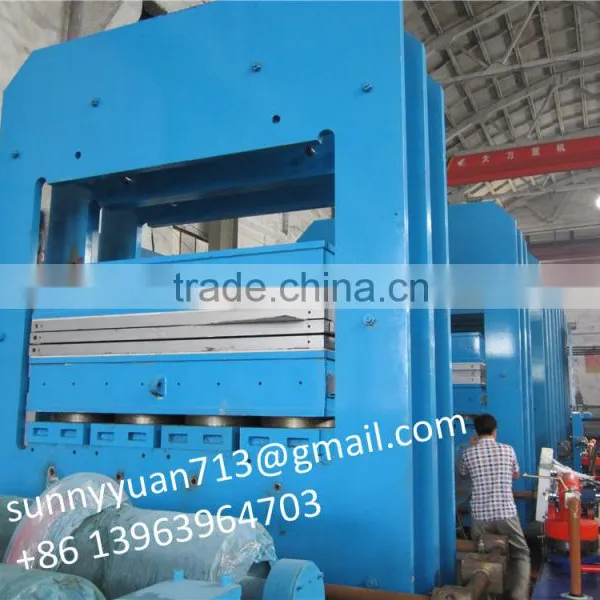

Rubber Mat Press Machine
Structural features:
- Large plate vulcanizing press is adopt frame structures,the platen and plunger are all made of superior material,they are accuracy processed and have high wear-resistance.
- Electrical system adopts PLC control, convenient and correct.Controlled by PLC, several programs could to be process through automatic control, to check and adjust the heating temperature with automatic, improving control level, labor strength and product efficiency.
- This large plate vulcanizing press is used to produce textile construction coneyor belt, such as ordinary rubber conveyor belt, nylon conveyor belt, PVG belt, steel wire core conveyor belt etc.
- The machine is mainly used for vulcanizing and processing large rubber components, rubber products and large width rubber conveyor belt.
Rubber Mat Press Machine Rubber Mat Press Machine Rubber Mat Press Machine
Rubber Mat Press Machine Main technical Parameters
Type | 1500×2000 | 1800×1800 | 2000×2000 | 3000×3000 | 3100x4200 |
Norminal Mould Clamping Force(MN) | 12.00 | 20.00 | 20.00 | 31.50 | 48.00 |
Plate size (mm) | 1500×2000 | 1800×1800 | 2000×2000 | 3000×3000 | 3100x4200 |
Daylight of plate (mm) | 300 | 300 | 300 | 800 | 250 |
Working layer number | 2 | 2 | 2 | 1 | 1 |
| Diameter of piston | 500 | 500 | 600 | 600 | 600 |
| Stroke of piston | 600 | 600 | 600 | 800 | 250 |
| Unit area pressure of hot palte | 4.0 | 6.17 | 5.0 | 3.5 | 3.7 |
| Main motor power | 17.5 | 20.5 | 22 | 61 | 66 |
| Number of cylinder | 4 | 4 | 4 | 6 | 12 |
| Overall size ( L x W x H ) | 2000x2500x4040 | 2500x2300x4100 | 2500x2500x4180 | 4500x4820x4200 | 4800x6500x4500 |
| Weight | 30000 | 35000 | 42000 | 85000 | 140000 |
| Speed of closing (mm/s) | ≥6 | ≥6 | ≥6 | ≥5 | ≥4 |
| Speed of opening (mm/s) | ≥4 | ≥4 | ≥4 | ≥3 | ≥3 |
Also we can make non-standard rubber machinery as customer’s requirements.
Rubber Mat Press Machine Rubber Mat Press Machine Rubber Mat Press Machine Rubber Mat Press Machine
1. Pre-sales Service:
Freely provide project designing, Professional suggestions, Quicky Response!
2. Medium-sales Service:
Accompany you to complete the purchasing, shipping, installing and training
3. After-sales service:
one year quality guarantee, Life-long Maintenance, Eneineer is avaliable to go overseas install and train your workers.
