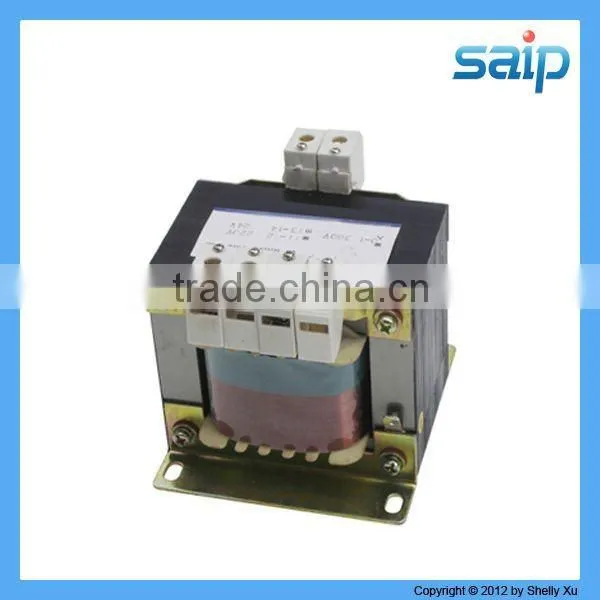

copper winding EI transformer 60va
- 10000 Set / Sets per Month
- ningbo/shanghai
- T/T Credit Card
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Saip | Model Number: | BK |
| Usage: | Other, control transformer | Phase: | Single | Coil Structure: | Toroidal |
| Coil Number: | Autotransformer |
Packaging Details
standard export package
Product Description
Specifications
copper winding EI transformer 60va apply to be used as control power, working light of general electric appliance.copper winding EI transformer 60va
machine tool control transformers apply to be used as control power, working light of general electric appliance and mechanical equipment of various trades, and power of signal lamp with AC50-60HZ, input voltage doesn’t exceed 500V, output voltage doesn’t exceed 220V.
| NP1 Series transformer | |||||||||
| Type | Rated power (VA) | Rated input voltage(V) | Rated output voltage(V) | ||||||
| NP1-40 | 40 | Control | illumination | indication | |||||
| NP1-63 | 63 | 220±5% | 110(127) | 24(36) | 6(12) | ||||
| NP1-100 | 100 | ||||||||
| NP1-160 | 160 | ||||||||
| NP1-250 | 250 | ||||||||
| NP1-300 | 300 | ||||||||
| NP1-400 | 400 | ||||||||
| NP1-630 | 630 | ||||||||
| NP1-800 | 800 | ||||||||
| NP1-1000 | 1000 | ||||||||
| NP1-1600 | 1600 | Distribution of capacity for different windings | |||||||
| NP1-2500 | 2500 | would be according to the users requirements | |||||||
| Type | Rated power (VA) | Installing dimensions | Outline dimensions | Cavity | |||||
| A | C | B | D | E | F | K or K×J | |||
| NP1-40 | 40 | 56±0.5 | 51±2 | 78 | 70 | 86 | 2 | 4.8×9 | |
| NP1-63 | 63 | 56±0.5 | 51±2 | 78 | 70 | 86 | 2 | 4.8×9 | |
| NP1-100 | 100 | 64±0.5 | 67±2 | 85 | 85 | 93 | 2 | 4.8×9 | |
| NP1-160 | 160 | 84±0.5 | 74±2 | 96 | 90 | 103 | 2 | 5.8×11 | |
| NP1-250 | 250 | 84±0.5 | 88±2 | 96 | 105 | 103 | 2 | 5.8×11 | |
| NP1-300 | 300 | 84±0.5 | 96±2 | 96 | 115 | 103 | 2 | 5.8×11 | |
| NP1-400 | 400 | 90±0.5 | 90±2 | 120 | 113 | 123 | 2.5 | 7×13 | |
| NP1-630 | 630 | 122±0.5 | 86±2 | 150 | 118 | 145 | 2.5 | 7×13 | |
| NP1-800 | 800 | 122±0.5 | 100±2 | 150 | 128 | 145 | 2.5 | 7×13 | |
| NP1-1000 | 1000 | 127.5±2 | 152±2 | 155 | 205 | 145 | 3 | 7×12 | |
| NP1-1600 | 1600 | 140±2 | 176±2 | 180 | 230 | 160 | 3 | 7×12 | |
| NP1-2500 | 2500 | 173±2 | 200±2 | 205 | 260 | 175 | 4 | 7×12 | |
