Qingdao Jinrunqi Rubber Machinery
Main products
1.Double Automatic Vulcanzing Press,Automatic Vacuum Vulcanizing Press,Rubber Injection Molding Machine,Solid Tire Vulcanizing press,Frame Type Plate vulcanizing press,Large plate vulcanizing press,Doplex"C" type vulcanizing press,sidewall /textile core/steel core conveyor belt production line
2.Rubber tiles vulcanizing press, Semi/auto waste tire recycling line,Reclaimed rubber production line
3.rubber kneader,rubber mixing mill, rubber calender,rubber crushing mill, Rubber refining mill,rubber extruder,Batch off cooler and so on.
The products have been exported to many countries, such as America, Canada, Australia, South Korea, and Southeast Asia, Middle-east, etc .

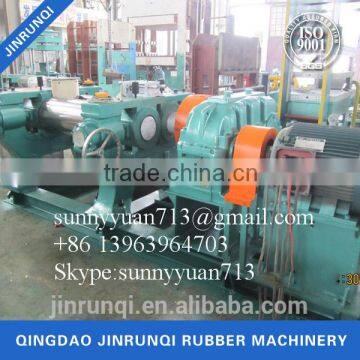

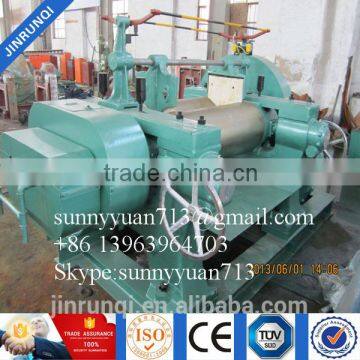

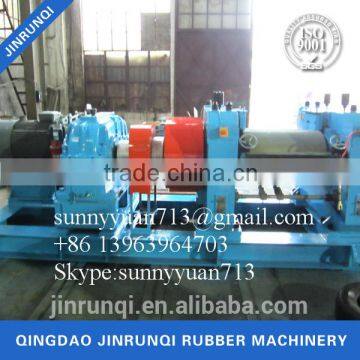

Two Rolls Rubber Mixing Mill /open-type Mixing Mill
The roll is made of chilled cast iron with vanadium and titanium alloys.The roll face is hard and anti-wear.Both the front roll and the back roll are plain.The internal cavity of the roll is processed to make temperature well proportioned on the roll surface.
The machine is equipped with an overload protection device to prevent the major components from being damanged due to overloading.
The machine is also equipped with a hydraulic relief device.When an emergent accident happens,just press down the button and the machine will stop immediately.It is safe and reliable.
The machine adopts electric nip regulating device that provides easy operation.
Bering for the rolls are double-row ball bearing,which are convenient for maintenance and have a long working life.
The transmission system adopt ordinary or hard facing gear reducer, which has a compacted structure, this reducer with higher transmission, efficiency, lower noise and long working life.
The machine is applicable for plasticating,warming and mixing rubber.
Two Rolls Rubber Mixing Mill /open-type Mixing Mill Main technical parameter:
| Model | XK-450 | XK-550 | XK=560 | XK-660 |
| Working diameter of Rollers(mm) | 450 | 550 | 560 | 660 |
| Working length of rollers(mm) | 1200 | 1500 | 1530 | 2130 |
| Linear speed of F.Rollers(m/min) | 24.5 | 27.2 | 27.7 | 28 |
| Linear speed ratio of F&B.Roller(m/min) | 1:1.27 | 1:1.29 | 1:1.12 | 1:1.24 |
| Max roller gap(mm) | 15 | 15 | 15 | 0.5-15 |
| Gap regulating mode | Manual or Electric | Manual or Electric | Manual or Electric | Electric |
| Batch Capacity(kg/batch) | 25-50 | 50-60 | 50-65 | 165 |
| Main motor power(KW) | 55 | 90/110 | 90/110 | 240 |
| Speed reducer | Ordinary type or Hardend-gear speed reducer | |||
| Overall size(L×W×H)(mm) | 5200 | 6260 | 6290 | 7280 |
| 2380 | 2330 | 2330 | 3400 | |
| 1770 | 1750 | 1780 | 2530 | |
| Weight(kg) | 13000 | 20000 | 20400 | 47000 |
Two Rolls Rubber Mixing Mill /open-type Mixing Mill Two Rolls Rubber Mixing Mill /open-type Mixing Mill Two Rolls Rubber Mixing Mill /open-type Mixing Mill
If you interested in our products mentioned above. Kindly welcome to our factory for a visit and let us know by return email.
Two Rolls Rubber Mixing Mill /open-type Mixing Mill Two Rolls Rubber Mixing Mill /open-type Mixing Mill
