Home > Products > Welding machine > 2013 Newest Saip Tig Welding Machine TIG-200P arc welding machine design
2013 Newest Saip Tig Welding Machine TIG-200P arc welding machine design
- 100000 Piece / Pieces per Month
- Ningbo or Shanghai
- Credit Card
You May Like
-
2013 Newest Saip Tig Welding Machine TIG-200P aluminum tig welding machine
-
2013 Newest Saip Tig Welding Machine TIG-200P cold welding machine for copper
-
2013 Newest Saip Tig Welding Machine TIG-200P resistance spot welding machine
-
2013 Newest Saip Tig Welding Machine TIG-200P jewelry laser spot welding machine
-
2013 Newest Saip Tig Welding Machine TIG-200P automatic welded wire mesh machine
-
2013 Newest Saip Tig Welding Machine TIG-200P miller arc welding machine
Product Details
Condition | New | Place of Origin | Zhejiang, China | |
Brand Name | Saip | Model Number | TIG-200P | |
Arc Current | 10-200 | Pulse Frequency | 50 | |
Pilot Arc Current | 10.1 | Rated Duty Cycle | 89% | |
Motor Type | DC Motor | Dimensions | 640*400*510 | |
Usage | for civil use | Voltage | 220V | |
Power(W) | 6.6KW | Certification | CE TUV ROHS | |
Warranty | One year | After-sales Service Provided | Overseas service center available |
Standard Export Packing
Product Description
Specifications
1.efficiency can reach 80%2.easy and simple to operate
pact and portable
4.ac/dc
5.small spot welding machine
2013 newest saip tig welding machine TIG-200P
Specifications
1.plastic panl design
2.efficiency can reach 80%
3.small splashing, great penetration
4.adjustable voltage
5.Low noise
6.manual spot welding machine
Brief introduction
MOSFET Type
- MOSFET inverter circuit, high frequency arc starting
- AC square wave is specially suitable for welding aluminum and aluminum alloy products
- DC function for welding stainless steel, alloy steel, carbon steel, copper and other non-ferrous metal
- Small splashing, great penetration, easy and simple to operate and aesthetic appearance of weld seam
- Foot pedal is optional
Technical specification
Inverter TIG-AC/DC Square Wave Welding Machine | |||
Model | TIG-200AC/DC | TIG-250AC/DC | TIG-315AC/DC |
Type | MOSFET | ||
Rated input voltage (V) | single phase 220V±15% | three phase 380V±15% | |
Rated frequency (Hz) | 50/60 | ||
Rated input current (A) | 24 | 9.6 | 11.4 |
No-load voltage (V) | 56 | 45 | 45 |
Output current (A) | 10-160 | 10-250 | 10-280 |
Pre-flow time (s) | 0-2 | ||
Gas delay time (s) | 2-10 | ||
Duty ratio | 20%-80% | ||
Decay time (s) | 0-5 | ||
Duty cycle (%) | 60 | ||
No-load loss (W) | 60 | ||
Arc starting | high frequency arc starting | ||
Efficiency (%) | 85 | ||
Power factor | 0.93 | ||
Insulation grade | F | ||
Protection grade | IP21 | ||
Net weight (KG) | 23.4 | 31.2 | 31.2 |
Dimension of packing (mm) | 640×400×510 | 640×400×510 | 640×400×510 |
Compared with traditional welding machine

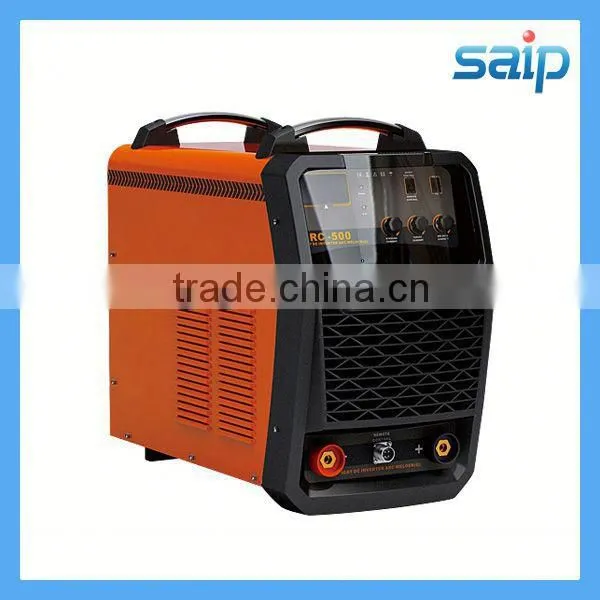

Product display
Packing Show
Including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, TIG torch×1set
(air cooled WP-26 for TIG-200AC/DC & TIG-250AC/DC; water cooled WP-18 for TIG-315AC/DC)
...
Company Profile

Our company (called "Saip" for short) is an enterprise specialized in the design, production and sales of electric equipment. Our office is located in the largest manufacturing base of electric equipment of Wenzhou, which is called "the Electric Equipment Capital of China".
Saip has five specialized branches, and over 300 specialized cooperative partners. Saip, an ISO9001 certificated enterprise, has modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained teams, technicians and skilled workers.
Now, Saip has five design and production bases in Hong Kong, Taiwan, Singapore, Turkey and Wenzhou (China Mainland) respectively, 28 sales organizations in the world and more than 50 holding member enterprises.
Saip products cover low-voltage apparatus, welding equipment, instruments and meters, photoelectrons, and electrical products for construction, automobile apparatus and industrial automation. The products are sold to more than 100 countries and regions. All exported products have passed the certification of CE and partial products have passed several kinds of international certifications like RoHS, TUV, UL, KEMA, S, SIRIM and so on. Saip as always insists on the tenet of "high quality and sincere service".
Saip will be your successful cooperative partner.
