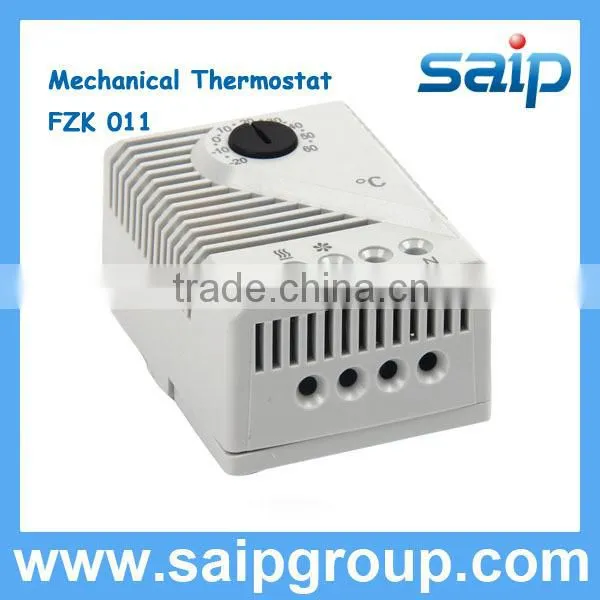

High quality thermostat digital smart thermostats 230VAC
- 20000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | Saip | Model Number: | FZK 011 |
| Usage: | Industrial | Theory: | Temperature Controller |
Packaging Details
standard export packing or neutal for thermostat .
Product Description
High quality thermostat digital smart thermostats 230VAC
Introduction:
The mechanical thermostat is used for controlling heating and cooling equipment, filter fans or signal devices. The thermostat registers the surrounding air and can switch both inductive and resistive loads via snap-action contact. |electronic thermostat|thermostat control|thermostat system| desired switching thermostat||heating elements|heating cooling| devices such|
Functionality: The temperature setting on the scale equals to the upper switch point, which means that the Normally Closed contact opens. The temperature setting minus switch temperature difference (and tolerances) equals to the lower switch point, which means that the Normally Closed contact closes.
Mechanical Thermostat Wholesale Data:
Switch temperature difference | 4K (± 1.5K tolerance)* |
Sensor element | thermostatic bimetal |
Contact type | change-over snap-action contact |
Contact resistance | < 10mOhm |
Service life | > 100 000 cycles |
Max. switching capacity, NC | 250VAC, 10 (4) A |
| DC 30W | heat hot| unit heater air |thermostats| |
Max. switching capacity, NO | 250VAC, 5 (2) A |
| DC 30W |thermostat bimetallic|controls|switches| |
EMC | acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
Connection | 4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
Mounting | clip for 35mm DIN rail, EN50022 |
Casing | plastic according to UL94 V-0, light grey |
Dimensions | 67 x 50 x 38mm |
Weight | approx. 0.10kg |
Fitting position | variable |switches|switches thermostats| either| controlled by| |
Operating/Storage temperature | -20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F) |
Protection type | IP20 |
thermostat digital smart thermostats 230VAC |common|bimetallic switching|bimetallic thermostat|mechanical thermostats|
Art. No. | Operating voltage | Setting range |
01170.0-00 | 230VAC | +5 to +60°C |
01170.0-01 | 230VAC | +40 to 140°F |
01170.0-02 | 230VAC | -20 to +35°C |
01170.9-00 | 120VAC | +40 to 140°F |
01170.9-01 | 120VAC | +5 to +60°C |
thermostat digital smart thermostats 230VAC |electrical thermostats|wax pneumatic water|wire thermostats|

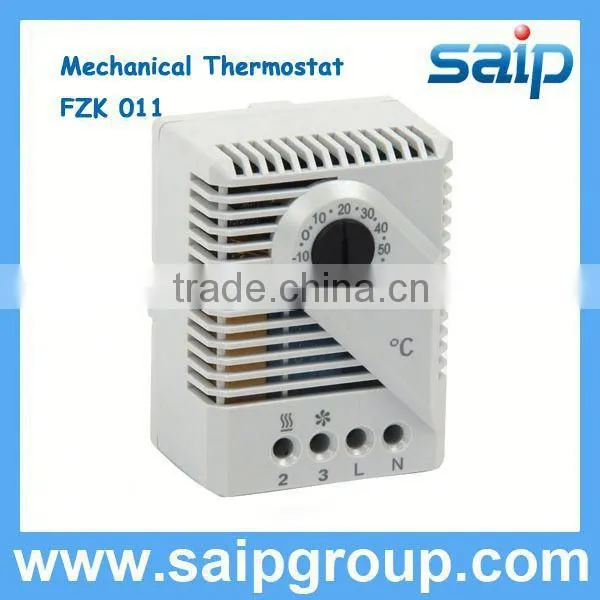

Mechanical Thermostat Wholesale Image:
thermostat digital smart thermostats 230VAC |volt thermostats|line voltage digital thermostats|

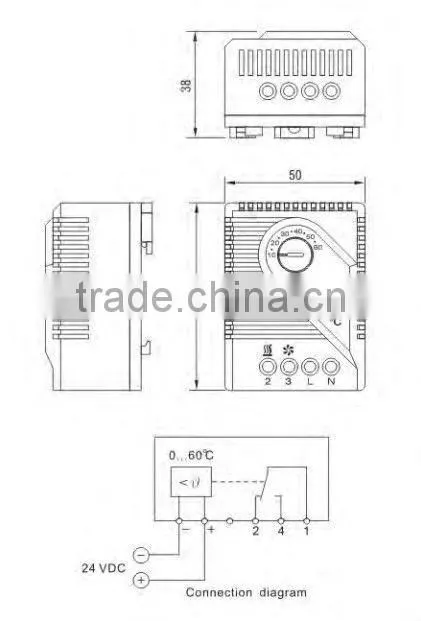

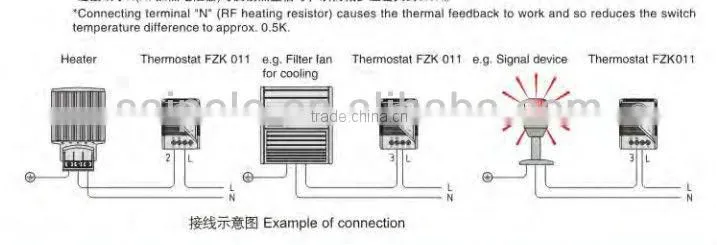

Thermostat Example of connection :
| non programmable thermostat|
Mechanical Thermostat Package:
|wifi thermostat|room thermostat|digital thermostat|ksd301 thermostat(250v/10a)|thermostat price|
thermostat digital smart thermostats 230VAC |ranco thermostat|thermostat wifi|thermostatic mixing valve|plug in thermostat|thermostatic valve|

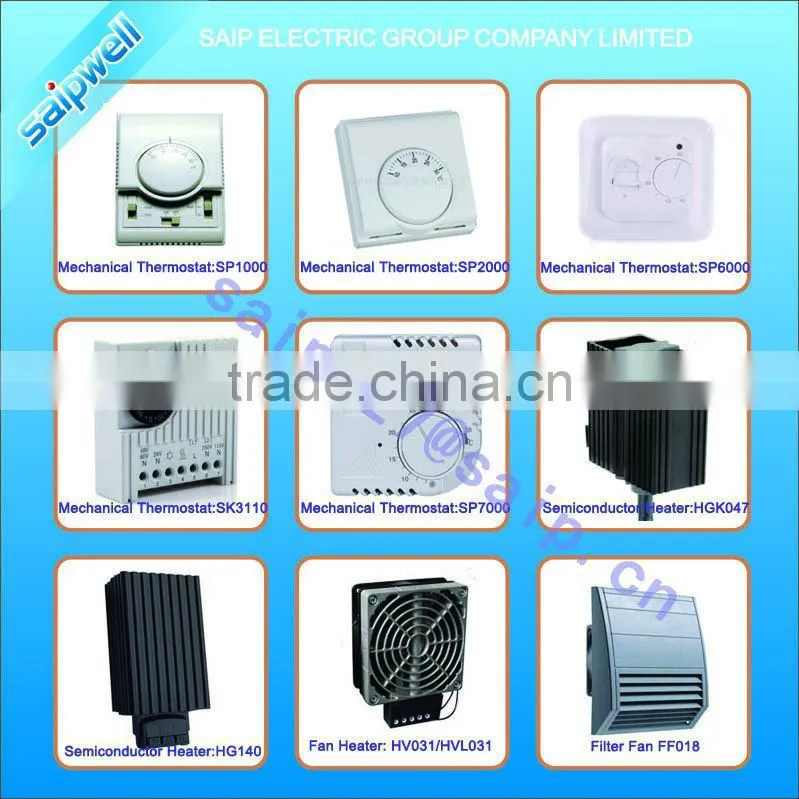

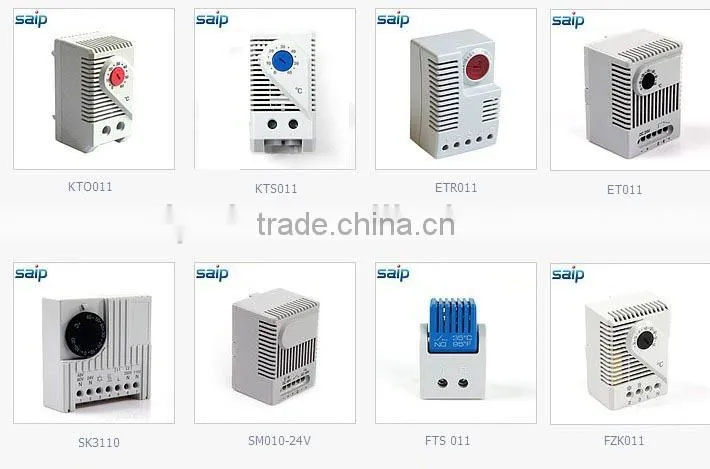

Thermostat Product show:
Certification:
thermostat digital smart thermostats 230VAC |electric heat thermostats||high temperature thermostat|2 stage thermostat|
Factory Image:
Saip And Electronic Relay Wholesale:
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments., is an integrated enterprise which is focus on the , ODM, OEM as well as domestic & oversea sales in the field of industrial. We sells small compact thermostat / dual thermostat / adjustable humidity mechanical controller /high switching capacity thermostat / electronic thermostat.Our company is established to make different style industrial thermostat for our customer, in other words, the high performance is exactly made for beautiful life.
For industrial thermostat, we can package and deliver any ways you like. We can answer your questions about industrial thermostat within 24 hours in professional knowledge. We can also solve the industrial thermostat problems for you with our professional service.
More products,you can visit our web : to check.
Contact Person:John Wu
Tel:0086-18067787929
Skype:saip373
