Good Quality Tire Recycling Machine/waste Tire Recycling Machine/tyre Recycling Equipment With Ce Certification

Name: Good Quality Tire Recycling Machine/waste Tire Recycling Machine/tyre Recycling Equipment With Ce Certification
Brand: JINRUNQI
Availability: InStock

FOB Price

USD $30,000 - $70,000 / Set

1 Set(Min.Order)

Supply Ability 5 Set / Sets per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Type:	Tire Machine	Tire Machine Type:	Tire Recycling Machine
Place of Origin:	Shandong, China	Brand Name:	JINRUNQI	Model Number:	XKP-560
Voltage:	380 V	Power(W):	132.2 KW	Dimension(LWH):	78001250600mm
Weight:	1500KG	Certification:	CE ISO TUV	Warranty:	1 year
After-sales Service Provided:	Overseas service center available

Product Description

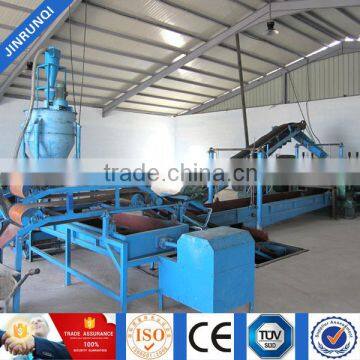

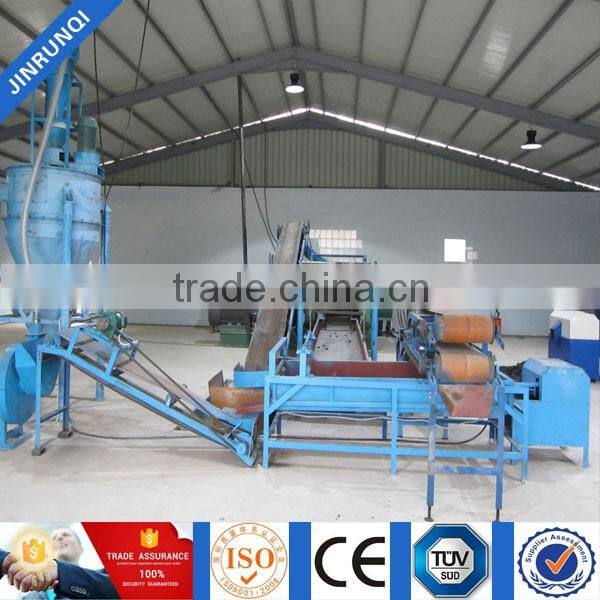

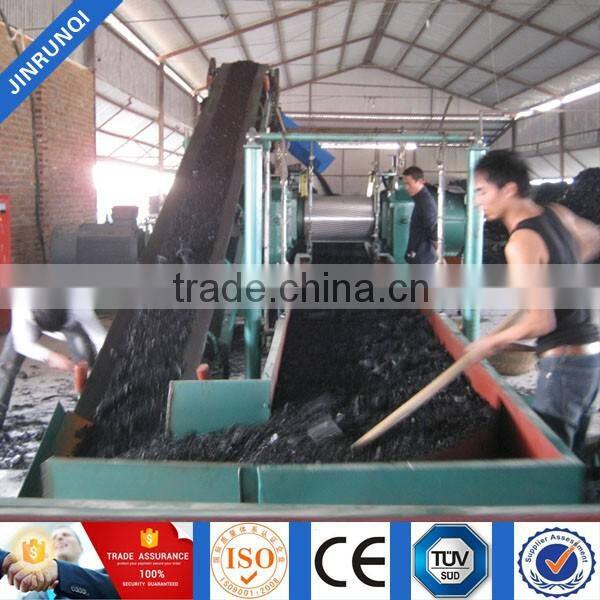

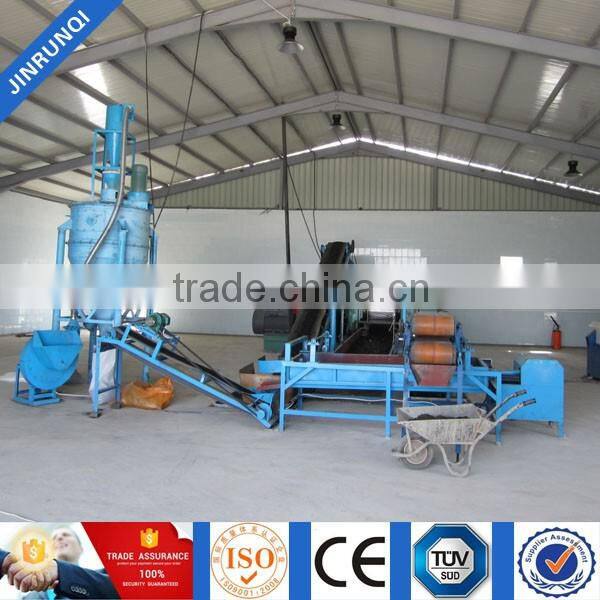

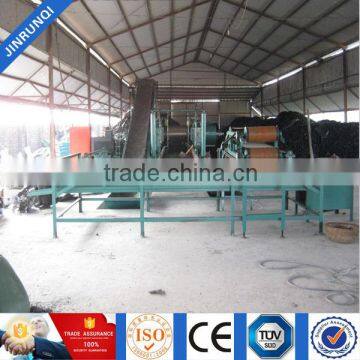

Whole Line Crumb Rubber Making Production Line For Tire Recycling Machine

This production is used for recycle waste tires (600mm-1200mm) to make rubber particle or rubber powder. The size of final particle is from 5 meshes to 120 meshes. Finally you can also get steel wire and fiber powder.

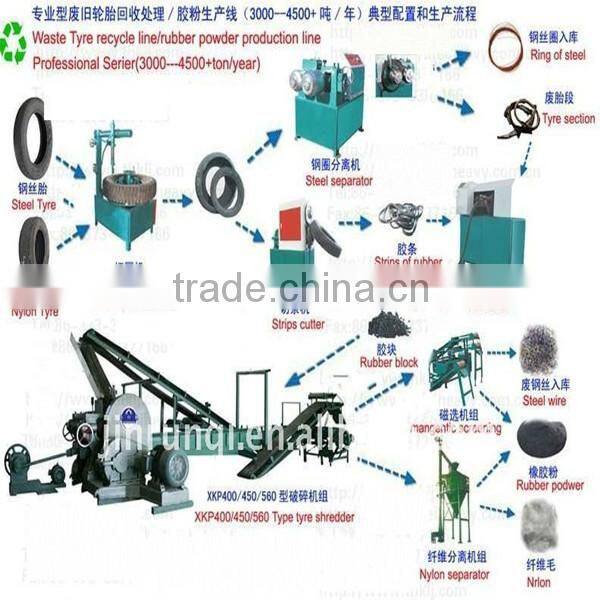

Wasted Tire Recycling includes the following machines:

Waste tire pretreating: Get 3030mm or 4040mm blocks.
1	Ring cutter	QQJ-20	1
2	Loop machine	YQJ-285	1
3	strip cutter	QTJ-380	1
4	block cutter	QKJ-45	1
Rubber powder treatment:5-30 meshes rubber powder. Separate steel wire and fiber from rubber powder.
5	Two roll rubber crusher	XKP-400	1
		XKP-450
		XKP-560

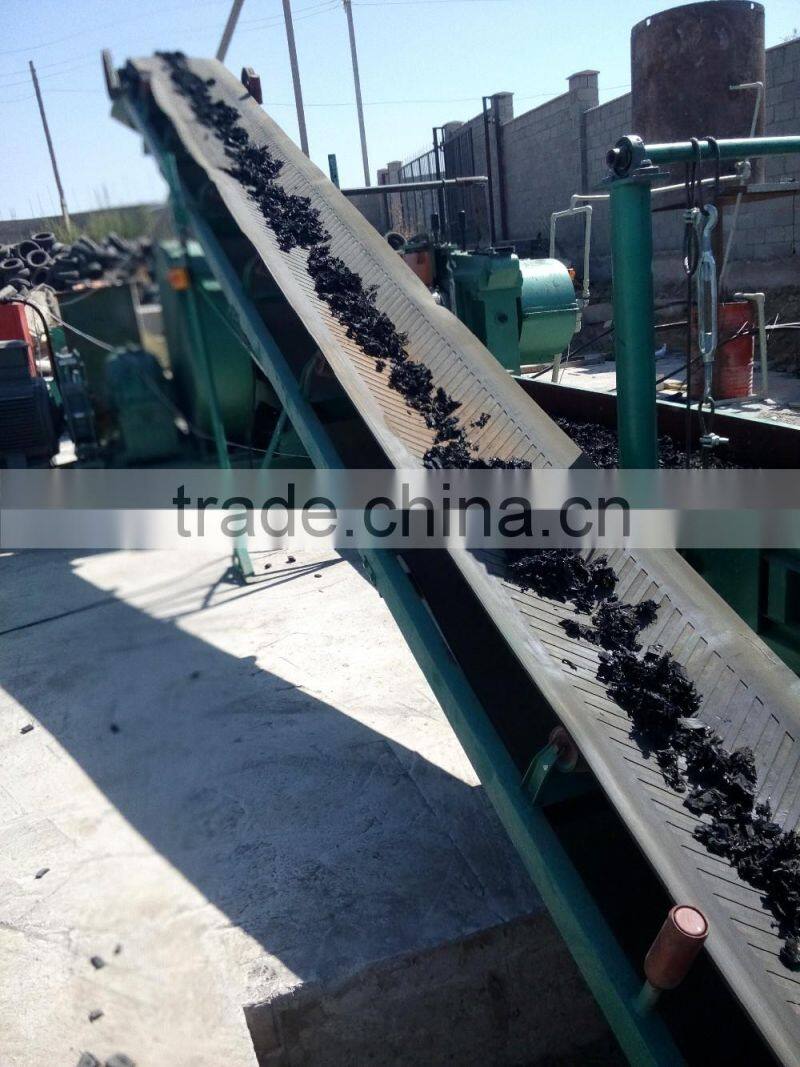

6	Main conveyor	BCL-8	1
7	Small conveyor	BCL-3	1
8	Double-deck magnetic separator	BMS-22	1
9	Single-deck Magnetic	SMS-1	1
10	Main vibrating sieve	BSS-8	1
11	Small vibrating sieve	SSS-3	1
12	Fiber Processing Equipment	FS-1100	1

NOTE:

1) PAYMENT: 30% DEPOSIT, 70% T/T BEFORE DELIVERY.

2) WARRANTY: 1 YEAR WARRANTY. LIFE TIME MAINTANCE.

3) DELIVERY TIME: ABOUT 60 DAYS AFTER DEPOSIT.

Production capacity and energy consumption

NO	MODEL	Total Power(KW/h)	Production Capacity (kg/h)
1	XKP-400 line	About 103.2kw	100-200kg for around 10-30 mesh rubber powder.
	XKP-450 line	About 113.2kw	300-400kg for around 10-30 mesh rubber powder
	XKP-560 line	About 132.2KW	500-600kg for around 10-30 mesh rubber powder.
Floor space:About 300-400 m2, Workers needed:3 operator and 1 maintainer

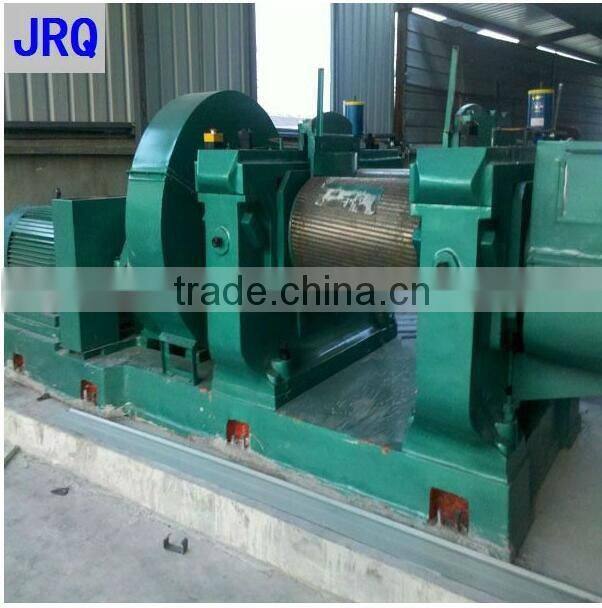

Rubber Crusher Main Technical Parameter:

Model	XKP-400	XKP-450	XKP-560
Working diameter of F.Rollers(mm)	400	450	560
Working diameter of B.Rollers(mm)	400	450	510
Working length of rollers(mm)	600	650	800
Linear speed of F.Rollers(m/min)	18.65	24.5	25.16
Linear speed ratio of F&B.Roller(m/min)	1:1.27	1:1.27	1:1.28
Max roller gap(mm)	10	10	15
Output(kg/h)	200-400	400-600	2000
Main motor power(KW)	37	55	75
Speed reducer	Ordinary type or Hardend-gear speed reducer
Overall size(L×W×H)(mm)	3850	4650	4750
	1800	2000	2300
	1550	1550	1750

Detailed introduction of each machine

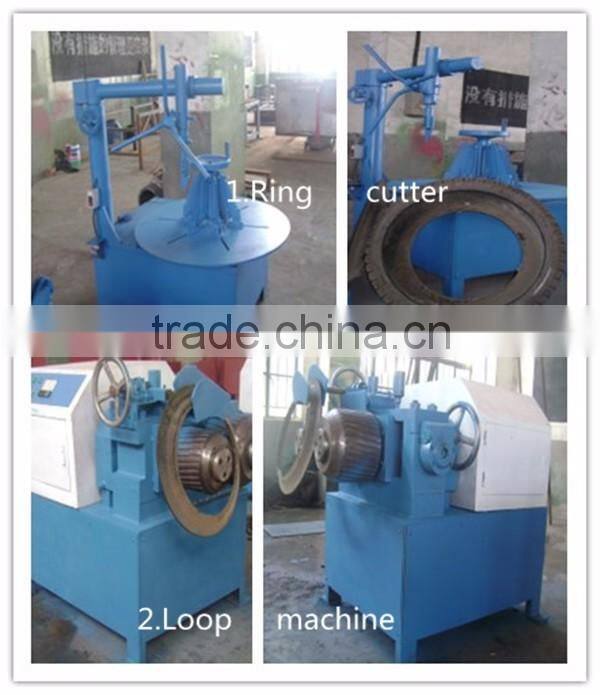

Waste tire pretreating system includes Ring cutter, Loop machine, strip cutter and block cutter.

1-1. Ring cutter 1 set

Item	Specification
Motor power	5.5 KW
Speed of main screw	46.8 r/min
MAX Diameter of tyre	1200mm
Dimension	11009001700mm

1-2. Loop machine 1 set

Item	Specification
Motor power	15 KW
Linear speed of front roller	15.5 m/min
Ratio of speed	1.1
Dimension	1520115012101mm

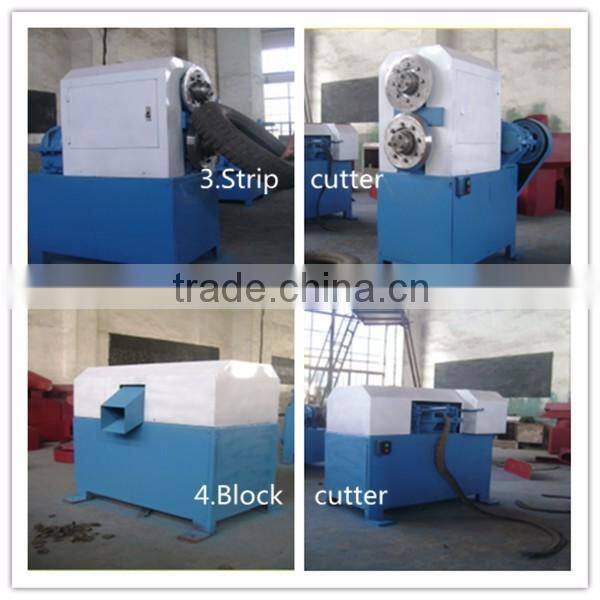

1-3.Strip cutter 1 set

Item	Parameter
Motor Power	5.5kw
Disc Diameter	380mm
Rotate Speed	18.4r/min
Dimension	12908701550

1-4. Block cutter 1 set

Item	Specification
Motor power	11kw
Speed of main screw	420 r/min
Out diameter of cutter	200mm
Dimension	11308301100

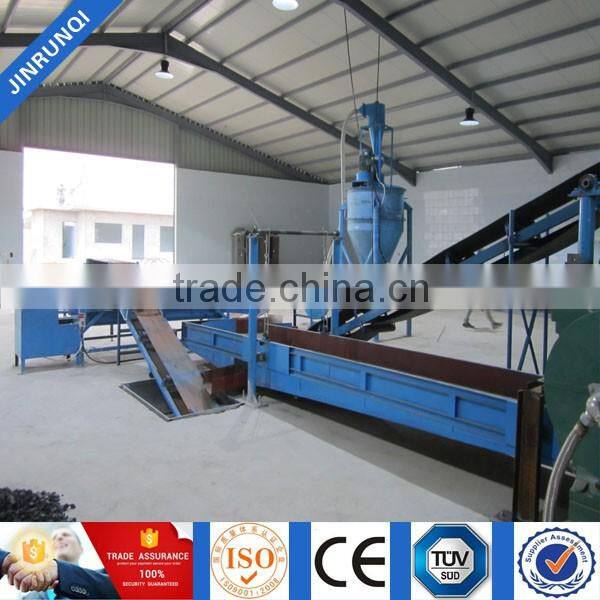

Rubber powder treatment system includes rubber crusher, Main conveyor, Small conveyor, Double-deck magnetic separator, Single-deck Magnetic, Main vibrating sieve, Small vibrating sieve and Fiber Processing Equipment.
