GreenTouch high quality saw touch screen 17 inch open frame touch screen
- 5000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Products Status | Stock | Screen Size | Other, 17''saw touch screen | |
| Type | Other, Surface Acoustic Wave | Interface Type | USB, Other, USB, RS232 | |
| Resolution | Other, 4096*4096 | Brand Name | GreenTouch | |
| Model Number | GT-SAW-17 | Place of Origin | Guangdong, China |
Product Description
17 inch SAW Touch Screen
skype ID:touchscreensales
SAW touch screen description:
GreenTouch Surface Acoustic Wave (SAW) touch screen uses ultrasonic waves that pass over the touchscreen panel. When the panel is touched, a portion of the wave is absorbed. This change in the ultrasonic waves registers the position of the touch event and sends this information to the controller for processing. Surface wave touchscreen panels can be damaged by outside elements. Contaminants on the surface can also interfere with the functionality of the touchscreen.
GreenTouch Surface Acoustic Wave (SAW) touch screen is based on sending acoustic waves across a clear glass panel with a series of transducers and reflectors. When a finger touches the screen, the waves are absorbed, causing a touch event to be detected at that point. SAW touch screen technology is recommended for public information kiosks and other high traffic indoor environments.
SAW touch screen type:
Touch screen type | Touch screen size | Thickness of glass | Material |
Standard SAW touch screen | 10.4-42’’ | 3mm,4mm,6mm | Pure glass |
Multi-touch SAW touch screen | 10.4-24’’ | 3mm,4mm,6mm | Pure glass |
Vandal-proof SAW touch screen | 15”/17”/19’’ 4:3 | 4mm,6mm | Pure glass |
Water-proof SAW touch screen | 15”/17”/19’’ 4:3 | 3mm,4mm,6mm | Plastic frame |
Vandal/Water-proof SAW touch screen | 15”/17”/19’’ 4:3 | 4mm,6mm | Plastic frame |
Anti-glare SAW touch screen | 10.4”-42” | 3mm,4mm,6mm | Pure glass |
Dust-proof SAW touch screen | 10.4”-24” | 3mm,4mm,6mm | Aluminum frame |
Vandal/Water/Glare/Dust-proof SAW touch screen | 15”/17”/19” 4:3 | 3mm,4mm,6mm | Aluminum frame |
SAW touch screen advantage:
n high quality, high resolution and light transmittance
n once calibrated, never drift
n Z axis pressure recognition, only the intensity of the touch sensor to prevent misuse
n long working life, not afraid of hard objects
n short reaction time
n compact, easy to install
n Can be customized according to customer requirements Screen Size
SAW touch screen application:
n Open frame touch monitor
n Self-service kiosks
n Vending and ticket sales
n Electronic catalogs
n Gaming, lottery, and amusement
n Public pay phones
n Multimedia marketing
n Banking/financial transactions
n Industrial control roomsn Computer-based training
n And more
SAW touch screen specification:
Technology | surface acoustic wave technology |
Dimension | 10.4"-42"(can be selected) |
Resolution | 4096 x 4096 ,Z-axis 256 |
Material | electronic glass (anti-glare,anti-vandal,anti-water,anti-dust can be selected) |
Sensor position | 0.5mm (glass bevel,0.5mm above the surface) |
Positioning accuracy | < 2mm |
Transmittance | >92% /ASTM |
Touch intensity | 30g |
Touch life time | > 50,000,000 |
Surface hardness | Mohs' 7 |
Multi touch | (single or fake 2points touch) can be selected |
Operating Temperature | -10°C to +60°C |
Storage Temperature | -20°C to +70°C |
Humidity | 10%-90% RH / 40°C |
Work latitude | 3800m |
Full set | Connected line,double-adhesive tape,dust-proof line, touch screen,controller. |
Certificate | CE, FCC, RoHS |
Controller specification: | |
Controller type | Standard or ELO (can be selected) |
Interface | USB or RS232 (can be selected) |
Dimension | 85mm×55mm×10mm |
Working voltage | 12V±1V or 5V±0.5V (can be selected) |
working current | 80MA |
Maximum current | 100MA |
Reaction time | ≤16ms |
Operating Temperature | 0-65℃ |
Humidity | 10%-90%RH |
Storage Temperature | -20℃-70℃ |
MTBF | > 500,000 hours |
Operating system (Support) | SetupX86:WindowsXP,WindowsXPE,Win7 32,Windows VISTA SetupX64: Win7 64 Linux(support Various versions):Ubunut/Redhat/FC/Suse etc Android:2.30,4.0 etc.((can use driver-free controller directly)) WinCE:WinCE 5.0/ WinCE 6.0 |
Controller of LED diagnostic features: | |
Flash Frequency | Function |
The long light goes out after 5 seconds | The controller power-on self-test |
Slow flashing | Normal operation, no touch |
Fast flashing | Touch the state |
Power-on | The touch screen not be found |

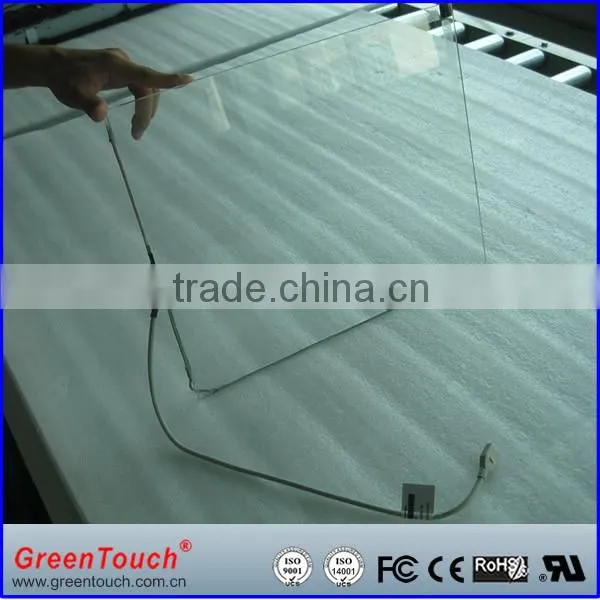

SAW touch screen picturers shown:
SAW Touch Screen Certification:
Delivery and Payment way :
Factory shown:
