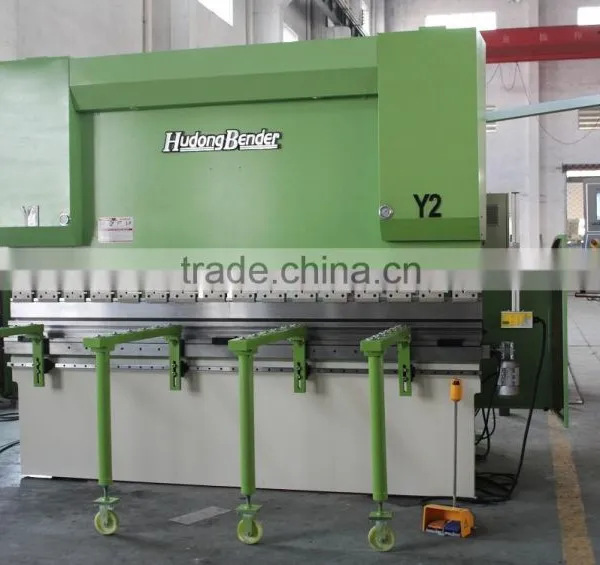

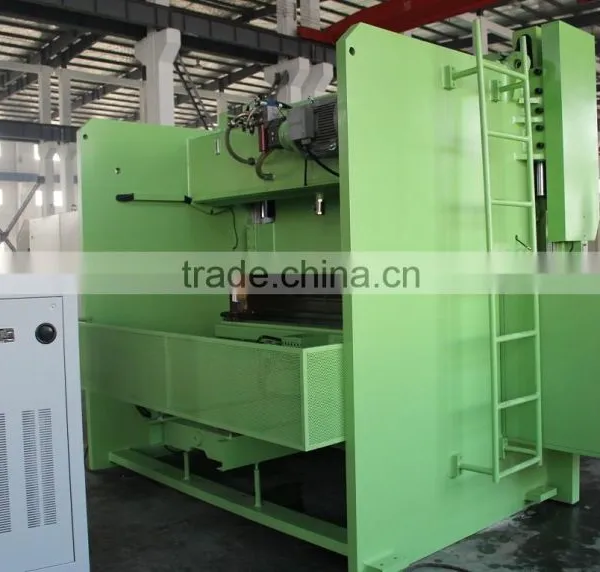

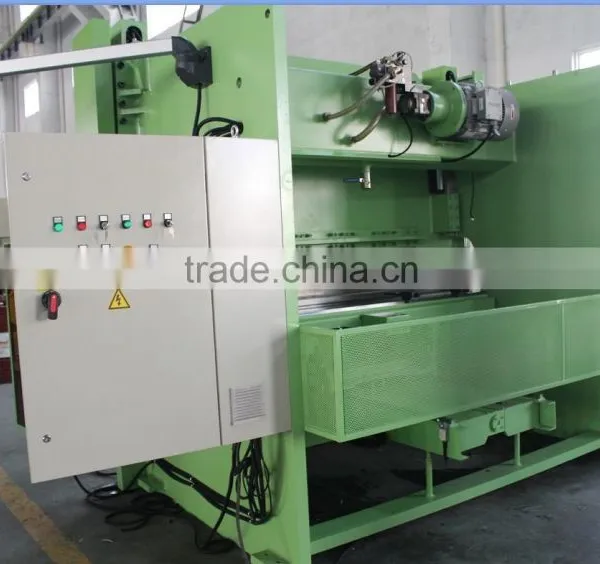

WF67K-200T3200 hydraulic cnc plate bending machine
- 100 Set / Sets per Month
- CONWENIENTLY CONTROL HYDRAULIC PRESS BRAKE
- HYDRAULIC TORSION SERVO CNCPRESS BRAKE WITH MACHINICAL STOP
- Exported to USA 30Tx1600 hydraulic NC press brakes
- 1.5 meter sheet metal press brake
- 1.6 meter sheet metal hydraulic press brake bending machinery
- high quality bending 1600mm length metal plate hydraulic press brake
Product Details
Condition: | New | Brand Name: | HUDUAN | Model Number: | WF67K-200T3200 |
Machine Type: | Beading Machine | Raw Material: | Sheet / Plate Rolling | Material / Metal Processed: | Stainless Steel |
Power: | Hydraulic | Automation: | Automatic | Extra Services: | End Forming |
Certification: | Other, CE, CE, ISO ,CQQ | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
WF67K-200T3200 hydraulic cnc plate bending machine1)DELEM DA65W
2)Rexroth Valve
3)Semens Motor
4 30 years experiencs
WF67K-200T3200 hydraulic cnc plate bending machine
1)DELEM DA65W
2)Rexroth Valve
3)Semens Motor
4 30 years experiencs

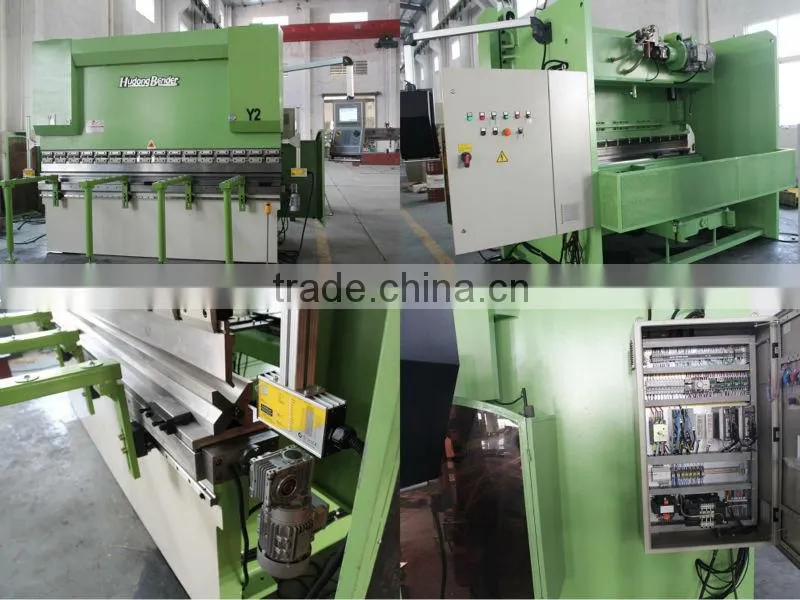

Standard with Holland Delem DA65W ,

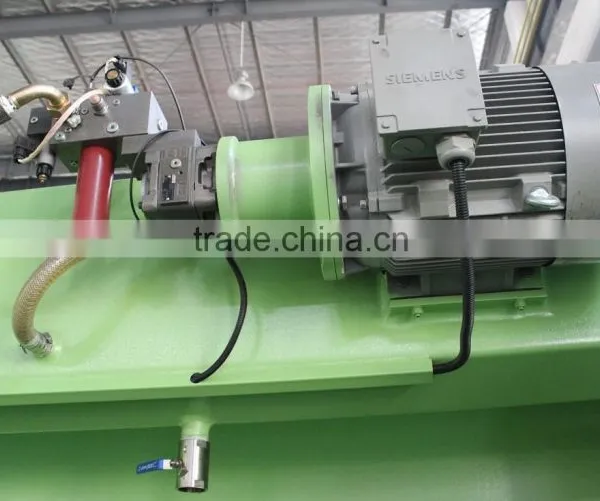

Germany Rexroth high-performance servo-hydraulic system control synchronization,
Both sides with Italy position feedback encoders detect synchronization,

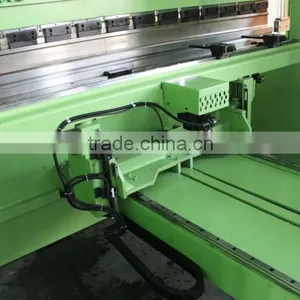

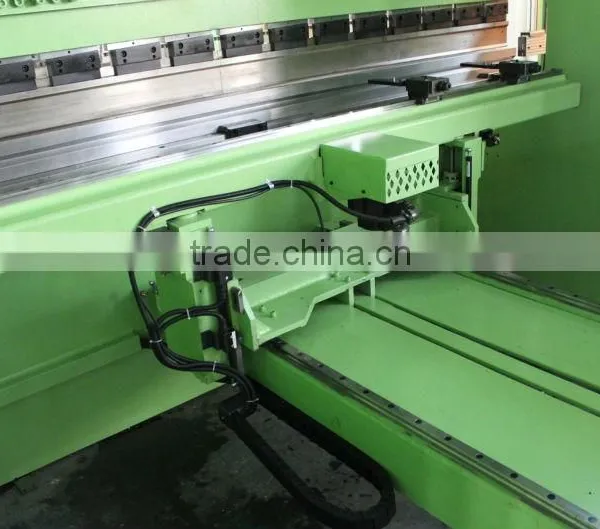

back gauge with high performance servo motor and ball screw,
DNC system control using deflection compensation,

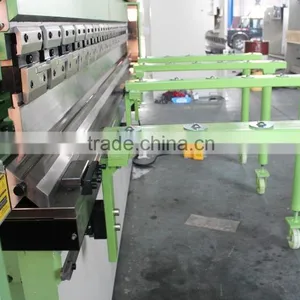

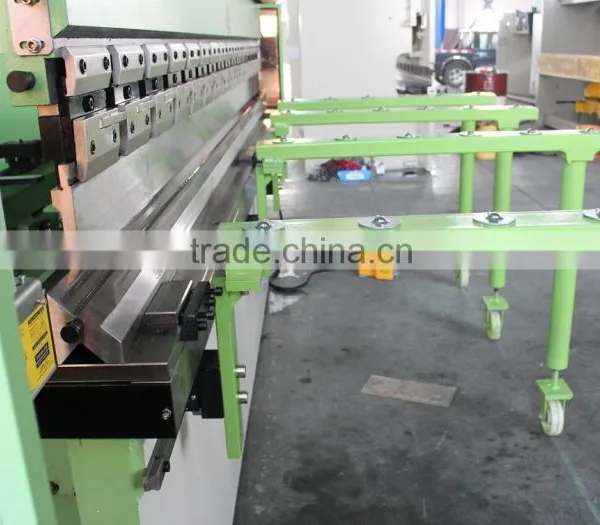

Standard press brake tooling,
Front support.
- Technical parameter
Model | WF67K-200T/3200 |
Bending length | 3200 mm |
Nominal force | 1250 KN |
Poles distance | 2800 mm |
Throat depth | 320 mm |
Slider travel | 150 mm |
Dies height | 460mm |
Main motor | 18.5 KW |
Number of control axes | 4+1 axis |
Dimension L×W×H(mm) | 3200X16500×2700 |
Machine Weight | 14000kg |
Machine accuracy | |
Slider repeat accuracy | ≤±0.02mm |
Slider position accuracy | ≤±0.02mm |
Back gauge repeat position accuracy | ≤±0.02mm |
Straightness of workpiece | 0.3mm / m |
Bending angle deviation | <±30′ |
Grating resolution | 0.005mm |

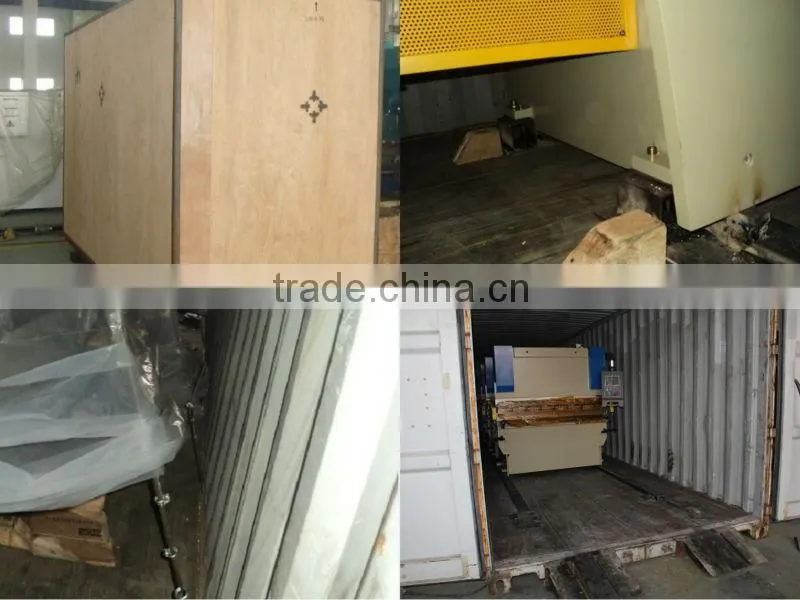

we will use steel wire fix machine into container. Rusty local oiled above machine, Plastic film wrapped. please check the following photo images
Sales-service: we provide technical service during warranty
1). Free installation, trial start and adjustment, training. But the machine quotation doesn’t including the charges of our engineers in the buyer’s country if you want, and the buyer must take charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
2).Warranty period is 2 years. During the warranty period we shall reply to the call or Fax from the user for the machine faults (expect for faults caused by no abiding by the relevant operation regulations, or by force injury) within 24hours.
We are professional hydraulic press brake and hydraulic shearing machine manufacture with more than 30
years manufacturing expereience . all of our machines meet CE and ISO Certification .we have sold our machines
to more than 80 countries
