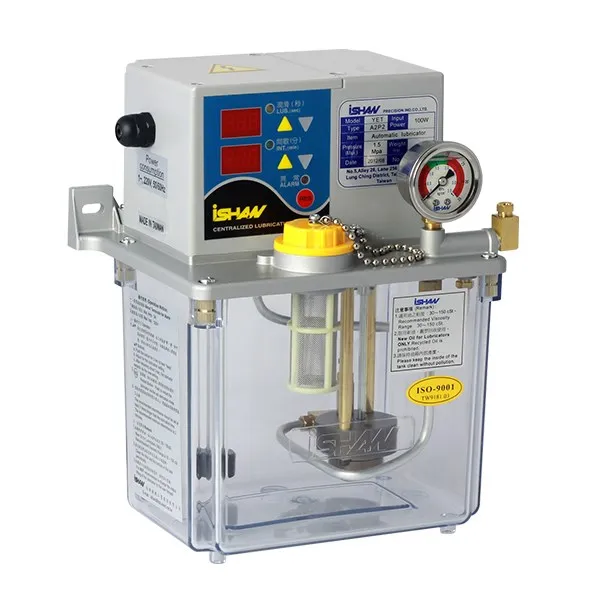

Centralized Lubrication system industrial machinery equipment

Centralized Lubrication system industrial machinery equipment

Product Feature

1. CE approval.
2. Three operation modes as,
    a. Lubrication： The lubricator runs via lubrication time after power-on.
    b. Intermittence： The lubricator runs via intermittent time after power-on.
    c. Memory： The lubricator runs via the previous set after power-on.
3. Lubrication and intermittent time can be adjusted.
4. The float switch alarms and output signal when the oil level is low.
5. The pressure release device is included.
6. The over temperature/load protector is attached to protect the motor.
7. The function of fixed pressure for the pressure relief valve can prolong the system life
8. Lubrication time (second/minute) and intermittent time (second/minute/hour/cycle) are adjustable.
9. The indicator on the panel can display the operation of the lubricator.
10. The intermittent period can be adjusted via the machine’s action cycles.
11. Pressure switch is an option for YET-A2P2.

12. "RES" key can force the lubricator to function.

Machine Parts

Name: YET-A2 / YET-A2P2

Brand: ISHAN

Original: TAIWAN

Warranty

ISHAN centralized lubrication systems is under the warranty coverage at a period of 12 months.

 Material and manufacturing faults of is under the iSHAN coverage.

Below conditions applied iSHAN centralized lubrication systems on are beyond the warranty,

1. Incorrect operation
2. Incorrect installation
3. Impermissible lubricant
4. Incorrect maintenance
5. Non-original spare parts are used
6. Unauthorized modification on the system
7. Not in accordance with transportation and storage requirements
