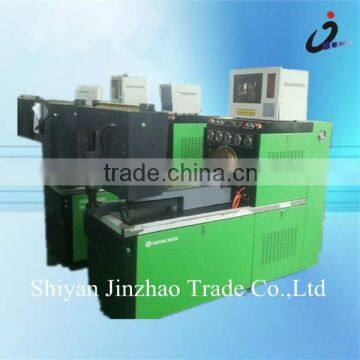

Fuel Injection Pump Testing Bench

Specifications

Fuel Injection Pump Test Bench
1. High test precision
2. Output Power:7.5-15KW
3. Brand: Nanyang Nantai
4. Model:CR-NT815

Fuel Injection Pump Testing Bench





Functions:



1. Full-automatically detect injection volume of diverse common-rail oil pump, return volume, pump chamber pressure, oil supply pressure, sealing performance, performance of measuring unit ZME control valve, equip domestic flow sensor for monitoring flow, pursuant to initial data, judge whether single index and overall property are qualified or not.

2. Full-automatically detect various solenoid valves controlling injection volume and return volume of common-rail injector under different working conditions such as rating, idling, correction, pilot injection, equipped with domestic flow sensor for implementing flow monitoring, pursuant to initial data, judge whether single index and bulk property or oil injectors are qualified or not.

3. Pump nozzle and electronic unit pump can be checked through fixture and additional system.

4. Diverse electronic high pressure oil pump such as VP37 VP44 can be tested by means of additional system.

5. Windows system and humanized operating procedure, client can add data by himself, save printed data and customer information.

6. Multi-machine network and remote control are available.



Equipment Characteristics:



1. High degree automation: Automation applied in product detection.

2. High import configuration takes up 50% of equipment cost.

3. Flow sensor for implementation of the oil mass detection and full closed-loop control.

4. Compact universal test bench can successively complete test for 4-6 injectors in one setup.

5. Remote monitoring is convenient for service and software upgrading.



Specifications:



Power	5.5KW,7.5KW,11KW,15KW,18.5KW
Adjustable rotation speed range	0~4000rpm
Double series of graduates	45/150CC
Volume of oil tank	100L
Temperature stabilization	40±2°C
Test oil filtering unit	5μ
DC. Supply	12/24V
Feed pressure	0~0.4MPa (low), 0~4MPa (high)
Air pressure (MPa)	-0.03~0.3
Rack travel range	0~25mm
3-phase power supply	380V/50Hz or on request
Flywheel inertia’s moment	0.8kg/m2
Center height	125mm
Output power	7.5kw~15kw
Overall dimensions	200X90*170CM
Net weight (kg)	1000
Average trouble-tree working time of test stand	≥2500h.
