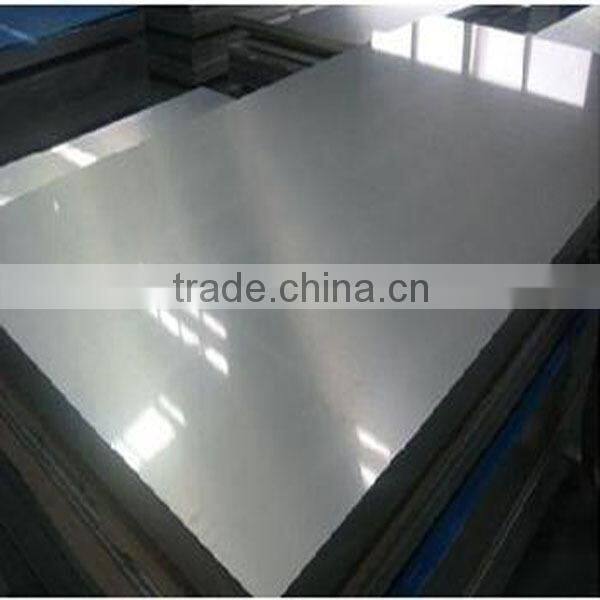

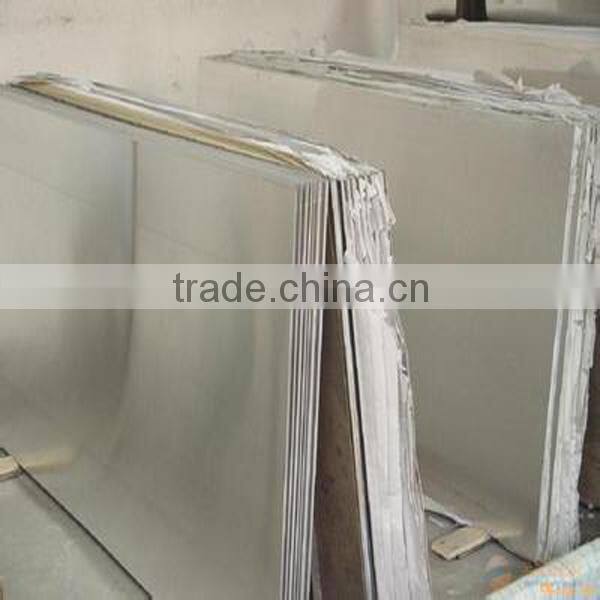

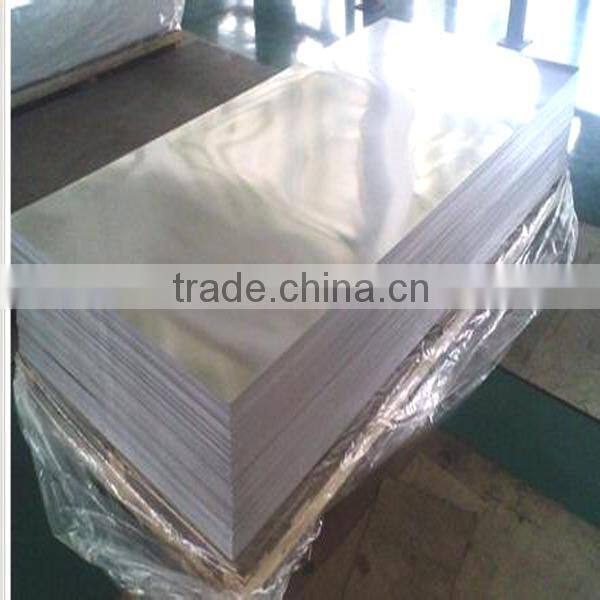

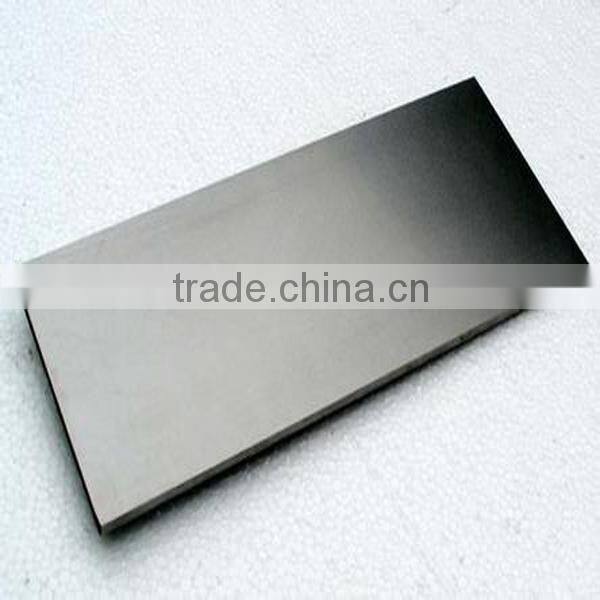

Medical Grade Titanium Titanium Plate/sheet (grade 5)gr5 for Sale

Name: Medical Grade Titanium Titanium Plate/sheet (grade 5)gr5 for Sale
Brand: Jinyang
SKU: 129895101
Availability: InStock

Shenyang Tianzhong Alloy Co., Ltd.

Negotiable MOQ: 50 Kilograms (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Liaoning, China

Application:

chemical industry, Metallurgy, marine engineering. military industry ,

Thickness:

0.5mm to 80mm

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian port or other Chinese ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Application chemical industry, Metallurgy, marine engineering. military industry ,

Thickness 0.5mm to 80mm

Width 1000mm to 2500mm

Length 2000mm to 6000mm

Technique Hot Rolled

Grade GR1

Ti (Min) 99.5%

Brand Name Jinyang

Model Number GR1-GR9,TA0-TA10,

Specifications

1) Long time use life;
2) Smooth surface and good quality;
3)Ti: 99.5%min
4) Standards:ASTM,and GB

Product info:

Product name: medical grade titanium titanium plate (grade 5)gr5 for sale

Other names: titanium plate gr5;titanium plate for sale

Product specification:

Production Name	Gr2 pure titanium sheet
Grade	Gr1Gr2Gr3
Size	0.3-60*400-30001000-4000mm
Standard	ASTM B265 ASTM F67 AMS 4911
Supply status	M
Application	chemical industry, Metallurgy, marine engineering. military industry ,medical industry, Electroplating industry, ,precision instrument,sport ,car
Feature	High corrosion resistance ,low density, good thermal stability
Packing	Wooden case as outside,plastic bag as inside,or standard export packaging
Payment terms	L/C T/T
Delivery time	10-30days according to the quantity and process of the product
Quality And test	Strict test is indispensible,because we must insure our clients get the best product

Product properties:

Grade	Supply State	Titanium sheet Thickness(mm)	Tensile strength Rm/MPa(>=)	Provision of non-proportional Extension strength Rp_0.2/MPa	Break Elongation ^aA/%(>=)
Gr1	M	0.3-25.0	240	140-310	30
Gr2	M	0.3-25.0	400	275-450	25
Gr3	M	0.3-25.0	500	380-550	20
Gr4	M	0.3-25.0	580	485-655	20
Gr5	M	0.8-2.0 2.0-5.0 5.0-10.0 10.0-25.0	895	>830	12 10 10 8
Gr6	M	0.8-1.5 >1.6-2.0 >2.0-5.0 >5.0-10.	735-930	>685	20 15 12 12
Gr7	M	0.8-10	400	275-450	20
Gr9	M	0.5-2.0 2.0-4.0 4.0-10.0	590-735	---	25 20 15
TC4ELI (Gr23)	M	0.8-25.0	860	>795	10
