Position sensor
- 100 Piece / Pieces per Month
- ShenZhen
- Credit Card
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | SOWAY | Model Number: | SDMA series |
| Usage: | Position Sensor | Theory: | Other, magnetostrictive | Output: | Other, digital,rs485,analog,modbus,profibus |
Packaging Details
Carton, polybag, epispastic paper,bubble
Product Description

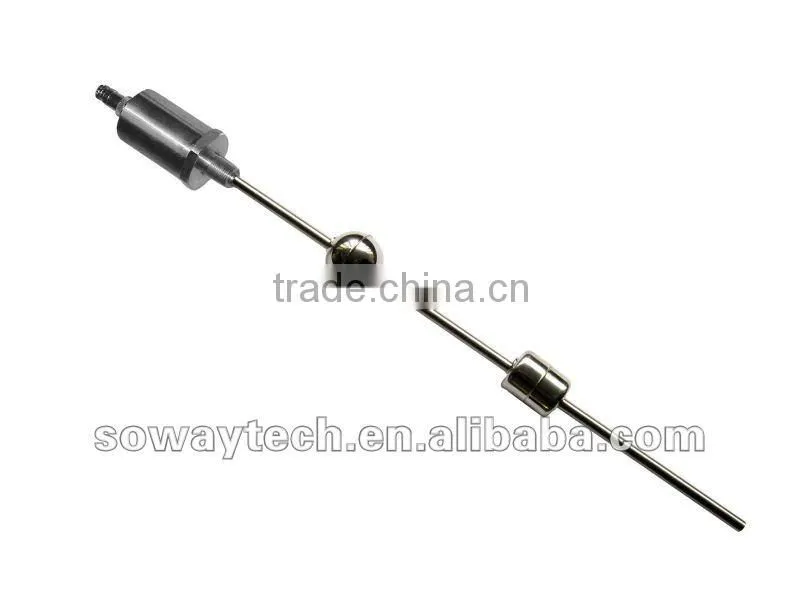

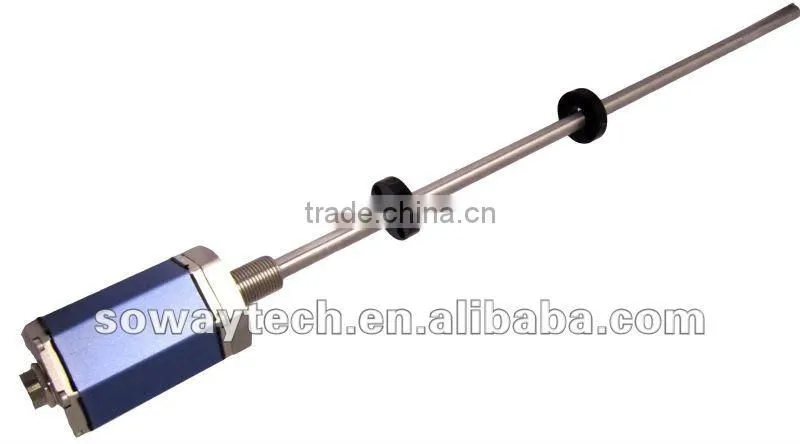

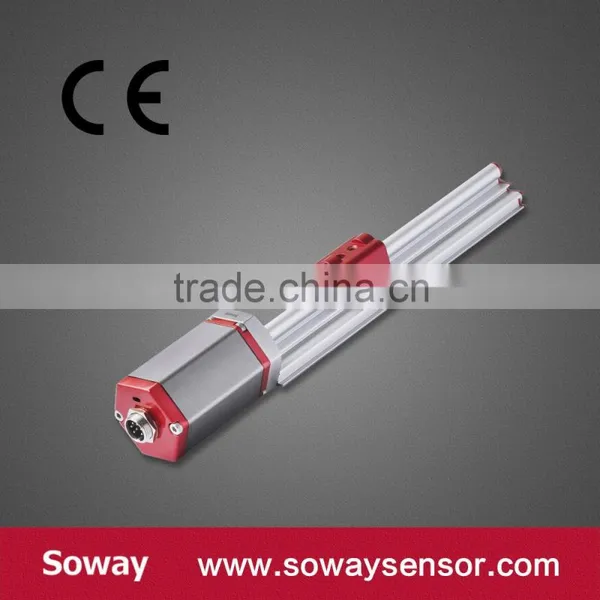

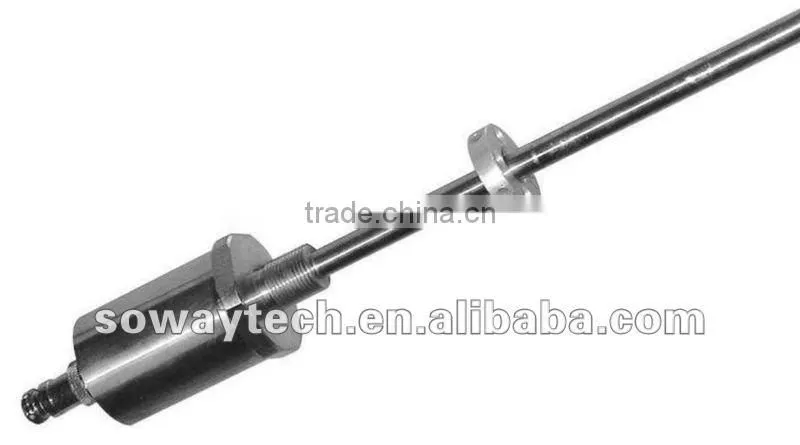

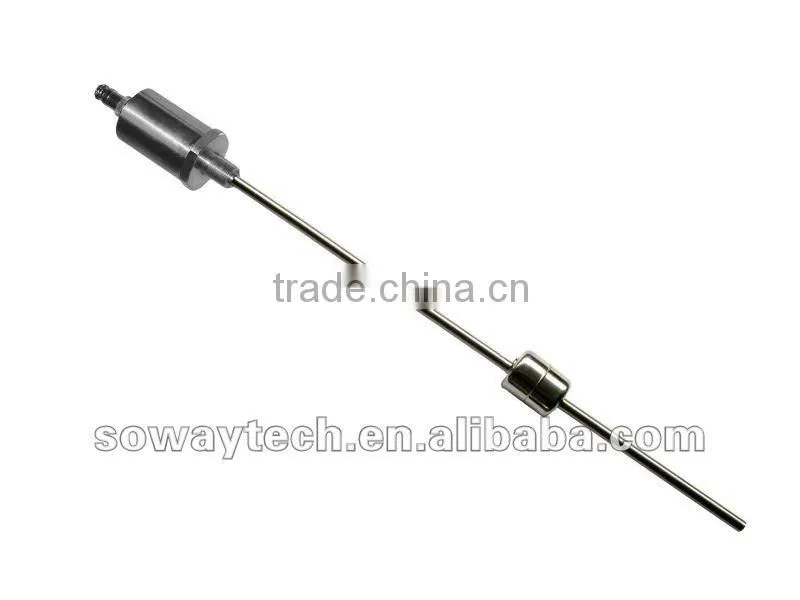

Linear position sensor
Introductions:
The magnetostrictive position sensor, base on the magnetostrictive position sensing principle,
contactless operation ensures product long service life, better adaptability to industrial environment;
absolute output, restart don't need from zero; High accuracy,high stability, the best durability and
repeatability. Variety of output signals which include the current, voltage, SSI, Modbus, Profibus etc.,
can meet any industrial applications such as petroleum, chemical industry, steel and iron, port, machinery,
food and so on. It is the best choice for high accuracy displacement control.
Features:
High accuracy
Durability, pass IP67 Explosion authentication
Simple adjustment and observation with debug software, LED detecting
Variety of output signals: current, voltage, SSI and Profibus
Non-contact operation
Easy installation and screw thread or flange
Applications:
Metallurgical industry: hard mold casting, extrusion forming and cutting
Plastics industry: injection, blown film and die casting
Port equipment: container handling
Construction: tunnel drilling, bulldozer and excavators
Specifications:
Power supply: DC 24V (±10%)
Stroke range: 80 to 5,000mm
Output signal: 4 to 20m, 0 to 10V, 0 to 5V, SSI and profile
Resolution: 2um
Linearity: ≤0.015% FS
Update time: 1ms (stroke 1,000), 2ms (stroke 3,000), 4ms (stroke 7,000)
Hysteresis: ≤0.002% FS
Operating temperature: -40 to +85°C
Protect grade: IP67
Material of electronic unit shell: die casting aluminum with plastic-sprayed surface
SOWAY TECH LIMITED:
Market leader of Lvdt sensor,Magnetostrictive linear position sensor,Liquid level controller/transmitters/switch,Capacitance position and level sensor,Ultrasonic displacement sensor/level meter for industrial,mobile and oil,gas,fuel markets.
Know more informations please visit our website:
Company Profile
Soway, oriented from the Chinese words for credibility and achievement, is given by our everlasting creed. Since the foundation of 2002, we have been committing ourselves to providing all-in-one solutions in the field of displacement and level measurement.
Considering the expertise needed in displacement and level measurement, we provide a special-care plan within the lifespan of our products.
Which is:
No more complicated, just tell us what you request, our R&D team will offer a customized solution.
No more difficult, we design, select and troubleshoot for you.
No more concerned, we closely supervise our manufacturing process to ensure reliable products and high-standard workmanship.
In cooperation with Nanjing University of Science& Technology, we build a most professional R&D team. With a more than 20-year experience right in this industry, and a manufacture base of more than 3300 square meter, EMERSON and us have been strategic partners in the area of process control.
We believe benefiting our customers is the most significant. Cost-effective and professional service make us develop commonly. We will always be your trusted partner.
Our history
June 2002, Shenzhen Soway Tech Limited was established
January 2004, we build our sensor laboratory in cooperation with Nanjing University of science and technology.
August 2005, In cooperation with TOPWORX, we recommend solutions of SOWAY + TOPWORX in the area of measurement & control.
March 2006, our sensor manufacturing base is established
January 2008, The plan of special care within the lifespan of products was proposed in the field of industrial control.
May 2009, being EMERSON's strategic partner in Asia.
July 2013, evaluated as high-tech enterprises.
