China Factory Casing Pipe,casing,ape Tube Oil Casing Pipe

Hunan Fae Heavy Industries Co., Ltd.

US$ 5,000 - 20,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

FAE

Model Number:

620-2500mm diameter

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port/Shanghai/shenzhen/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name FAE

Model Number 620-2500mm diameter

What FAE could offer?

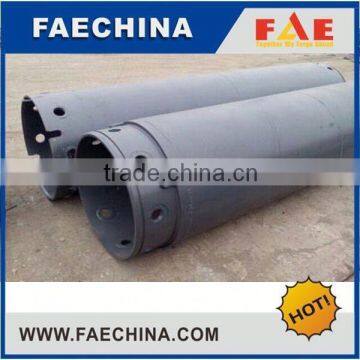

-Single wall drill casing

-Double wall drill casing

-Casing shoes

-Drive adaptor

-Casing joint

Drilling casing date list is as below:

D1/D2 mm	length(m)					a1(m)	a2(m)	a3(m)
	2	3	4	5	6
	weight(kg)
620/540	781	1125	1485	1839	2186	12	8	40
750/670	952	1378	1806	2234	2665	12	8	40
800/720	1026	1489	1949	2417	2882	12	8	40
880/800	1128	1635	2139	2650	3159	12	8	40
900/820	1154	1673	2188	2711	3231	12	8	40
1000/920	1364	1860	2443	3025	3604	12	8	40
1180/1100	1662	2433	3205	3972	4753	12	8	40
1200/1120	1704	2487	3276	4061	4851	12	8	40
1300/1220	1834	2687	3542	4394	5245	12	8	40
D1/D2 mm	length(m)					a1(m)	a2(m)	a3(m)
	2	3	4	5	6
	weight(kg)
1500/1400	2816	4041	5266	6492	7717	20	10	50
1800/1700	3394	4870	6347	7824	9301	20	10	50
Heavy duty casng avaliable as perrequest

Drilling casing joint list is as below:

D1/D2 (mm)	H (mm)	B (mm)	N (pcs)	Hole (pcs)	Bolt type	Weight (kg)
620/540	350	40	4	8	I	233
750/670	350	40	4	8	I	285
800/720	350	40	4	8	I	304
880/800	350	40	4	8	I	333
900/820	350	40	4	8	I	341
1000/920	350	40	4	8	I	381
1180/1100	350	40	4	8	I	438
1200/1120	350	40	4	8	I	450
1300/1220	350	40	4	8	I	483
1500/1400	480	50	4	12	I	950
1800/1700	480	50	4	16	I	1146
2000/1880	480	50	6	12	II	1745
2500/2380	480	50	8	16	II	2197
Heavy duty casing joint avaliable as prerequest.

Drilling casing shoes list is as below:

D(mm)	d(mm)	H(mm)	Noofteeth(pcs)	weight(kg)
620	540	586	9	280
750	670	586	10	335
800	720	586	11	368
880	800	586	13	408
900	820	586	14	419
1000	920	586	15	468
1180	1100	586	17	557
1200	1120	586	18	567
1300	1220	586	19	615
1500	1420	586	22	1023
1800	1720	586	26	1235
2000	1880	586	30	1796
2500	2380	586	38	2261
Heavy duty casng shoes avaliable as prerequest

Drilling casing drive adapter list is as below:

Casing oscilliator FRCD15 is as below:

Specifications of FAE casing oscillator type:FRCD15
casing diameter	600/800/1000/1200/1500mm
operating pressure	340bar
max torque	2100kN.m
stroke	500mm
max lifting fore	2120kN
counterweight(self-made)	20t
clamping	2100kN
rotation angle	20°
travel of casing	261mm
height of clamping collar	630mm
weight	21ton
overall length	4280mm
overal weight	2630mm
overall height	1740mm
Remarks: 1,Lifting cylinder and rotation cylinder can operate simulatneously,so that the effciency of construction is greatly enhanced. 2,Casing verticality auto-adjusting and rotation cylinder will collect the hydraulic oil from lifting clyinder when casing rotating.
