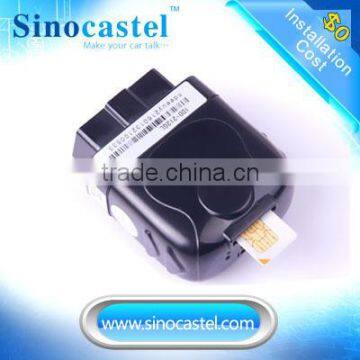

OBDII GPS Tracker With Telit Module

[      OBDII GPS tracker with telit module    ]

IDD-212GL is newly designed for OBD diagnostic and tracking purpose. It could read OBD parameters from car ECU and capture GPS

data, driving behavior via the external RFID GPS Receiver (HT-196), and then transmit to the backend server for remote

diagnostic and tracking purpose. Besides, the external HT-196 can also recognize the driver ID via RFID technology


----------------------------------------------------------   Features   ------------------------------------------------------

· Compact design, Plug-and-play,
· Compliant with all cars with OBD II
· Diagnostic trouble codes OBD code monitoring
· Car running condition parameters reading including RPM, speed, ECT, MAF, TP etc
· Real-time alarm for the hard acceleration, hard deceleration, idle engine, speeding, Quick turning, Quick Change Lane,

Collision etc
· Real time location tracking and history trace replay
· Fuel consumptions monitoring
· RFID Driver ID Checking ( optional )
· Low voltage monitoriing

----------------------------------------------------------  Parameters  ------------------------------------------------------

· GSM module: Quad band 850/900/1800/1900MHz
· Data transmission: GPRS / SMS
· GPS Chipset: UBlox NEO-6
· Position mode: GPS/AGPS
· GPS Location positioning accuracy: 5M CEP
· GPS Sensitivity: -160dBm
· Working voltage: 9V-16V DC
· Size: 63*50*28 mm ( L*W*H )
