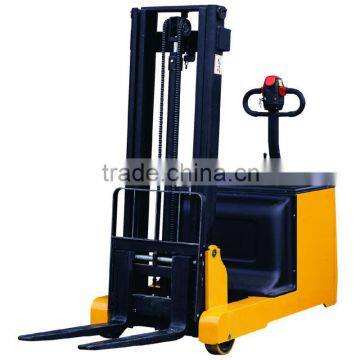

Counter Balance Weight Full Electric Forklift Truck Stacker
- 300 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
-
Mini Hand Winch Fork Lifter Truck 120KG Capacity
-
Full Electric Forklift Truck Stacker 1500KG Capacity
-
Power Reach Forklift Truck Stacker
-
Hydraulic Electric Lift Adjustable Fork Type Stacker
-
Electric Smart Tow Mover with Automatic Gripping & height adjustment
-
Electric Smart Tow Tractor 1000KG Capacity
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | NU-LIFT | Model Number | CDX0625, CDX0733, CDX1025 | |
| Dimension(L*W*H) | 2295x842x2000mm | Certification | CE | |
| Warranty | One year | After-sales Service Provided | Overseas third-party support available |
Product Description
Ideal for feeding machines or lifting to docks mezzanines where base legs could be interfere.
Forged fork for easy access.
Heavy-duty mast can been adjusted to suitable degree.
Powerful drive and power unit made in Europe.
Top quality electric control system from Curtis.
Model |
| CDDX0625 | CDDX0733 | CDDX1025 |
Capacity | (kg) | 600 | 750 | 1000 |
Max.Fork Height | (mm) | 2500 | 3300 | 2500 |
Lowered Fork Height | (mm) | 35 | 35 | 35 |
Free LiftingHeight | (mm) | 140 | 140 | 140 |
Load Centre | (mm) | 400 | 400 | 400 |
Mast tilt Angle |
| -7°~1° | -7°~1° | -7°~1° |
Fork Length | (mm) | 1000 | 1000 | 800 |
Front Wheel | (mm) | φ200×80 | φ200×80 | φ200×80 |
Driver Wheel | 1.2KW/24V,φ250×80mm | 1.2KW/24V,φ250×80mm | 1.2KW/24V,φ250×80mm | |
Power Pack | Walking | 1.2KW/24V | 1.2KW/24V | 1.2KW/24V |
Lifting | 2.0KW/24V | 2.0KW/24V | 2.0KW/24V | |
Traction Battery/Charger |
| 240Ah/24V,210kg;30A/24V | 240Ah/24V,210kg;30A/24V | 240Ah/24V,210kg;30A/24V |
Net Weight | (Kg) | 1515 | 1515 | 1515 |
Dimension | X(mm) | 920 | 920 | 920 |
X2(mm) | 245 | 245 | 245 | |
Y(mm) | 1130 | 1130 | 1130 | |
L2(mm) | 1485 | 1485 | 1485 | |
L(mm) | 2295 | 2295 | 2295 | |
M(mm) | 220-540 | 220-540 | 220-540 | |
N(mm) | 100 | 100 | 100 | |
h1(mm) | 1860 | 2260 | 1860 | |
h3(mm) | 2500 | 3300 | 2500 | |
h4(mm) | 3275 | 4075 | 3275 | |
Wa(mm) | 1375 | 1375 | 1375 | |
