Factory price bluetooth module a2dp hsp hfp module bluetooth aptx module
- 500000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card PayPal
- v4.1 low power and long distance bluetooth serial module
- ALM V3.0 Bluetooth Module (New&Original)
- Hot sale high receiving sensitivity Bluetooth smart module
- Multifunction external antenna low energy bluetooth module with good price
- Excellent bluetooth low energy module
- Factory price wholesale v4.0 bluetooth module bluetooth audio module
Product Details
D/C: | 20160301 | Package: | SMT | Model Number: | ALM-A01 |
Type: | Drive IC | Brand Name: | ALM | Place of Origin: | Guangdong, China |
Packaging Details
1 pcs Bluetooth module per blister
Product Description
Factory price bluetooth module a2dp hsp hfp module bluetooth aptx module

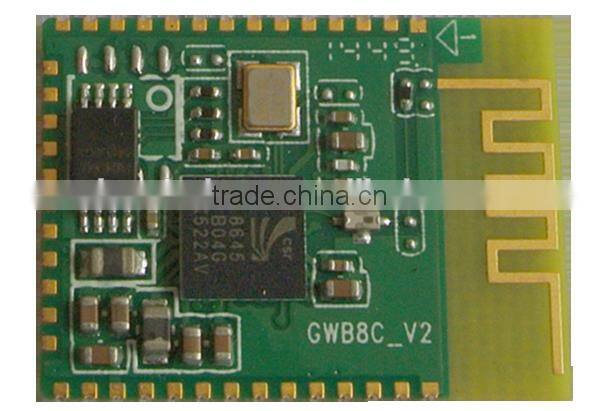

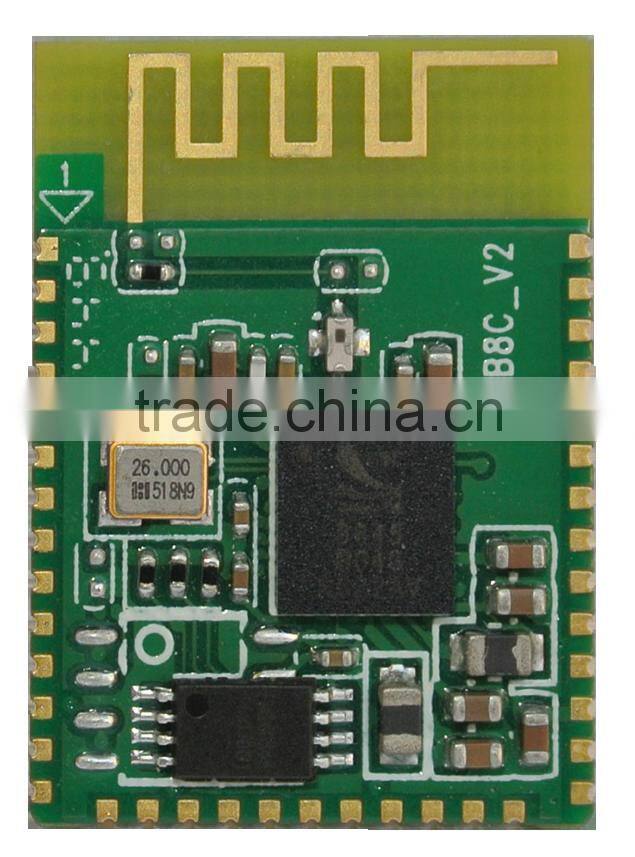

1.ALM-A01-CSR8645 is factory price bluetooth module a2dp hsp hfp module bluetooth aptx module.
2.It is built on ROM-based chip CSR8645 based on CSR BC08 Multimedia Core, fully compliant with Bluetooth core specification V4.1, with high performance stereo ADC and DAC and aptX Hi-Fi quality stereo codec.
3.It’s a short range, compact and cost effective module, able to be embedded into your electronics devices which need Bluetooth® connection, such as Home Audio, Car kit, Hands free applications.
Factory price bluetooth module a2dp hsp hfp module bluetooth aptx module
Spec Item | Range | |
General | Dimension (mm) | 17.0 x 9.0 x 3.0 mm (double side mounting) |
PCB material | FR4 4 layers | |
Soldering pin type | Double soldering pads for flat cable | |
Antenna | Antenna built-in | |
Firmware memory | ROM | |
Bluetooth | Bluetooth version | Bluetooth specification: V4.1 + EDR |
Bluetooth chipset | BlueCore® CSR8645™ | |
Profiles supported | A2DP/AVRCP/HFP/HSP | |
Connectivity | Multi-link - A2DP/HFP | 2 x host devices (A2DP/HFP) or 2 x headsets |
App connection | Support for Smart App Connectivity | |
NFC | External NFC module available (Optional) | |
RF/Wireless | Frequency range | 2.402GHz to 2.483GHz |
Transmission power | Class 2 , -4 ~ +6 dBm | |
Sensitivity | -90dBm (typical) | |
Wireless Range | >10m ( free space) | |
Audio | Microphone inputs | 2 x analog mic (stereo or dual-mono) |
Line-in | Support for stereo line-in | |
Output for speaker | Stereo differential output (upto 50mW) | |
ADC sampling | 8 KHz ~ 48 KHz, 16-bit high-quality | |
DAC sampling | 8 KHz ~ 96 KHz, 16-bit high-quality | |
Codec | Hi-Fi quality stereo codec | |
Decoder support | aptX, SBC, MP3 and AAC | |
Music Enhancements | Configurable EQ, S3D, Volume Boost | |
Noise/Echo reduction | CVC6.0 noise and echo reduction | |
HSP voice | HD voice, bi-directional noise reduction | |
Electrical | Supply Voltage - Charger | 4.75~5.75V (Recommended) |
Supply Voltage - Battery | 4.30V (Max) | |
Supply Voltage | 3.0V~3.7V (Recommended) | |
Power comsumption - StandBy | ~250uA (typical) @ACL link, Sniff 500ms, LED off | |
Power comsumption - SCO | ~12 mA (typical) @SCO link, HV3 packet | |
Power comsumption - A2DP | ~14 mA (typical) @SBC, 48KHz sampling |
Factory price bluetooth module a2dp hsp hfp module bluetooth aptx module
Feature:
1.High efficiency PCB antenna built in
2.Factory price bluetooth module a2dp hsp hfp module bluetooth aptx module
3.Support for Hi-Fi sound quality with apt-X decoder built in
4.RF transmission power level control configurable
5.Multi-band EQ tunable, S3D and Volume Boost
6.Support for voice prompt
7.Support for USB charging enumeration and Charge management
8.Multi-link with 2 source devices or 2 headsets

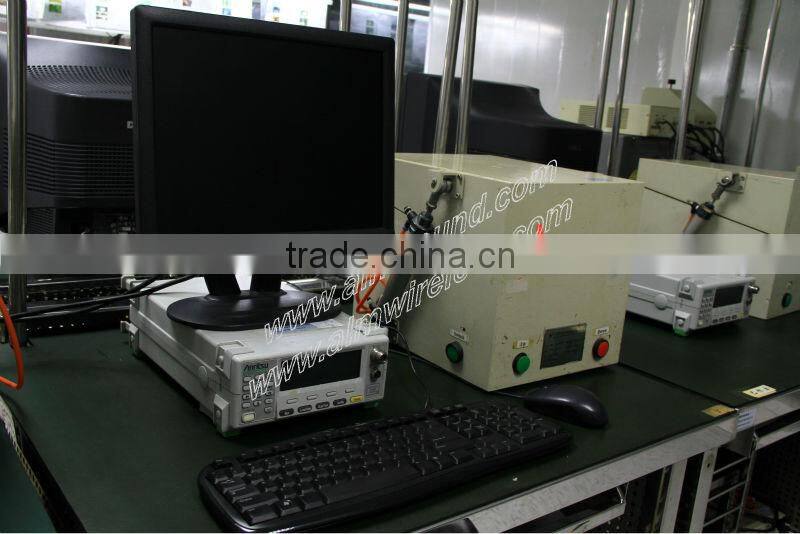

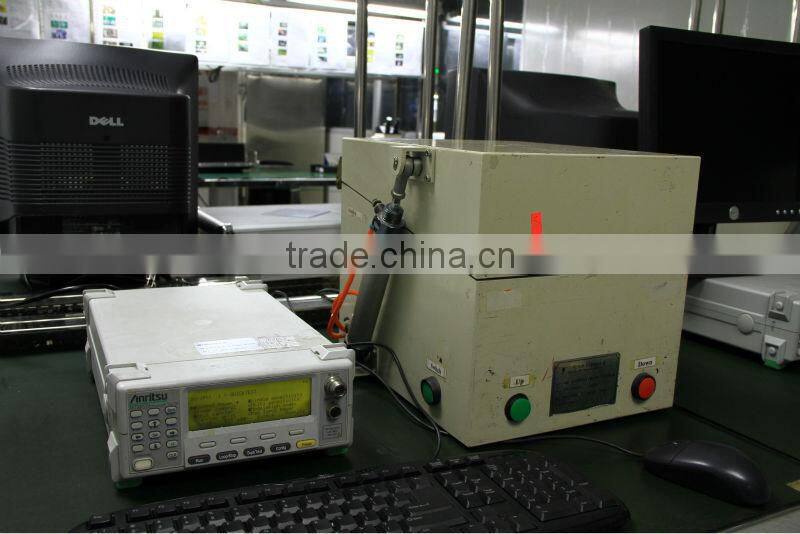

Company view
