@@0.5-5T Wall Mounted Jib Crane and Wall Traveling Jib Crane, 180/270/360 Degree Swing Jib Crane with Electric Hoist

The jib crane is a type of crane that uses a mounted arm

to lift, move and lower material. The arm, mounted either

perpendicular to or an acute angle upwards from a  colum

(pilar), may rotate along its central axis through a limited

arc or a full circl. A column mounted crane is often used

in industrial settings, like warehouse, to load and unload

material.

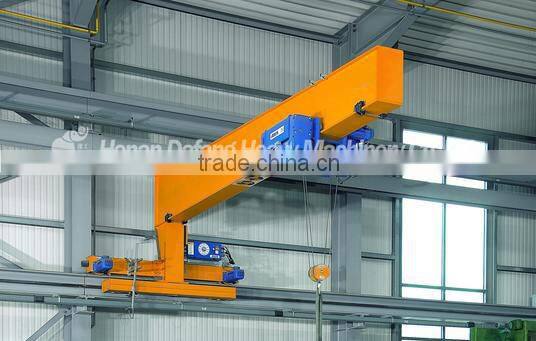

Wall mounted jib crane is easily to any substantial structure

steel building column, at any desired height. The biggest

characteristic is to save the mast structure  is simple, do

not take up the ground area. Users can at 0.25-5 tons of product within the scope of weight, choose operation mode can also choose wireless remote control.

Wall travelling jib crane are useful where overhead cranes

are not practical or feasible. They offer 360  degree floor coverage allowing unrestricted placement of machinery

and equipment. This factory installed in the slide walking

along rails cement column, can make the longitudinal

motion, and the electric hoist can complete along the

lateral movement and the arms  of vertical lifting function.

This greatly expanded work scope, more effective use

of the workshop space, use effect more ideal.

We often use two types of electric hoist in jib cranes:

1. Steel wire  rope electric hoist it can travel on the fixed H-beam,and also could be suing for single beam overhead crane, gantry, jib crane and overhang crane to lift the cargo.

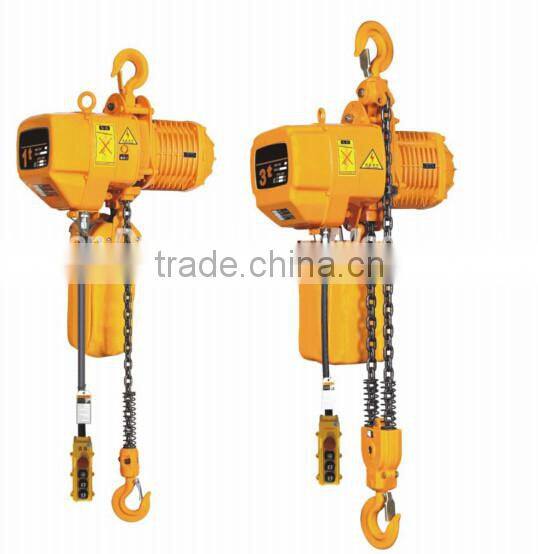

2.Electric chain hoist is a new style and small lifting equipment as well as a prefect for lifting.transmission.

To offer you a workable service, we need know the following informations:

1.  Lifting what?

2.  Capacity?

3.  The slewing speed?

4.  The traveling speed?

5.  Lifting height?

6.  Working  condition?

• Whether you can offer customized crane?

   Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized

design according to your requirement. The most important thing is that you tell us what you need.

• Whether there is professional technician assist our installation?

   Yep. We have professional installation team, who have gone to many countries to assist the installation. If you

need we send technician to your factory, please let us know in aadvance. So that we can arrange technicians.

 • Can you help us arrange the shipment?

    Yep. We have professional and independent Logistics & Document Department. They will be resbonsible for

arranging the logistics. Just conmmunicate with our sales about the destination port.

• If I need the crane very urgent, what should I do?

   Please let us know this before making order, then we can try our best shorten our production period, and

prioritize your crane's production.

• Whether you can offer the matched spare parts?

   Yep, as crane manufacturer, we offer all the related spare parts, such as motor, hoists, drums, wheels, grabs,

hooks, rails, travel beams, enclosed bus bar etc.

• How can you ensure the quality?

   Before delivery, every products will be made test, and we will send you the quality certification. You are also

warmly welcomed to come to our factory to make inspection.

• Can I visit your factory?

   Of course, you can come to make visit any time. Just let us know in advance, so that we can arrange people

 pick you up.
