Home > Products > IP bullet IR ptz camera > 2MP 10X ZOOM infrared 100m mini security dv video bullet ptz camera

2MP 10X ZOOM infrared 100m mini security dv video bullet ptz camera

FOB Price

USD $60 - $140 / Piece

50 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Guangdong, China	Brand Name:	China -HUISUN	Model Number:	HS-SCB405IP-V10-E
Type:	IP Camera	Style:	Bullet Camera	Sensor:	CMOS
Technology:	Pan / Tilt / Zoom	Special Features:	Waterproof / Weatherproof

Product Description

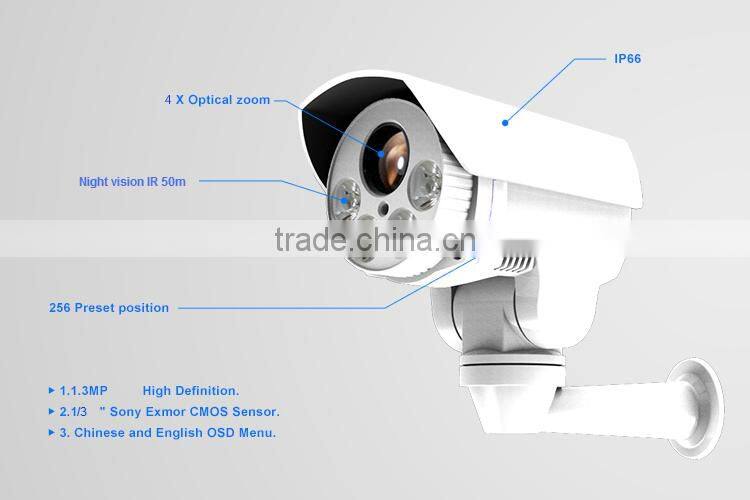

10X ZOOM infrared 100m mini security dv video bullet ptz camera

Main features:

1:First Patent of Out Cool Air Circulation to Sink the Heat Technology.(Patent No.ZL201220269676.7)

2:First Patent of Video Analysis Light-adjustment Technology .(Patent No.201110089768.7)

3: The Highly power array LEDs with IR range up to 60 meters

4: Built-in digital HD module,the image can up to 1080p.

5 Built-in camera :10X optical zoom.

6: Ambarella A5S compression program,SONY HD Senor.

7 OSD menu in Chinese and English system.

8:The working consumption of Infrared lamp can be set separately by menu,related with the optical zoom.

9:Illumination value of installation environment can be defected.

10:Intelligent temperature control design, can display real-time inside temperature of the dome camera.

11: Infrared light control software, suitable for various occasions

12: Automatic defrost and defog function( manual operation)

13: IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design .

Technical parameters:

Model	HS-SCB405IP-V10-E
Product name	infrared 100m mini security dv video bullet ptz camera
Sensor	1/3" Sony Exmor CMOS Sensor
Effective pixels	1080P(1920X1080)
Zoom	10X optical zoom
Focus lenght	5.1-51mm
Day/night mode	Automatic /multicolour /monochrome
Focus mode	Automatic/ manual
Noise-signal ratio	2D/3D-DNR
Back light compensation	Off/on
White Balance	Automatic/ manual
Electronic shutter	1/25s ~ 1/100000s
Gain control	Automatic/ manual
Min illumination	0lux (IR ON)
Wide dynamic range	Support

Network parameter

Max image	1920*1080
Double stream	1080p+D1
Heartbeat function	Support
Security mechanism	Password protection, multi user access is controlled
Communications protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP,optical), ONVIF
Double stream	Support
Interface	One network interface, one power input

Infrared lamp

Infrared lamp
IR View Distance	4 high power array LEDs with IR
IR lamp control	100 meters
IR lamp consumption	Automatic /manual / camera

Speed dome camera

Pan speed	Pan speed:0.5°~15°/s,speed is settable;pan preset speed:20°/s
Tilt speed	Tilt speed:0.5°~10°/s ,speed is settable;Tilt preset speed:20°/s
Rotation	Pan: 300° continuous rotation; Tilt: -5°~60° auto flip
Preset	256 presets ( Chinese title)
Auto Scan	8 groups, settable boundaries and scan speed
Auto Cruise	8 groups, each with 32 presets with settable time interval
Pattern Tour	4 groups, each with 500 instructions
Video analysis	Support
Auto tracking	Not Support
OSD menu	OSD menu with Chinese and English
Heat dispersion structure	Out Cool Air Circulation to Sink the Heat Technology
Supply voltage	DC12V±10% 1.5A
Levels of protection	IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design
Working temperature	-35℃-+55℃
Working humidity	<90%,No condensation
Consumption	18W Max
Weight	Kg

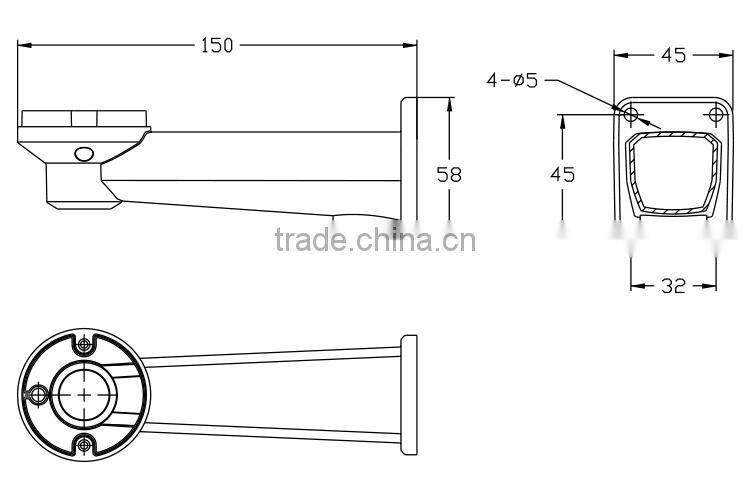

Accessory	Wall-mount bracket DC12V power,POE

Working Temp Test

Hot sales

Dimension

Real image

Application Area

Company Information

Certification

Exhibition

Packaging & Shipping

1.We have strong cooperation with UPS, DHL, FEDEX, TNT, EMS , China Air Post.

2.You can also choose your own shipping forwarder.

Our Services

We have rich OEM experience. If you are our customers, you will be offered:

1. Free repair within one year after the shipment of products from us.12 months warranty .
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
