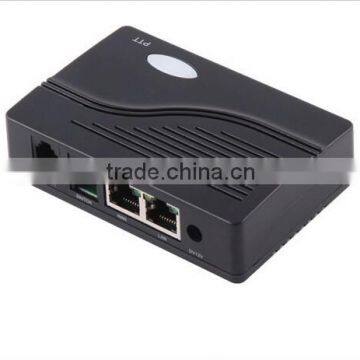

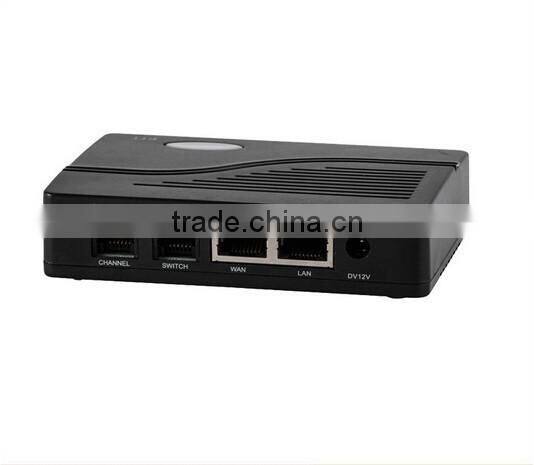

2016 RoIP102 for Voice Communication Between Voip,radio and Gsm Network,RoIP With One PTT Port Cross Network Gateway

2016 RoIP102 for voice communication between voip,radio and gsm network,RoIP with One PTT Port Cross Network Gateway

Description:

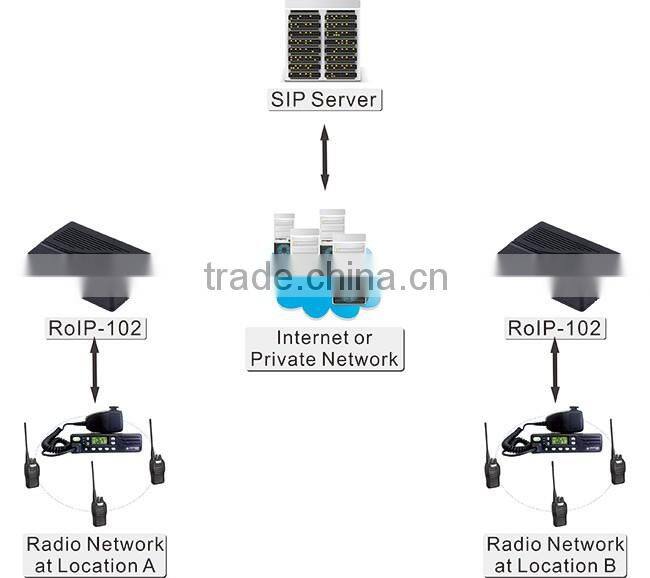

1-PPT Port Cross-Network Gateway RoIP102 is to convert the audio and PTT signals in a radio terminal into IP packets and then transmit the data via the IP networks. Generally, the radio range is limited by the restricted transmitting power, antenna sensitivity and other environmental factors. RoIP technology is developed to solve those problems and insure that the audio is transmitted in real time and the PTT signals are transmitted immediately and reliably, making the long distance voice communication across multiple networks possible.

Basic Function :

 Support a PTT port

 LEDs for Power, Ready, Status, WAN, PC, FXS
 Call Forward, Call Hold, Call Transfer
 Dial Plan
 Caller ID

Key Features:

 Open Standard VoIP Protocols (IETF SIP V2)
 Two 10/100 Ethernet for WAN / LAN connections
 Supply dynamic DNS service
 Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
 Line Echo Cancellation
 VLAN and QoS support
 NAT Transversal and Router functions
 Support IP voice stream to via a recording server
 Highly stable embedded Linux operating system in high performance ARM 9 Processor

Enhanced Features:
 Dynamic selection of codec

 Advanced jitter buffer

 Automatic traversal of NAT and firewall

 VLAN / Qos

 Router

 Echo cancellation for Speakerphone

 Comfort noise generation (CNG)

 Voice activity detection (VAD)

 Auto provisioning (requires auto provisioning server)

 On line firmware upgrade

 Multi-language support: English and Chinese

Competitive Advantage:

 Support standard SIP protocol

 Support DDNS

 Support ulaw alaw g.729 g723 etc code

 Built in Linux OS

 Peer to Peer provided
