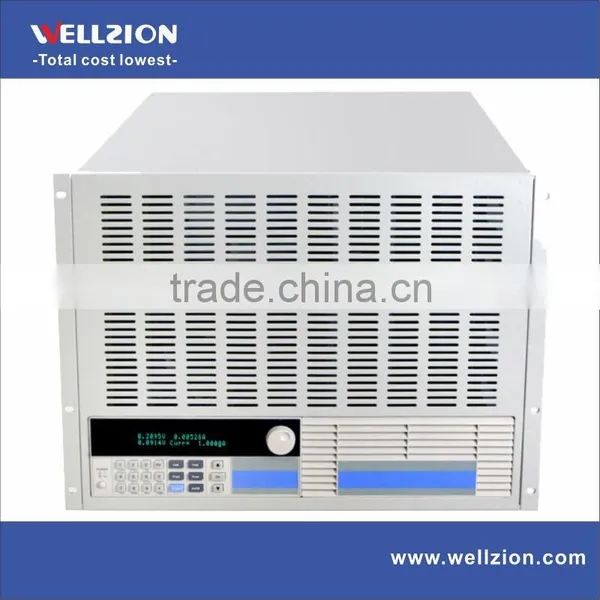

M9718,Programmable DC Electronic Load,electrical load testing,0~150V/0~240A/6000W

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port xiamen shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Model Number	M9718
Power	Other, Electronic, 6000W		Usage	Other, Battery test instruments

Product Description

Specifications

0~150V/0~240A/6000W
RS232/RS485/USB
Battery testing and short-circuit function
Supporting external trigger input and output

Features and Benefits:

Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CW
Over current, over voltage, over power, over heat, polarity reversed protection
High-luminance VFD screen with two lines& four channels display
Intelligent fan system fan will be automatically initiated according to the temperature
Soft start time setting, carrying the power supplier according to the voltage value set
Battery testing and short-circuit function
Available of dynamic testing and rising edge and falling edge setting
Supporting external trigger input and output

Application:

Production line(cell phone charger, cell phone battery, electric vehicle battery, switching power supplier, linear power supplier), research insititutes, automotive electronics, aeronautics and astronautics,ships, solar cells fule cell, etc.

Specifications

Input Rating	Power	6000W
	Current	0-240A
	Voltage	0-150V
CC Mode	Range	0-24A		0-240A
	Resolution	1mA		10mA
	Accuracy	0.05%+0.05%FS		0.1%+0.05%FS
CV Mode	Range	0.1-19.999V		0.1-150V
	Resolution	1mV		10mV
	Accuracy	0.03%+0.02%FS		0.03%+0.02%FS
CR Mode	Range	0.3Ω -10K		0.3Ω -5K
	Resolution	16 bit		16 bit
	Accuracy	0.1%+0.1%FS		0.1%+0.1%FS
CW Mode	Range	0-3600W		0-6000W
	Resolution	1mW		10mW
	Accuracy	0.1%+0.1%FS		0.1%+0.1%FS
V Measurement	Voltage	0-19.999V		0-150V
	Resolution	1mV		10mV
	Accuracy	0.015%+0.03%FS		0.015%+0.03%FS
I Measurement	Current	0-24A		0-240A
	Resolution	0.1mA		1mA
	Accuracy	0.03%+0.08%FS		0.1%+0.08%FS
W Measurement	Watt	100W		6000W
	Resolution	1mW		10mW
	Accuracy	0.1%+0.1%FS		0.1%+0.15%FS
Battery Measurement Battery Input: 0.5-120V; Max. Measurement: Capacity=999/H; Resolution=0.1mA; Time Range=1S-16HS
Dynamic Measurement Transition List: 0-25kHZ; 5A/uS; T1& T2: 60uS-999S; Accuracy: + 15% offset+10% FS
CC soft-startup Time 1 mS; 2 mS; 5mS; 10mS; 20 mS; 50 mS; 100 mS; 200 mS Accuracy: + 15% offset+10% FS
Short Circuit	Current(CC)		13.2A	132A
	Voltage(CV)		0V
	Resistance(CR)		35mΩ
Temperature	Operating		0— 40º C
	Nonoperating		– 10º C— 70º C
Dimension	WHD(mm)		489.5357538.5
Weight	Kg		70
