2 Years Guarantee Rearview Mirror + Parking Sensor + Car Camera

Specifications
[Display      Size]              4.3inch
[Display    Screen]           TFT-LCD
[Display Resolution]       480 x RGB x 272pixels
[Aspect      Ratio]            16:9
[Power Consumption]   ≤2W
[Power     Supply]            DC 12V
[Video       Input]              AV1 to VCD/DVD(defaulted), AV2 to backup camera
[Signal     System]            PAL/AUTO/NTSC
[    Brightness   ]               1900cd/m2

Product Features

Parking sensor with memory function auto activates when reversing;

Bi Bi voice warning;

4 replaceable sensors;

Repaintable;

Detect problems;

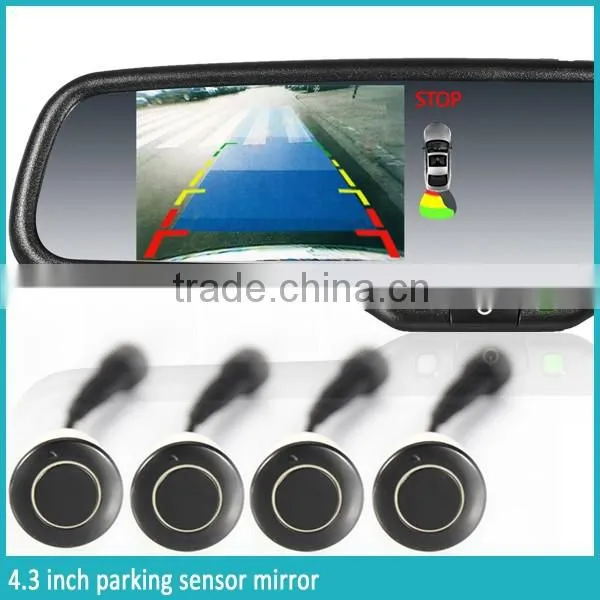

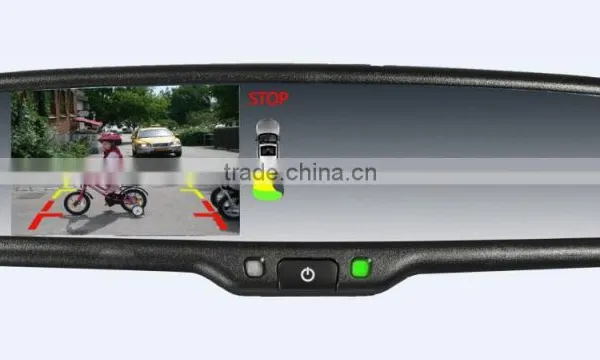

Auto display reverse camera;

Auto alarm when sensor head is damaged or disconnected;

Detecting distance is 30cm, 50cm or 70cm, to calculate spare wheel or bike in the backside into the distance;

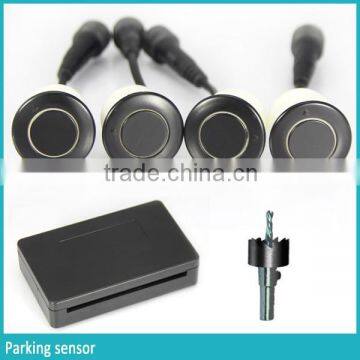

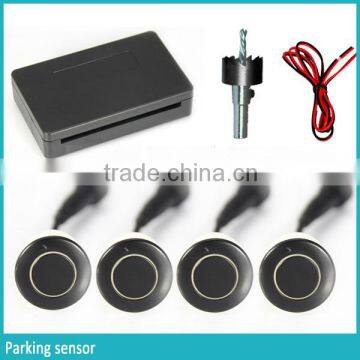

OE Grade High-quality parking sensor;

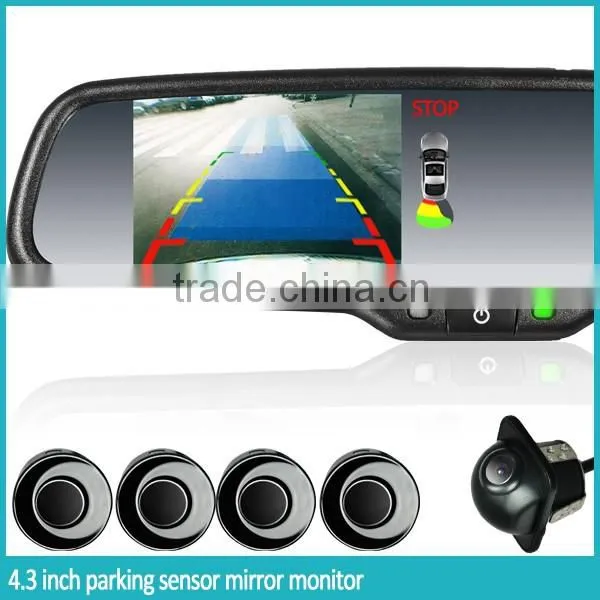

One set includes 1 mirror, 1 parking sensor(1 control box and 4 sensors) and 1 camera

Auto switching when reverse

1. Under power-on condition :When reverse gear is engaged,the system automatically switches from DVD/VCD video to backup camera video ,and when parking is completed ,it switches back automatically.

2. Under power-off condition:When reverse gear is engaged,the system automatically starts on to find the camera signal and display backup video. When parking is completed , it switches off automatically.

Installation Instruction

Use Backup Camera only

Connect Red wire to Reverse Light +, Black to Ground.

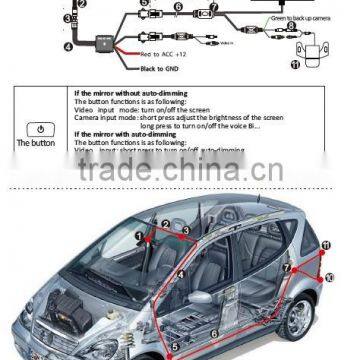

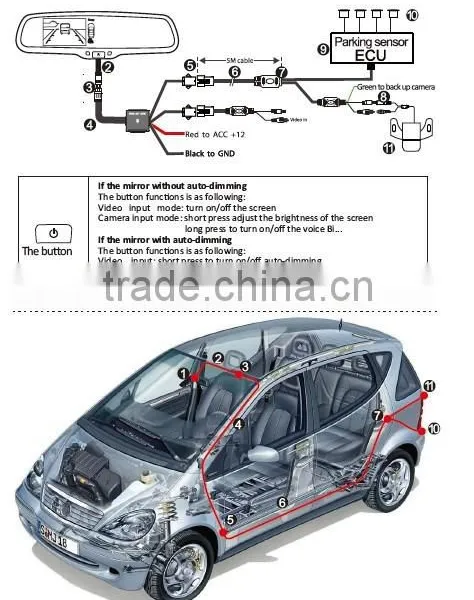

Use Backup camera and Video input ( such as DVD player)

Red wire to ACC,Power and Black wire to Ground.

    I.   Under power-on condition: when reverse gear is engaged, the system automatically switches from DVD/VCD video to backup camera video, and when out off reverse gear, it switches back automatically. Refer to wiring diagram II below.

    II.  Under power-off condition: When reverse gear is engaged, the system automatically starts on to find the camera signal and display backup video. When out off reverse gear, it switches off automatically.

    III.  PWR Button on middle of the Mirror

           1)  Camera mode ( in reverse ), this button is used to adjust the backlight of the monitor.

           2)  Video mode, this button is used to turn monitor on/off.

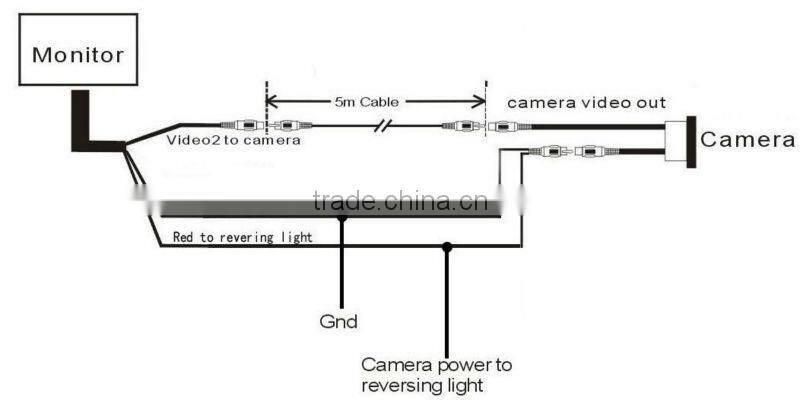

Wiring Diagram II

Warning

Please consult your local car dealers for how to remove the mirrors.

Precautions for Use of Mirror monitor

   I.    The Mirror monitor is made of glass. Do not subject it to a mechanical      shock by dropping it from a high place, etc.

   II.    Do not apply excessive force to the monitor surface or the adjoining areas since this may cause the color tone to vary.

   III.    Clean with a soft dry cloth and/or Windex only.

   IV.    Do not attempts to disassemble the mirror monitor.
