Home > Products > casing accessories > API cement style float shoe for substructure of casing string
API cement style float shoe for substructure of casing string
- 50000 Set / Sets per Month
- China port
- T/T Credit Card
You May Like
-
high quality API float collar for substructure of casing string
-
Floating shoe & collar for substructure of casing string
-
high quality casing string float collar and shoe from manufacturer
-
API Casing Float Collar and Float Shoe
-
high quality drilling float shoe for substructure of casing string
-
Forging float collar and shoe for substructure of casing string
Product Details
| Brand Name | puyang zhongshi | Model Number | ZS-FS | |
| Type | Hydraulic Support | Machine Type | Drilling Equipment | |
| Certification | API | Material | Iron | |
| Processing Type | Forging | Use | Well Drilling |
Product Description
Specifications
float shoe used for casing pipe of the oil wellhigh quality with QC
API Spec
cement and spring style
durable and reliable
Float shoe applications:
Float collar is installed on the casing and up the float shoe. Like float shoe, it also provide buoyancy to the casing string when it’s lowered, reducing the load on the drilling rig. A build-in check valve provides buoyancy to the casing string also prevents cement from re-entering the casing after it’s displaced. It’s a receptacle to cement plug.
Float shoe features :
1. All inner parts are made of easily drillable aluminum alloy.
2. The device can be connected directly to the casing of the same type.
3. Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
4. Valve seat and valve disk can effectively prevent grout from flowing back.
5. Non-rotating landing plate is available on request.
6. Either PDC or rock bit drillable.
Float shoe technical parameters:
| Size (in) | Bore O.D (in) | Bore I.D (in) | Min.Bore Parameter (in) | Thread Type | Ib (in 2) |
| 5 1/ 2” | 6” | 4 3/ 4” | 2” | 5 1/ 2” LCSG | 4351 |
| 7” | 7 5/ 8” | 6 1/ 4” | 2 3/ 8” | 7” LCSG | 3626 |
| 9 5/ 8” | 10 5/ 8” | 8 5/ 8” | 2 3/ 8” | 9 5/ 8” LCSG | 3626 |
| 13 3/ 8” | 14 3/ 8” | 12 3/ 8” | 2 3/ 8” | 13 3/ 8” LCSG | 3626 |
Float shoe API certification :

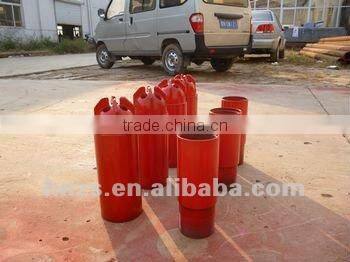

Float shoe pictures:

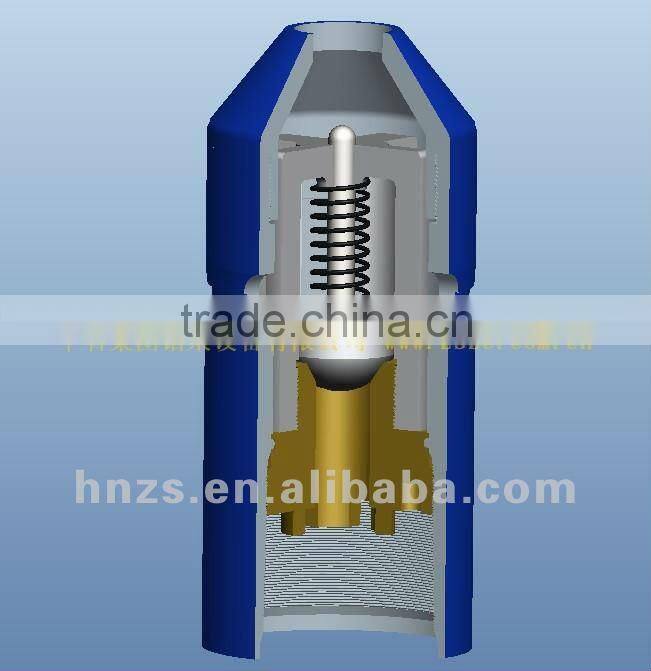

float shoe drawing :

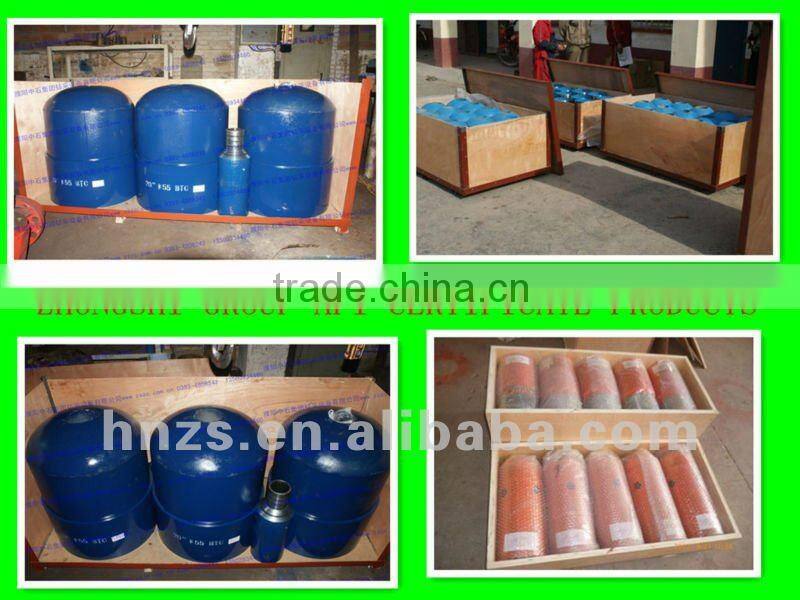

Float show packaging :
